Quick Details
-
Application:
-
Apartment
-
Design Style:
-
Modern
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
JAE WOO
-
Model Number:
-
DD-20-75
-
Product name:
-
heat resistant cabl
-
Usage:
-
House Home Floor Underfloor Heating
-
Function:
-
Floor Heating Systerm
-
Size:
-
12.5/25/50/75/100/1500meters
-
Power Supply:
-
20W/mjeters
-
Voltage:
-
220V 50Hz
-
Color:
-
Orange
-
Certifications:
-
CE ISO RoHS
Quick Details
-
Warranty:
-
3 years
-
After-sale Service:
-
Online technical support, Onsite Installation, Onsite Training, Onsite Inspection, Other
-
Project Solution Capability:
-
graphic design, 3D model design, total solution for projects, Cross Categories Consolidation, Others
-
Application:
-
Apartment
-
Design Style:
-
Modern
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
JAE WOO
-
Model Number:
-
DD-20-75
-
Product name:
-
heat resistant cabl
-
Usage:
-
House Home Floor Underfloor Heating
-
Function:
-
Floor Heating Systerm
-
Size:
-
12.5/25/50/75/100/1500meters
-
Power Supply:
-
20W/mjeters
-
Voltage:
-
220V 50Hz
-
Color:
-
Orange
-
Certifications:
-
CE ISO RoHS
Product Paramenters
|
Name
|

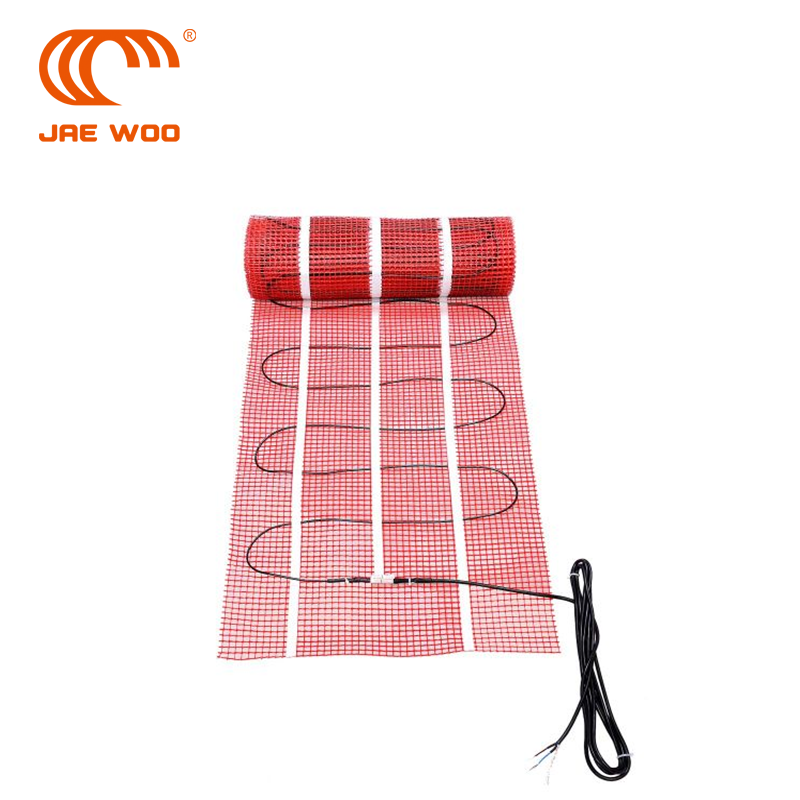

T-heating cable mat
|
|
Length
|
1/1.5/2/2.5/3/3.5㎡ as your need
|
|
Voltage
|
220V 50H/230V/as your need
|
|
Power
|
20 W/meters as your need
|
|
Cable construction
|
Twin conductor wire
|
|
cable spacing
|
60mm/80mm/100mm as your need
|
|
Screen Material
|
Alu-foil 100% /Fiberglass screen where the heating cable fixed on
|
|
Shield Material
|
Aluminum-plastic tape+tinned copper or tinned copper braid
|
|
Conductor Insulation
|
Insulation layer-FEP and TPEE,XLPE are optional
|
|
Outer Insulation (Jacket)
|
PVDF /PVC and FEP is optional
|
|
Cable diameter
|
3.0mm
|
|
Max.permissible use temperature,powered
|
115 ℃
|
|
Max.permissible use temperature,unpowered
|
120℃
|
|
Minimal installation temperature
|
-5℃
|
|
Resistance Tolerance
|
+10/-5%
|
|
Control method
|
With a thermostat
|
|
Cold lead wire
|
4 m /as your need
|
|
cable diameter
|
6.8MM+_0.2MM
|
|
Deformation strength
|
600N
|
|
Pulling strength
|
120N
|
|
Earth Type
|
100% Coverage Earth Shield
|
|
Approval
|
CE/ROHS/ISO
|
Products Description
Introduction
Underfloor Heating Mat is a good heating system.It is easy to install for a variety of floor coverings,whether concrete,wood or old tile or terrazzo.It is installed with tile adhesive and has almost no effect on the ground elevation.Heating mat can also be laid directly on the original ground without the need for other treatment of the original ground.In addition,the thin,pre-heated layer gives you the desired floor temperature in 20-30 minutes after starting the system,so this fast heating system is the best choice for home.Heating mat used for overall heating,comfortable heating,wall heating,indoor high-level demanding and the second decoration.Heating may are divided into single-conductor electric underfloor heating mat and twin conductor electric underfloor heating mat.
Nuanjia offers variety of products which can meet your multifarious demands. We adhere to the management principles of "quality first, customer first and credit-based" since the establishment of the company and always do our best to satisfy potential needs of our customers. Our company is sincerely willing to cooperate with enterprises from all over the world in order to realize a win-win situation since the trend of economic globalization has developed with anirresistible force.
Product packaging
Advantage:
Create heat tracing environment for the industrial process;
Prevent civil facilities and equipment from freezing;
Can provide precise temperature control with thermostat;
Flexible to install with a lower cost;
It is available to custom the cable based on a specific request;
|
Item
|
Size(meters)
|
Power(W)
|
Voltage(V)
|
Area(㎡）
|
|
JW-150-75
|
1*0.5m
|
75
|
220
|
0.5
|
|
JW-150-150
|
2*0.5m
|
150
|
220
|
1
|
|
JW-150-225
|
3*0.5m
|
225
|
220
|
1.2
|
|
JW150-300
|
4*0.5m
|
300
|
220
|
2
|
|
JW-DD-100
|
5*0.5m
|
375
|
220
|
2.5
|
|
JW-DD-150
|
6*0.5m
|
450
|
220
|
3
|
