Quick Details
-
Model Number:
-
200mm-800mm
-
Specification:
-
200mm-800mm
-
Length:
-
6m
-
Thickness:
-
1.5-5
-
Standard:
-
GB/T-13663-2000
-
Diameter:
-
200mm-800mm
-
Connection:
-
butt fusion joint mize
-
Fittings:
-
rubber ring
-
Color:
-
Black,etc
-
Impact strength:
-
no more than 10%
-
Working life:
-
more than 50 years
-
Usage:
-
waste water, drainage
-
Certificates:
-
BV certified,ISO9001,14001
-
Ring Stiffness:
-
S1(4KN) ,S2(8KN)
-
Payment:
-
T/T
Quick Details
-
Processing Service:
-
Moulding, Cutting
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Dongli and Amazon
-
Model Number:
-
200mm-800mm
-
Specification:
-
200mm-800mm
-
Length:
-
6m
-
Thickness:
-
1.5-5
-
Standard:
-
GB/T-13663-2000
-
Diameter:
-
200mm-800mm
-
Connection:
-
butt fusion joint mize
-
Fittings:
-
rubber ring
-
Color:
-
Black,etc
-
Impact strength:
-
no more than 10%
-
Working life:
-
more than 50 years
-
Usage:
-
waste water, drainage
-
Certificates:
-
BV certified,ISO9001,14001
-
Ring Stiffness:
-
S1(4KN) ,S2(8KN)
-
Payment:
-
T/T

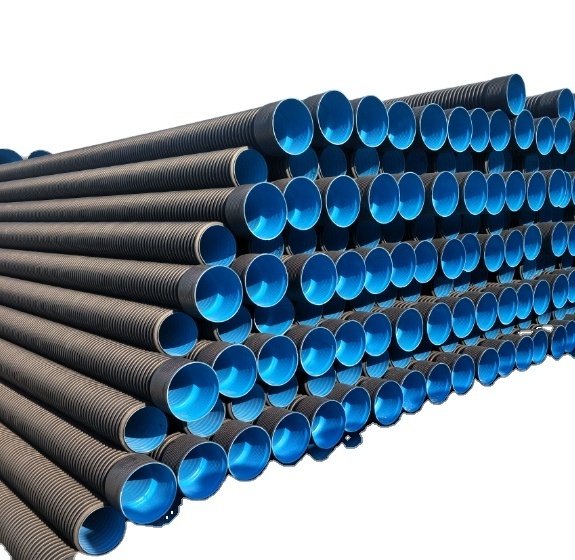

HDPE plastic corrugated pipe
Specifications
Material: High Density Polyethylene(HDPE)
Application:drain and Sleeves
Ring Stiffness: SN4 and SN8
Appearance
This pipe shall have a full circular cross section, with an outer corrugated pipe wall and a smooth inner wall.
specification
| Specification DN/ID | Mean inside diameter(mm) | Nominal outside diameter(mm) | Depth of bellmouth | inside diameter of bellmouth |
| 225 | 225 | 260 | 152 | 264 |
| 300 | 300 | 348 | 190 | 351 |
| 400 | 400 | 480 | 255 | 473 |
| 500 | 500 | 605 | 240 | 575 |
| 600 | 600 | 725 | 250 | 691 |
| 800 | 800 | 970 | 260 | 963 |
Properties
|
Item |
Typical Value |
|
Ring Stiffness (KN/m2) SN4 |
≥ 4 |
|
SN8 |
≥ 8 |
|
TIR |
≤ 10 |
|
Ring Flexibility |
Smooth and evasive, no recurvation, no rupture, no withdraw in two walls |
|
Drying Test Chamber |
No air bubble, no delamination, no dehicence |
|
Creep Proportion |
≤ 4 |
|
Leakage Test |
No rupture, no leakage |
Performance characteristics
1.unique structure, high strength, compressive resistance and impact.
2. the innerwall is smooth, large discharge.
3. convenient connection, joint sealing, no leakage.
4. light weight, convenient construction, reduce the cost .
5.polyethylene belongs to hydrocarbon polymers, molecular polarity, resistance to acid and alkali 6. raw materials for green environmental protection material, non-toxic, no corrosion, no scale, recyclable .
7. Cold endurance, The pipes do not break up to -70 degree.
8. the soil under the condition is good without foundation.
Application:
1.for sewerage and raining drainage in residential district;
2.cable sleeve for post and telecommunications communication;
3.for Municipal project raining and sewerage drainage;
4.irrigation for farm etc
