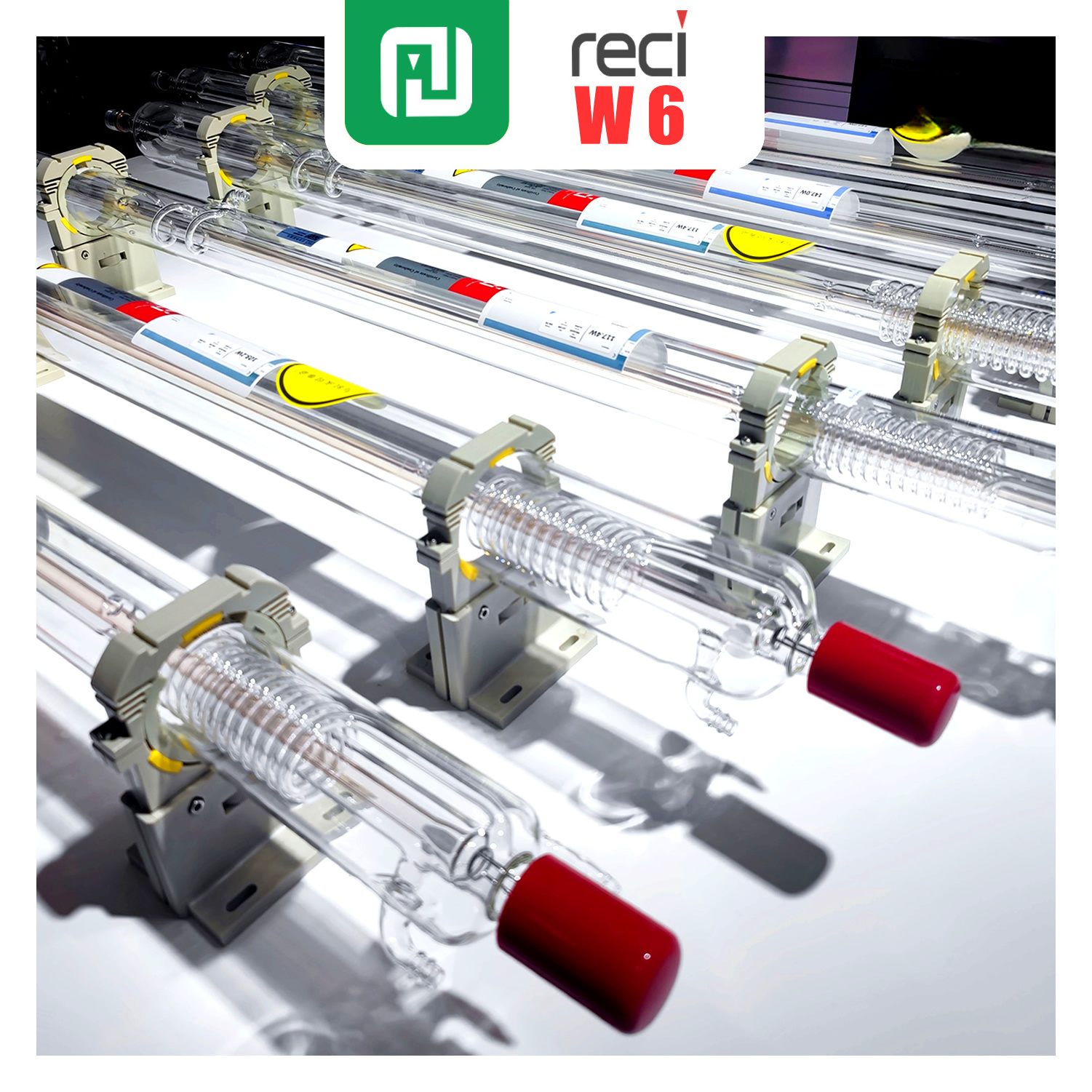

Top Brand W6 Tube RECI Laser 150W CO2 Glass Tube 130 Watt Of Laser Cutting Engraving Machine Spare Parts

FOB Reference Price: Get Latest Price

≥10 Sets

US $540

≥20 Sets

US $535

≥50 Sets

US $530

≥100 Sets

US $525

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Brand Name:: RECI

Weight (KG):: 22 KG

Brand:: RECI

Wavelength:: 1064nm/10.6um

Material:: Glass

Product Model:: W6

Certificate:: CE, ROHS, TUV, FCC, EMC

Used for:: Cutting, Marking, Engraving

Function:: Non-metal Material Cutting and Engraving

Length:: 1700MM

Output Power:: 130W, 140W, 150W, 160W

Quick Details

Place of Origin:: Zhejiang, China

Spare Parts Type:: CO2 LASER TUBE, co2 laser glass tube

Marketing Type:: Long Service Life, High Reliability, High Power

Brand Name:: RECI

Weight (KG):: 22 KG

Brand:: RECI

Wavelength:: 1064nm/10.6um

Material:: Glass

Product Model:: W6

Certificate:: CE, ROHS, TUV, FCC, EMC

Used for:: Cutting, Marking, Engraving

Function:: Non-metal Material Cutting and Engraving

Length:: 1700MM

Output Power:: 130W, 140W, 150W, 160W

Video Description

Product Description

Model	W1	W2	W4	W6	W8
Rated Output Power(W)	75	90	100	130	150
Max Output Power(W)	90	100	130	160	180
Length(mm)	1050	1200	1400	1650	1850
Diameter(mm)	80				65	65	65	90
Catalyst	Yes					Yes
Warranty Period(days)	540				300	300	300	360

Authorization

Why Choose Us

Certifications

Packing & Shipping

FAQ

Q: Why choose RECI Laser Tube?

A: 1. High wall-plug efficiency, 2. High power with Excellent beam quality, 3. High reliability, long service life, maintenance free, 4. All fiber structure, compact, rugged package, 5. Multiple anti-high-reflection.

Q: What are the features of Reci CO2 laser tube?

A: 1. Long warranty: 12-18 months warranty, most can be used around 3 years, actually. 2. Technical advantages: high product qualification rate, and the independent processing capacity for core components. 3. Standardization: The production process is highly automated. 4. Beam quality: Beam quality of all laser tube can reach more than 95% of TEM00.The product consistency is good. 5. Advantages of Optical Resonators: The lithographic discharge tube for spatial filtering has been recently developed, which can improve power and product consistency. With the technology launched, it expands the leading position in the industry.

Q: How can I clean when the laser tube lens polluted? A: Blow the lens surface obliquely with balloon. If the above no effect, user needs to remove the lens and use a cotton ball with a little alcohol to rotate the lens. No need too much alcohol, but the glue layer of the adhesive lens cannot be touched in case of gas inside escaping. The laser cannot be used till alcohol evaporating. Q: How can I store the laser tubes when I do not use it? A: The cooling liquid must run out in storage or transportation; The output must be covered with a dust-proof plastic wrap; The storage temperature should be kept between 2-40°C and the humidity between 10-60%. Q: How would I know this tube compatible with my machine? A: We suggest to refer the Accessories List of your machine first, to confirm the DIAMETER, LENGTH and POWER of the tube. Size fits, compatible. Our Professional technicians are waiting to answer all your questions! Just talk to us!! Q: How does the product come packaged? A: Tightly embrace the laser tube with high-density sponge. Double foam rubber, Double boxed. Q: How to insulate the high-voltage end? A: 1)After putting on the silicone tube, pour some glues inside. 2) Wrap a few more turns with electrical tape. Q: Beam does not exit Tube? A: It may because of some incorrect operating of the laser machine. Feel free to let us know, and get some professional support.
