Quick Details
-
CNC or Not:
-
Normal
-
Automatic Grade:
-
Semi-automatic
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Machine Type:
-
C9372 High quality disc brake drum lathe used for car
-
Max. swing over bed:
-
450mm
-
motor power:
-
0.7kw
-
Spindle rotation speed:
-
70-320 rpm
-
Max disc thinkness:
-
73mm
-
Brake drum depth:
-
229mm
-
Feed speed:
-
0-0.66
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Lu Young
-
Weight (KG):
-
300
-
CNC or Not:
-
Normal
-
Automatic Grade:
-
Semi-automatic
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Machine Type:
-
C9372 High quality disc brake drum lathe used for car
-
Max. swing over bed:
-
450mm
-
motor power:
-
0.7kw
-
Spindle rotation speed:
-
70-320 rpm
-
Max disc thinkness:
-
73mm
-
Brake drum depth:
-
229mm
-
Feed speed:
-
0-0.66

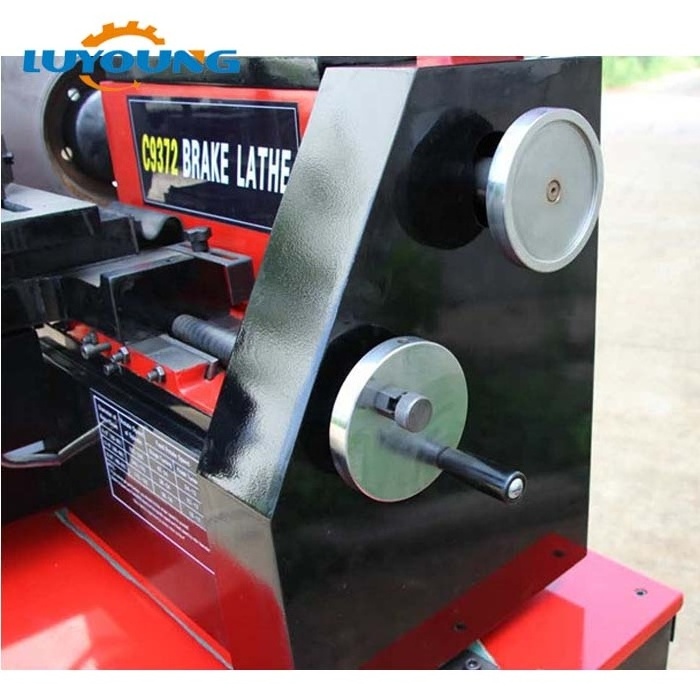

C9372 High quality disc brake drum lathe used for car
C9372 High quality disc brake drum lathe used for car is vehicle maintenance, brake drum brake disc manufacturers and transportation companies for boring processing, manufacturing cars, tractors brake drums and brake discs metal cutting machine tools.
Specification of C9372 High quality disc brake drum lathe used for car :
| C9372 High quality disc brake drum lathe used for car | |
| Brake disc dia | Φ102-Φ610mm |
| Max Disc Thickness | 73mm |
| Brake drum dia | Φ160-Φ715mm |
| Brake drum depth | 229mm |
| Spindle weight(apacity) | 69KG |
| Spindle speed(stepless) | 70-320rpm |
| Feed speed | 0-0.66 |
| Main motor | 220V/110V 50/60HZ 0.6KW |
| Machine size | 1080×700×1450 |
| G weight/N.W | 300/245 KG |
| Packing size | 930×670×870 |
The feature of
C9372 High quality disc brake drum lathe used for car:
1.
machine rigidity.
Set transmission, the base in one, increasing the rigidity of the machine.
2.
Large processing range car field
. Effective stroke covering all car brake disc brake drum, especially for larger brake discs BMW, Mercedes, Audi and other car
3.
The full-featured operating system.
Can lift and maneuver fast forward and reverse passes, improve work efficiency, centralized control button station, easy to operate.
4.
The more practic
al. With respect to the hundreds of thousands of luxury cars, brakes, brake drums, repair than replacement costs incurred very few, but also allow these owners to accept.
