Quick Details
-
Filling Accuracy:
-
±0.5%
-
Voltage:
-
220V/380V
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
LIENM
-
Dimension(L*W*H):
-
1000*1000*1400mm
-
Weight:
-
360KG
-
Product name:
-
Perfume filling crimping machine
-
Filling volume:
-
15-1000ml
-
Air pressure:
-
0.5MPA
-
Capacity:
-
20-50 Bottle/min
-
Function:
-
Automatic air cleaning, filling and capping
-
Usage:
-
Filling liquid and perfume
-
Material:
-
304 & 316 Stainless steel
-
Feature:
-
Fixed liquid level, vacuum filling
-
Market:
-
Around the world
-
Suitable Bottle Diameter:
-
≤75mm
-
After Warranty Service:
-
Video technical support, Online support, Spare parts, Field maintenance and repair service
-
Local Service Location:
-
None
-
After-sales Service Provided:
-
Online support, Video technical support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service
-
Marketing Type:
-
New Product 2020
-
Certification:
-
CE ISO9001
Quick Details
-
Machinery Capacity:
-
4000BPH
-
Packaging Material:
-
Plastic, Glass
-
Filling Material:
-
Water, Oil, Perfume
-
Filling Accuracy:
-
±0.5%
-
Voltage:
-
220V/380V
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
LIENM
-
Dimension(L*W*H):
-
1000*1000*1400mm
-
Weight:
-
360KG
-
Product name:
-
Perfume filling crimping machine
-
Filling volume:
-
15-1000ml
-
Air pressure:
-
0.5MPA
-
Capacity:
-
20-50 Bottle/min
-
Function:
-
Automatic air cleaning, filling and capping
-
Usage:
-
Filling liquid and perfume
-
Material:
-
304 & 316 Stainless steel
-
Feature:
-
Fixed liquid level, vacuum filling
-
Market:
-
Around the world
-
Suitable Bottle Diameter:
-
≤75mm
-
After Warranty Service:
-
Video technical support, Online support, Spare parts, Field maintenance and repair service
-
Local Service Location:
-
None
-
After-sales Service Provided:
-
Online support, Video technical support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service
-
Marketing Type:
-
New Product 2020
-
Certification:
-
CE ISO9001
Product Description
Instruction：
LM-XSGX-B3

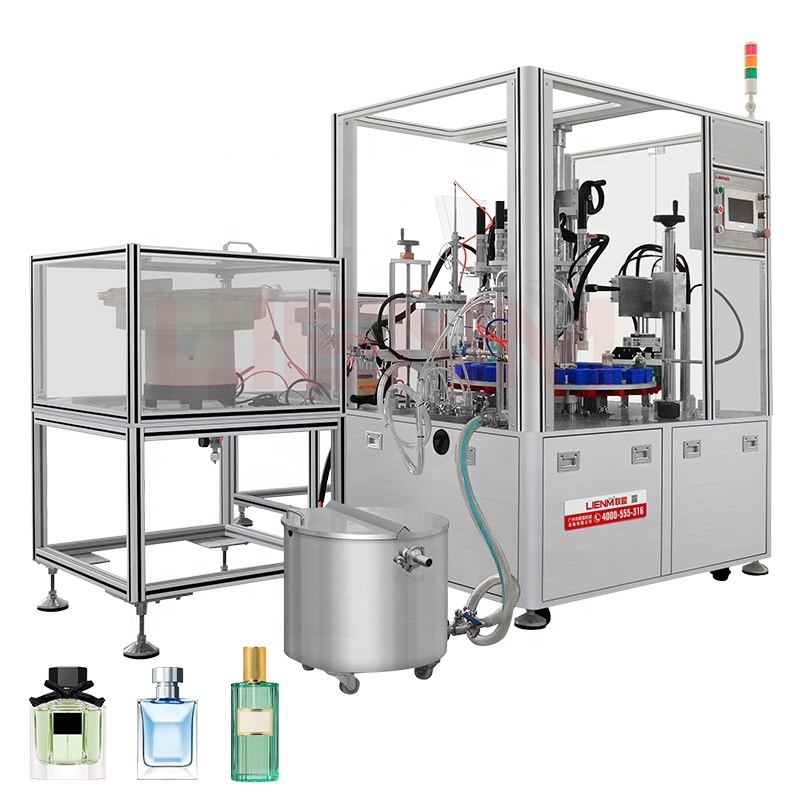

Rotary 4 Heads Perfume Cleaning & Filling & Crimping & collaring & automatic to put bottles on conveyor & Automatic cap feeder Machine is used for filling perfume, floral water, and other water based materials. It is a rotary type machine with 4 filling heads, which could fill 4 bottles at the same time, it is efficient and labour-saving.
It consisted of automatic air cleaning, filling, pump pisitioning, crimping & collaring device, &automatic to put bottles on conveyor&Automatic cap feeder. Main function as these are automatic by the system, only need manual put bottles. Molds are adjustable for different kind of bottles.
The rotary filling heads are working with lifting and descending support device, these process are running automatically. It is also equipped with a recycle system, after reaching set volume the overflowed liquid will be recycled inside the container, which saving time and labor tensity.
Technical Parameter
|
Production Capacity
|
30-50bottles/min
|
|
Filling Volume
|
10-150ml (can be customized)
|
|
Application of Bottle Height
|
50-180mm
|
|
Power
|
220V/380V、0.75kw、3phase
|
|
Air pressure
|
5-7kgf/cm²
|
|
Machine Dimension
|
2008mm * 2100mm * 1800mm
|
|
Working station
|
20 With adjustable molds
|
Features:
Small Bottle Filling and Capping Machine for Perfume Production Line Suitable for all kinds of liquid.(We also have similar machine for lotion and cream.It adopts timing filling by peristaltic pump, with accurate filling.Double program cleaning,filling, collaring, capping and outlet. (double heads)The filling part is easy to assemble and disassemble, with easy adjustment.Suitable for any spiral type caps, with adjustable capping system,with static air cleaning function.
Company Introduction
Recommend Products
FAQ
1. Why choose us?
1.1- We have over 30 years experience on machinery making .
1.2- Our factory is located in Guangzhou and another one is in Jiangsu province,more than 200 workers in our factory .
1.3- We sale good quality machines around the world with good service and got high reputation from our customer.
1.1- We have over 30 years experience on machinery making .
1.2- Our factory is located in Guangzhou and another one is in Jiangsu province,more than 200 workers in our factory .
1.3- We sale good quality machines around the world with good service and got high reputation from our customer.
Welcome to visit our factory!
2.Can you customize machine ?
As a professional machinery manufacturer for more than 30 years,we have skilled OEM technique.
3. What about after sale service?
Engineer will go to buyer's factory to install, test machines, and train buyer's staff how to operate, maintain machines.
When machine has problem, We will solve basic questions by telephone, email, whatsapp, wechat and video call.
Customers showing us the picture or video of the problem. If the problem can be easily solved , we will send you solution by video or pictures. If the problem out of your control, we will arrange engineer to your factory.
4.How about warranty and spare parts?
We provide 1 year warranty and enough spare parts for the machine,and most of the parts can be found in local market also,also you can buy from us if all the parts that over than 1 year warranty.
5. How can you control the quality and delivery?
All our machines will be tested before packaging. Teaching video and packing pictures will be sent to you for checking,we promise that our wooden packaging is strong enough and safety for long delivery .
6. What about the delivery time?
In stock machine:1-7days
Usually 7-60 Working days(depened on products).
2.Can you customize machine ?
As a professional machinery manufacturer for more than 30 years,we have skilled OEM technique.
3. What about after sale service?
Engineer will go to buyer's factory to install, test machines, and train buyer's staff how to operate, maintain machines.
When machine has problem, We will solve basic questions by telephone, email, whatsapp, wechat and video call.
Customers showing us the picture or video of the problem. If the problem can be easily solved , we will send you solution by video or pictures. If the problem out of your control, we will arrange engineer to your factory.
4.How about warranty and spare parts?
We provide 1 year warranty and enough spare parts for the machine,and most of the parts can be found in local market also,also you can buy from us if all the parts that over than 1 year warranty.
5. How can you control the quality and delivery?
All our machines will be tested before packaging. Teaching video and packing pictures will be sent to you for checking,we promise that our wooden packaging is strong enough and safety for long delivery .
6. What about the delivery time?
In stock machine:1-7days
Usually 7-60 Working days(depened on products).
