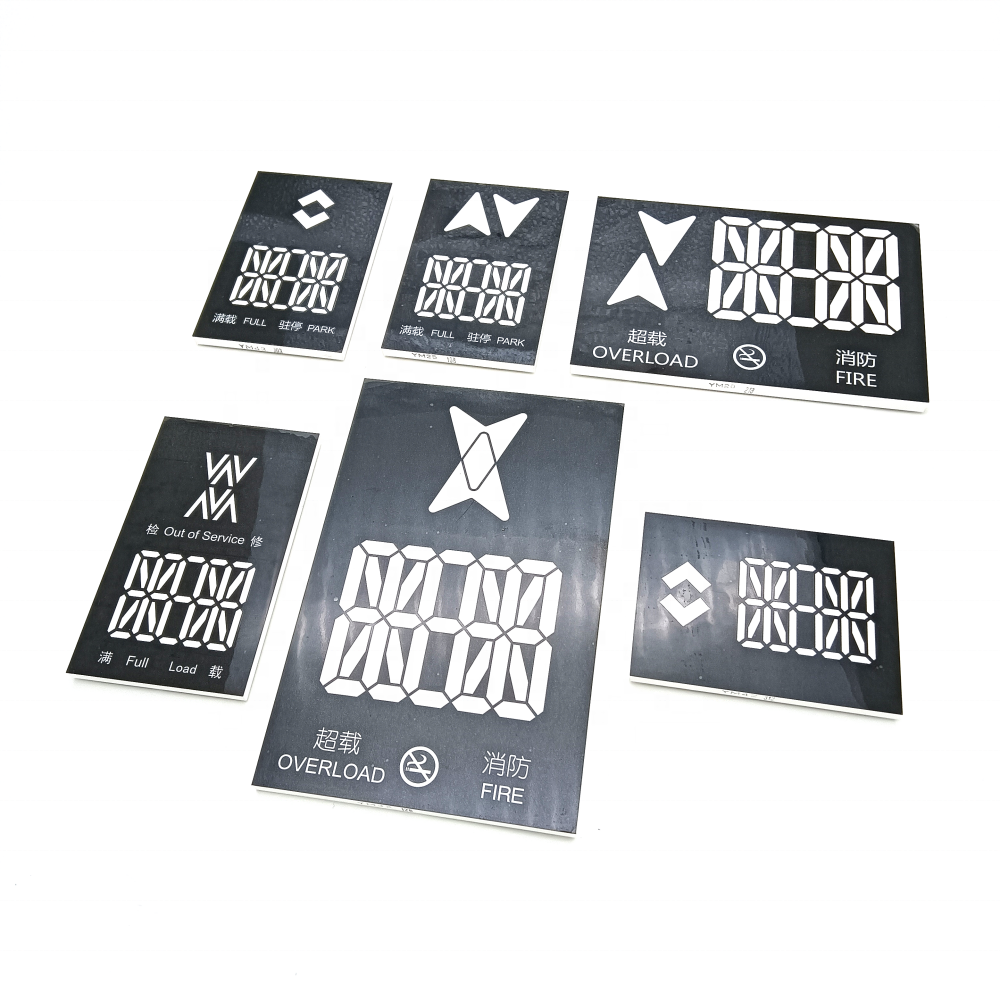

Quick Details
-
Color:
-
red/amber/yellow/green/blue/white
-
Panel Size:
-
Customized, Customized
-
Media Available:
-
Other
-
Place of Origin:
-
Zhejiang, China
-
Model Number:
-
WDXXXX
-
Display Function:
-
Graphics
-
Segment colo:
-
Red,Green,Yellow,Blue,White
-
Surface Color:
-
Black/Grey
-
Warranty:
-
3 Years
-
Certificate:
-
ROHS/REACH/ISO
-
Operating temperature:
-
-35℃~+85℃
-
Digit Size:
-
0.25"-8"
-
Covered film style:
-
Transparent/Light black
-
Screen Dimension:
-
50mm*100mm
Quick Details
-
Application:
-
Indoor, Home appliance/instrument
-
Type:
-
LED
-
Brand Name:
-
Sangao
-
Color:
-
red/amber/yellow/green/blue/white
-
Panel Size:
-
Customized, Customized
-
Media Available:
-
Other
-
Place of Origin:
-
Zhejiang, China
-
Model Number:
-
WDXXXX
-
Display Function:
-
Graphics
-
Segment colo:
-
Red,Green,Yellow,Blue,White
-
Surface Color:
-
Black/Grey
-
Warranty:
-
3 Years
-
Certificate:
-
ROHS/REACH/ISO
-
Operating temperature:
-
-35℃~+85℃
-
Digit Size:
-
0.25"-8"
-
Covered film style:
-
Transparent/Light black
-
Screen Dimension:
-
50mm*100mm
Color:
| Led color | Blue | Green | Yellow-Green | Yellow | Amber | Orange | Red | White |
| Wave length(nm) | 465-475 | 515-525 | 565-575 | 585-595 | 600-610 | 620-630 | 635-650 | / |
| Led chip | GaN | GaP | GaP | GaAsP | GaAsP | GaAsP | AlInGaP | GaN+Phosphor |
Absolute Max Rating (25℃, take yellow-green led as sample):
| Symbol | Parameter | Value | Unit |
| PAD | Power Dissipation per segment | 60 | mW |
| VR | Reverse Volrage per segment | 5 | V |
| IAF | Continuous Forward Current per segment | 25 | mA |
| IPF | Peak Forward Vurrent per segment (Duty-0.1, 1KHz) | 80 | mA |
| / | Derating Linear from 25℃ per segment | 0.33 | mA/℃ |
| Topr | Operating Temperature Range | -35~+85 | ℃ |
| Tstg | Storage Temperature Range | -35~+85 | ℃ |
ABOUT US
Hangzhou Sangao Optoelectronics technology CO,.Ltd was founded in 2003 with rich experience in the led field. The company can supply led segments display, customized led display, dot matrix display, light bar, led backlight and light guide panel. Sangao have set up R&D center to develop new series led components and led application products to satisfy customers’ changing requirements. Advanced production line with latest facilities such as ASM automatic die bonding machine, automatic wiring machine, automatic laminator bring Sangao high efficiency and excellent quality. Sangao also had implemented comprehensive quality control methods to cover every aspect of production process. We hope to become your business partner in the near future.
