As professional manufacturer of various printing machines,
Hao’an Printing Machinery Technology Co. LTD
was originally found in 2003. After dedicated development in the recent 20 years, our products have covered variety of various automatic screen printing machines, visual servo screen printing machines, semi-automatic screen printing machines, manual screen printing devices, automatic pad printing machines, semi-automatic pad printing machines, various hot stamping machines and necessary peripheral consumables, which are applicable to various industrial printing of cosmetics, medical supplies, glass, wine bottles,auto parts etc in various geometrical profile as cylinder, flat shape, taper, polygon. Our products widely exported to Europe, the United States, South Korea, the middle east, Souh Africa, Mexico and other countries and regions.
- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
HAO AN
-
Dimensions(L*W*H):
-
(L8700*W2000*H2100mm)
-
Weight:
-
6000 KG
-
Max. Print Area:
-
diameter 20-100 mm,Length:20-270mm
-
Warranty of core components:
-
8-10 Year
-
Machine Type:
-
Automatic 4-color screen printing machine
-
Printable cylindrical diameter:
-
Diameter: 20~100 mm
-
Printable height:
-
20~270 mm
-
Printing speed:
-
3000~3600PCS/hour
-
Air preasure requirement:
-
5~8 bar
-
Power supply:
-
380V 3phase
-
Rated power:
-
7.5 KW + 18 KW
-
Net weight:
-
6000 KG
-
Outline dimension:
-
(L8700*W2000*H2100mm)
-
Dimension of wooden packing case:
-
(L2900*W2300*H2250mm) + (L2300*W2300*H2250mm)X3
Quick Details
-
Condition:
-
New
-
Color & Page:
-
Dual color
-
Voltage:
-
380V AC
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
HAO AN
-
Dimensions(L*W*H):
-
(L8700*W2000*H2100mm)
-
Weight:
-
6000 KG
-
Max. Print Area:
-
diameter 20-100 mm,Length:20-270mm
-
Warranty of core components:
-
8-10 Year
-
Machine Type:
-
Automatic 4-color screen printing machine
-
Printable cylindrical diameter:
-
Diameter: 20~100 mm
-
Printable height:
-
20~270 mm
-
Printing speed:
-
3000~3600PCS/hour
-
Air preasure requirement:
-
5~8 bar
-
Power supply:
-
380V 3phase
-
Rated power:
-
7.5 KW + 18 KW
-
Net weight:
-
6000 KG
-
Outline dimension:
-
(L8700*W2000*H2100mm)
-
Dimension of wooden packing case:
-
(L2900*W2300*H2250mm) + (L2300*W2300*H2250mm)X3

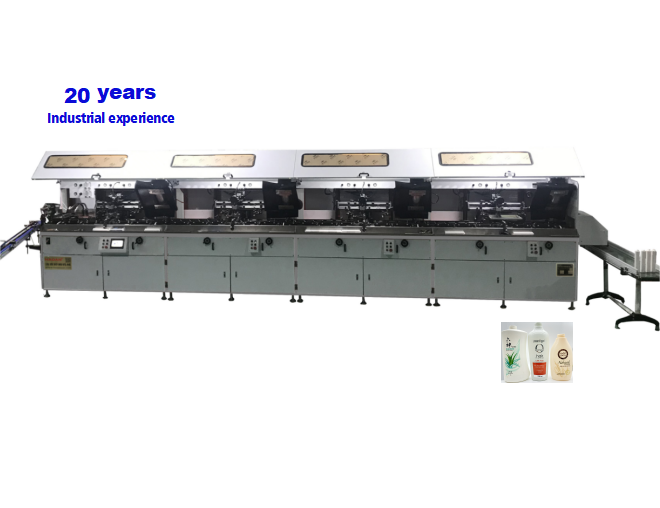

HA-767-4 Automatic 4-Color Screen Printing Machine
Able to perfect your favorite printing is our everlasting pursuit,
your trust is always our motility
Serial functional features of the printing machine
Automatic Feeding
Flame Treatment
Printing
Printing
UV Curing system
Automatic ejection
Printed samples from customers
Major electric components of the printing machine
Panasonic PLC
Schneider Electric Components
OMRON Frequency Transformer
OMRON Electric Connector
Basic configuration & functional parameters of the printing machine
|
Major functional items
|
|
|
|
Functional item 1
|
Inclined platform feeding conveyor belt is available.
|
|
|
Functional item 2
|
Automatic direction recognition of component & automatic direction correction.
|
|
|
Functional item 3
|
Electrostatic dust removal treatment system
|
|
|
Functional item 4
|
Flame treatment or Plasma treatment (You may choose one)
|
|
|
Functional item 5
|
Continuously variable speed control system
|
|
|
Functional item 6
|
No bottle no printing action automatic monitoring system
(Sensitive photoelectric sensor is introduced for functional necessity herein, it can sense black bottles even transparent bottles)
|
|
|
Functional item 7
|
UV Curing system
|
|
|
Functional item 8
|
Cylinder automatic feeding system
|
|
|
Major functional components of the machine
|
|
|
|
Splitter
|
Taiwan Deshi, & Sankyo
|
|
|
Main motor of the machine
|
SITI (Italy) / Reducer
|
|
|
Programmable Logic controller (PLC)
|
Panasonic or OMRON
|
|
|
Touch Screen
|
Taiwan Weilun
|
|
|
Photoelectric switch
|
KEYENCE (Japan), or SICK (Germany)
|
|
|
Button switch
|
IDEC (Japan)
|
|
|
Contactor
|
SCHNEIDER or Fujifilm
|
|
|
Electric relay
|
OMRON
|
|
|
Frequency transformer
|
OMRON frequency transformer
|
|
|
UV curing system
|
HONOVIA or LED (You may choose)
|
|
|
Pneumatic components
|
SMC (Japan)
|
|
|
Taiwan Shangying guide rail
|
special component imported from Taiwan
|
|
|
Japanese NSK Bearing
|
High quality component imported from japan.
|
|
|
Technologic Parameters
|
|
|
|
Printable cylindrical diameter
|
Diameter: 20 mm~100 mm
|
|
|
If flat bottles
|
R20 mm ~ R180 mm
|
|
|
Printable height/vertical length of cylindrical materials
|
20mm~280mm
|
|
|
Max Printing Speed
|
3000~3600 PCS/Hour (Mostly depends on your distinctive products)
|
|
|
Power supply
|
AC380V 3Phase 50HZ/60HZ
|
|
|
Rated power
|
Main motor 7.5 KW, the secondary motor: 18 KW
|
|
|
Air pressure requirements
|
5~8 bar
|
|
|
Outline dimensions of the machine
|
(L8700*W2000*H2100mm)
|
|
|
Dimension of wooden packing case
|
(L2900*W2300*H2250mm) + (L2300*W2300*H2250mm)X3
|
|
|
Net weight
|
(Machine: 400 KG) + (Wooden case: 900 KG)
|
|
Introduction of the Printer Manufacturer
Manufacturer Profile:
Our workshop A:
Hao'an has an experienced production and technology research & development team, which includes engineering design, precision CNC process, Precision CNC lathe, integrative assembly, debugging team, sale team & service after sales.
Our workshop B:
Hao'an
is always adhering to six core concepts of technology-basis, high efficiency, high quality, energy saving, integrity, win-win cooperation so as to offer one-stop technological solutions of printing machines for customers. As dedicated manufacturer, we can quickly react to design and produce your favorite printing machines according to your distinctive requirements.
Process operation of typical printing machine in our workshop
Our printers are always ready for perfect printing of products as below
Daily Chemicals
Wine Bottles & Cosmetics
Beverage & Cups
Medical Tubes & Plastic Toys & Metal Parts
Are your products in category like these?
If yes,
show me your distinctive products necessary to be printed.
Able to perfect your favorite printing is our everlasting pursuit, you win I win thereby.
Able to perfect your favorite printing is our everlasting pursuit, you win I win thereby.
Hao'an on Exhibition
Hao'an Packing & Delivery
Covered with PE Film and Fixed in Strong Export Wooden Cases
