Quick Details
-
Brand Name:
-
Wemax
-
Weight:
-
1200 KG
-
Core Components:
-
machine
-
Max . Splitting Force:
-
30Ton
-
Max. Log Dia.:
-
500mm
-
Max. Log Length:
-
500mm
-
Max. Splitting Lift Height:
-
230mm(hydraulic)
-
Engine Power:
-
24HP LIFAN Engine, Electric start
-
Hydraulic Feeding:
-
1800x390mm (L* W)
-
Firewood Conveyor:
-
Standard Length: 3.5m, Belt width:300mm
-
Cycle Time:
-
6s
Quick Details
-
Applicable Industries:
-
Forestry Machinery
-
Use:
-
Split wood
-
Place of Origin:
-
SHN
-
Brand Name:
-
Wemax
-
Weight:
-
1200 KG
-
Core Components:
-
machine
-
Max . Splitting Force:
-
30Ton
-
Max. Log Dia.:
-
500mm
-
Max. Log Length:
-
500mm
-
Max. Splitting Lift Height:
-
230mm(hydraulic)
-
Engine Power:
-
24HP LIFAN Engine, Electric start
-
Hydraulic Feeding:
-
1800x390mm (L* W)
-
Firewood Conveyor:
-
Standard Length: 3.5m, Belt width:300mm
-
Cycle Time:
-
6s
Product Description

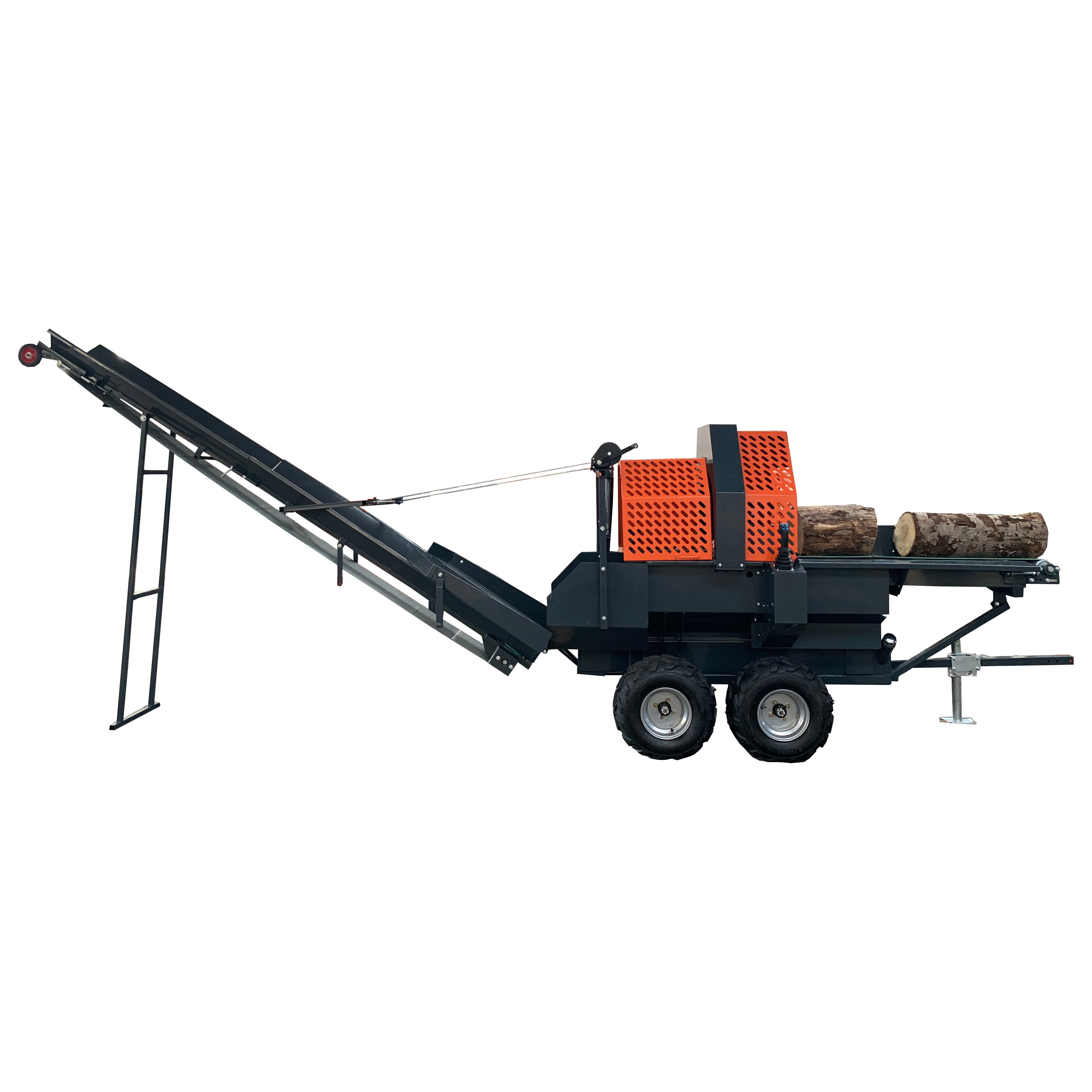

Automatic Firewood Processor RM500
Specification
RM500 JOY
|
Model
|
RM500 JOY
|
|
Max . Splitting Force
|
30Ton
|
|
Max. Log Dia.
|
500mm
|
|
Max. Log Length
|
500mm
|
|
Max. Splitting Lift Height
|
230mm(hydraulic)
|
|
Engine Power
|
24HP LIFAN Engine, Electric start
Optional: GX630 HONDA, Electric start |
|
Hydraulic Feeding
|
1800x390mm (L* W)
|
|
Firewood Conveyor
|
Standard Length: 3.5m, Belt width:300mm
|
|
Control Type
|
Joystick
|
|
Cycle Time
|
6s
|
|
Cylinder Size
|
4.5 inch
|
|
Saw Working Length
|
24”
|
|
Saw Speed
|
10000rpm
|
|
Hydraulic Pump Flow
|
50L/min
|
|
Hydraulic Tank Capacity
|
40L
|
|
Knife
|
6 way
|
|
Traction
|
50mm ball
|
|
Wheel
|
22x11-10 ATV(4pcs)
|
|
Weight
|
1000kg
|
|
40” Container
|
10pcs
|
RM500 ECO
|
Model
|
RM500 ECO
|
|
Max . Splitting Force
|
30Ton
|
|
Max. Log Dia.
|
500mm
|
|
Max. Log Length
|
500mm
|
|
Max. Splitting Lift Height
|
230mm(hydraulic)
|
|
Engine Power
|
27HP Gasoline engine(LIFAN) Electric starting
Optional: 15KW electric motor(380V ,50HZ,3P) |
|
Hydraulic Feeding
|
1800x390mm (L* W)
|
|
Firewood Conveyor
|
Standard Length: 3.5m, Belt width:300mm
|
|
Control Type
|
MANUAL
|
|
Cycle Time
|
6s
|
|
Cylinder Size
|
4.5 inch
|
|
Saw chain size
|
0.404”
|
|
Saw Working Length
|
24”
|
|
Chainsaw automatic lubrication system
|
Yes
|
|
Saw Speed
|
10000rpm
|
|
Hydraulic Pump Flow
|
50L/min
|
|
Hydraulic Tank Capacity
|
40L
|
|
Knife
|
6 way
|
|
Traction
|
50mm ball
|
|
Wheel
|
22x11-10 ATV(4pcs)
|
|
Weight
|
1000kg
|
|
40” Container
|
14pcs
|
