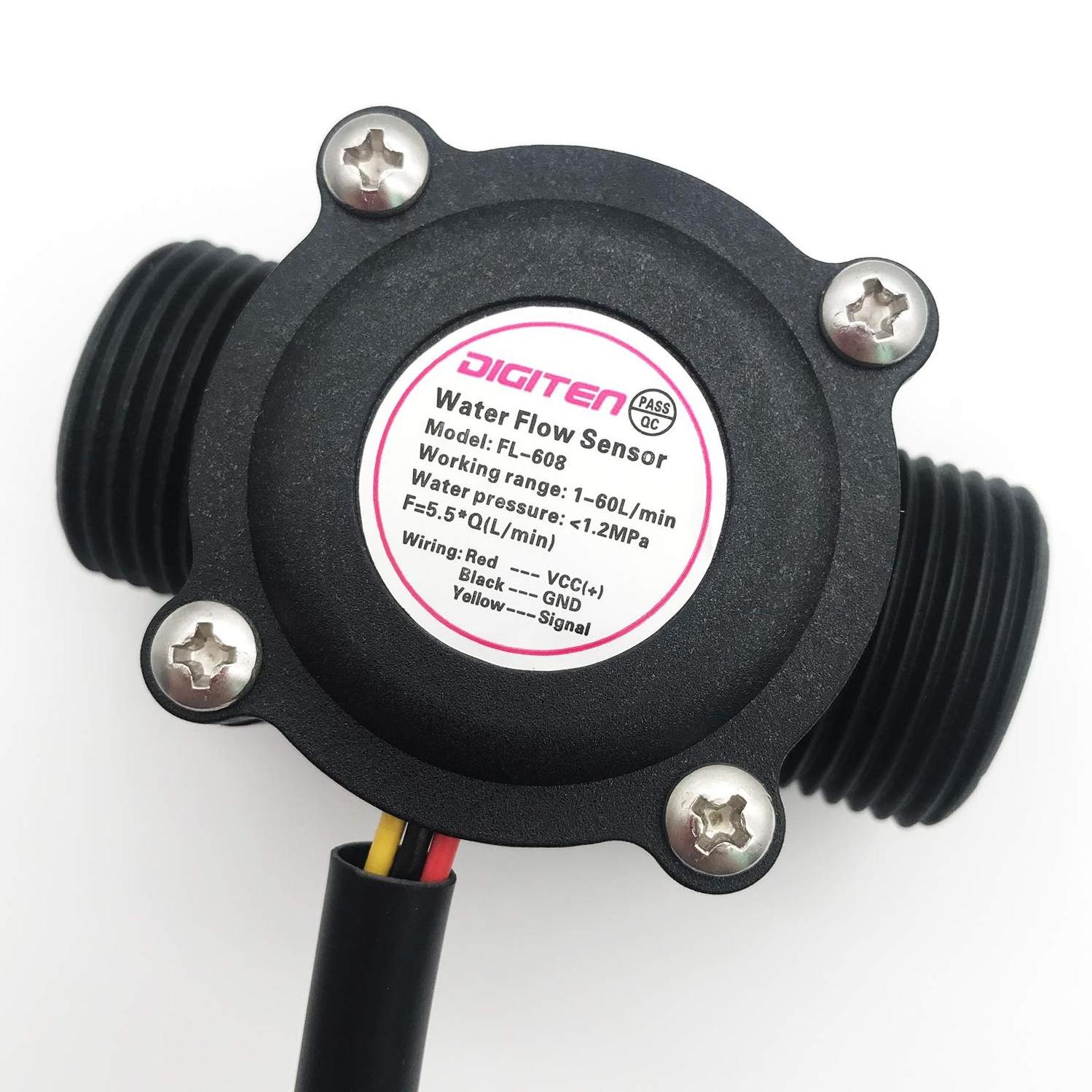

1. The Water Flow Sensor is light, nimble outline, small size and easy to install. The bearings used in the rotating part.
2. There is an integrated magnetic hall effect sensor that outputs an electrical pulse with every revolution. The hall effect sensor is sealed from the water pipe and allows the sensor to stay safe and dry.
3. Three wire connection: Red for positive, black for negative, yellow for pulse signal.
- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
DIGITEN
-
Model Number:
-
FL-608
-
Size:
-
BSP G3/4"
-
Product Name:
-
Water Flow Sensor
-
Working Voltage:
-
DC 3-24 V
-
Maximum Current:
-
15mA(DC 5V)
-
Load Capacity:
-
≤10mA(DC 5V)
-
Flow Range:
-
1-60L/min
-
Frequency:
-
F=5.5 * Q (L/min)
-
Water Pressure:
-
≤1.75Mpa
-
Operating Temp:
-
≤80℃
-
Operating Humidity:
-
35%~90%RH
Quick Details
-
Type:
-
Flow Sensors
-
Warranty:
-
1 Year
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
DIGITEN
-
Model Number:
-
FL-608
-
Size:
-
BSP G3/4"
-
Product Name:
-
Water Flow Sensor
-
Working Voltage:
-
DC 3-24 V
-
Maximum Current:
-
15mA(DC 5V)
-
Load Capacity:
-
≤10mA(DC 5V)
-
Flow Range:
-
1-60L/min
-
Frequency:
-
F=5.5 * Q (L/min)
-
Water Pressure:
-
≤1.75Mpa
-
Operating Temp:
-
≤80℃
-
Operating Humidity:
-
35%~90%RH
Products Description
Feature
Note
1. Installed in accordance with flow direction in the product, otherwise there is no signal output.
2. A filter screen must be installed at the inlet of the sensor, in order to avoid particles and debris entering the sensor.
3. The thread is BSP, if used for NPT, need thread seal tape.
2. A filter screen must be installed at the inlet of the sensor, in order to avoid particles and debris entering the sensor.
3. The thread is BSP, if used for NPT, need thread seal tape.
