Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
SGSK
-
Model Number:
-
ZAY7032G
-
Voltage:
-
220V, 380V, 410V
-
Dimension(L*W*H):
-
770*880*1860
-
Power (kW):
-
0.75
-
Weight (KG):
-
365 KG
-
Product name:
-
mill drill driller machine ZAY7032G deep hole drilling machine
-
Model:
-
ZAY7032G
-
Motor Power:
-
0.75
-
Max drilling capacity:
-
32mm
-
Table size:
-
800*240
-
Spindle taper:
-
MT3/R8
-
Spindle travel:
-
130
-
Max face milling dia:
-
63
-
Max end milling dia:
-
20
-
Motor:
-
0.75
Quick Details
-
type:
-
Drilling & Milling Machine
-
Max. Drilling Dia. (mm):
-
32
-
Range of Spindle Speed(r.p.m):
-
80 - 1250 r.p.m
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
SGSK
-
Model Number:
-
ZAY7032G
-
Voltage:
-
220V, 380V, 410V
-
Dimension(L*W*H):
-
770*880*1860
-
Power (kW):
-
0.75
-
Weight (KG):
-
365 KG
-
Product name:
-
mill drill driller machine ZAY7032G deep hole drilling machine
-
Model:
-
ZAY7032G
-
Motor Power:
-
0.75
-
Max drilling capacity:
-
32mm
-
Table size:
-
800*240
-
Spindle taper:
-
MT3/R8
-
Spindle travel:
-
130
-
Max face milling dia:
-
63
-
Max end milling dia:
-
20
-
Motor:
-
0.75

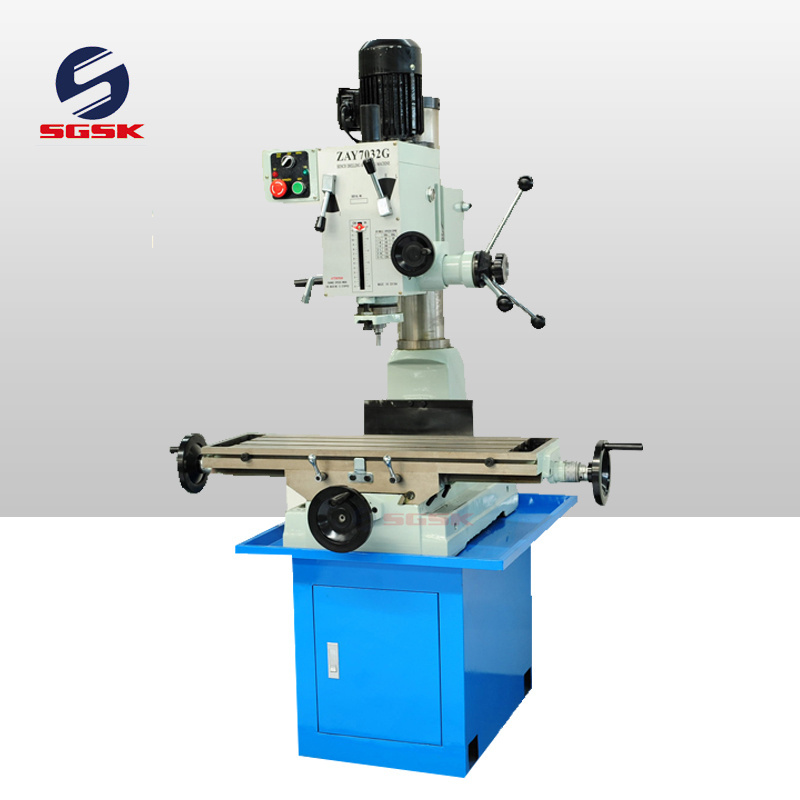

mill drill driller machine ZAY7032G deep hole drilling machine
Products Description
Product Paramenters
Features:
The main performance characteristics：
1. Gear-driven type and round column
2. Milling, drilling, boring, reaming
3. Headstock swivels 360 horizontally
4. Micro feed precision
5. Adjustable gibs on table precision.
6. Strong rigidity, powerful cutting and precisely positioning.
Standard accessories:
Allen wrench
Drift
Spanner
Drill chuck rod
Screw-driver
Draw bar and gasket
Optional accessories:
Stand
Oil basin
Power feed attachment
Machine vice
Drill chuck
Milling cutter holder
Reducing sleeve
Mill chuck
Boring rod
Tapping electrical system
Coolant system
Product main technical specifications:
|
ITEM
|
ZAY7020G
|
ZAY7032G
|
ZAY7040G
|
ZAY7045G
|
|
Drilling capacity
|
20mm
|
32mm
|
40mm
|
45mm
|
|
Face milling capacity
|
63mm
|
63mm
|
80mm
|
80mm
|
|
End milling capacity
|
20mm
|
20mm
|
32mm
|
32mm
|
|
Distance from spindle nose to table
|
439mm
|
440mm
|
440mm
|
440mm
|
|
Min.distance from spindle
axis to column |
197.5mm
|
272.5mm
|
272.5mm
|
272.5mm
|
|
Spindle travel
|
85mm
|
130mm
|
130mm
|
130mm
|
|
Spindle taper
|
M.T.3 or R8
|
M.T.3 or R8
|
M.T.4 or R8
|
M.T.4 or R8
|
|
Step of spindle speed
|
6
|
6
|
6
|
6
|
|
Range of spindle speed 50Hz
|
95-1420 r.p.m
|
80-1250 r.p.m
|
80-1250 r.p.m
|
80-1250 r.p.m
|
|
60Hz
|
115-1700 r.p.m
|
95-1500 r.p.m
|
95-1500 r.p.m
|
95-1500 r.p.m
|
|
Swivel angle of headstock
(horizontally/perpendicularly) |
360°/±90°
|
360°/±90°
|
360°/±90°
|
360°/±90°
|
|
Table size
|
520×160mm
|
800×240mm
|
800×240mm
|
800×240mm
|
|
Forward and backward travel of table
|
140mm
|
175mm
|
175mm
|
175mm
|
|
Left and right travel of table
|
290mm
|
500mm
|
500mm
|
500mm
|
|
Motor power
|
0.37KW
|
0.75KW(1HP)
|
1.1KW(1.5HP)
|
1.5KW(2HP)
|
|
Net weight/gross weight
|
130kg/190kg
|
315kg/365kg
|
318kg/368kg
|
320kg/370kg
|
|
Packing size
|
680×750×1000mm
|
770×880×1160mm
|
770×880×1160mm
|
770×880×1160mm
|
