- Product Details
- {{item.text}}
Quick Details
-
Warranty(Year):
-
3-Year
-
Color Temperature(CCT):
-
Warm White / White
-
Product Weight（kg）:
-
1.4
-
Input Voltage(V):
-
100-240
-
Lamp Luminous Flux(lm):
-
1620
-
Model Number:
-
CT0101-60A
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Enideng
-
Item Type:
-
Downlights
-
Product name:
-
Led Recessed Downlight
-
Application:
-
Indoor Lighting
-
Power:
-
18W/25W/30W/40W
-
LED Chip:
-
COB
-
Material:
-
Aluminum Housing
-
Beam angle:
-
38
-
Dimmable:
-
Dimmable Optional
-
Shape:
-
Roundness
-
CCT:
-
2700-6500K Option
Quick Details
-
Lamp Luminous Efficiency(lm/w):
-
85
-
Lamp Body Material:
-
Aluminum
-
Install Style:
-
Downlights
-
Warranty(Year):
-
3-Year
-
Color Temperature(CCT):
-
Warm White / White
-
Product Weight（kg）:
-
1.4
-
Input Voltage(V):
-
100-240
-
Lamp Luminous Flux(lm):
-
1620
-
Model Number:
-
CT0101-60A
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Enideng
-
Item Type:
-
Downlights
-
Product name:
-
Led Recessed Downlight
-
Application:
-
Indoor Lighting
-
Power:
-
18W/25W/30W/40W
-
LED Chip:
-
COB
-
Material:
-
Aluminum Housing
-
Beam angle:
-
38
-
Dimmable:
-
Dimmable Optional
-
Shape:
-
Roundness
-
CCT:
-
2700-6500K Option

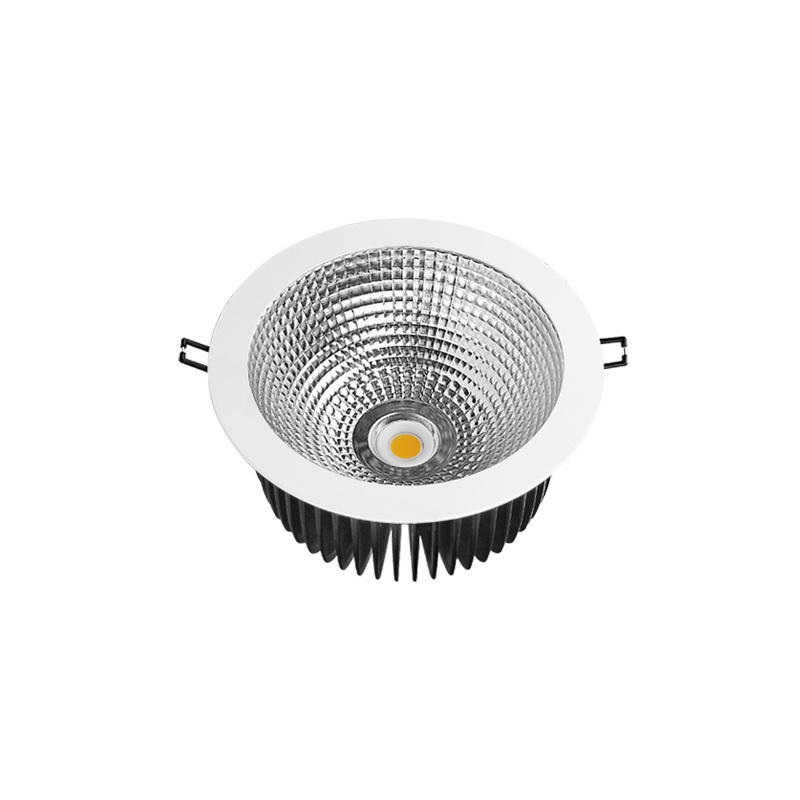

Diameter 190mm cut out 170mm 18W LED Downlight 6 inch cob lights
Product Feature:
• Materials: imported CREE LED chips, hight brightness, power saving above 60%; high CRI to show the real color of goods and environment;
high quality aluminum shell adopted to settle for LED heat releasing and to ensure LED life time.
• Style: succinct and generous. Dimmable.
• Features: wide voltage input, swift start, no flicker.
• Installation: Recessed installation available, easy and quick.
Performance Summary:
|
Modle: |
CT0101-60A |
THD(total): |
<20% |
|
System Power Consumption: |
25W/30W/40W |
Power Factor: |
>0.9 |
|
LED Chip Brand: |
CREE |
Electric Current: |
600mA/750mA/1000mA |
|
LED Chip Lumen Efficay: |
120lm/W |
IP Rating: |
IP 20 |
|
Life Time: |
50 , 000hrs |
Warranty: |
3 years |
|
System Luminous Flux: |
2250lm/2700lm/3600lm |
Dimension: |
φ 190*H100mm |
|
System Lumen Efficay: |
90lm/W |
Cut out: |
170mm |
|
Color Rendering Index: |
Ra ≥ 80/90 |
Energy Efficiency class: |
A + |
|
Color Temperature: |
2700K/3000K/4000K/5000K |
Net Weight: |
1400g |
|
Beam Angle: |
38 degree |
Package: |
1pc |
|
Input Voltage: |
100-240VAC |
Packaging Type: |
Box |
|
Output Voltage: |
DC27-42V |
Frequency: |
50/60Hz |
|
Dimming: |
Triac/DALI/0-10V |
|
Installation instructions:
