Quick Details
-
Production Capacity:
-
100%
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
OMC
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
9800*7000*5200mm
-
Weight:
-
15000 kg, 7.5-15T
-
Diamond Wire Diameter:
-
8-11mm
-
Diamond Wire Gross Length:
-
16500-21350mm
-
Wire Cutting Speed:
-
0-40m/s
-
Cutter Lifting Stroke:
-
1600-2200mm
-
Cutting Size:
-
4000*2000*2100mm
-
Productivity:
-
0.5-2m2/h
-
Work Table Rotation:
-
360 Degree
-
Dimension:
-
9800*7000*5200mm
Quick Details
-
Type:
-
Stone Cutting Machine
-
Power:
-
1.5 KW
-
Cutting thickness (max):
-
Other
-
Production Capacity:
-
100%
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
OMC
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
9800*7000*5200mm
-
Weight:
-
15000 kg, 7.5-15T
-
Diamond Wire Diameter:
-
8-11mm
-
Diamond Wire Gross Length:
-
16500-21350mm
-
Wire Cutting Speed:
-
0-40m/s
-
Cutter Lifting Stroke:
-
1600-2200mm
-
Cutting Size:
-
4000*2000*2100mm
-
Productivity:
-
0.5-2m2/h
-
Work Table Rotation:
-
360 Degree
-
Dimension:
-
9800*7000*5200mm
Product Description

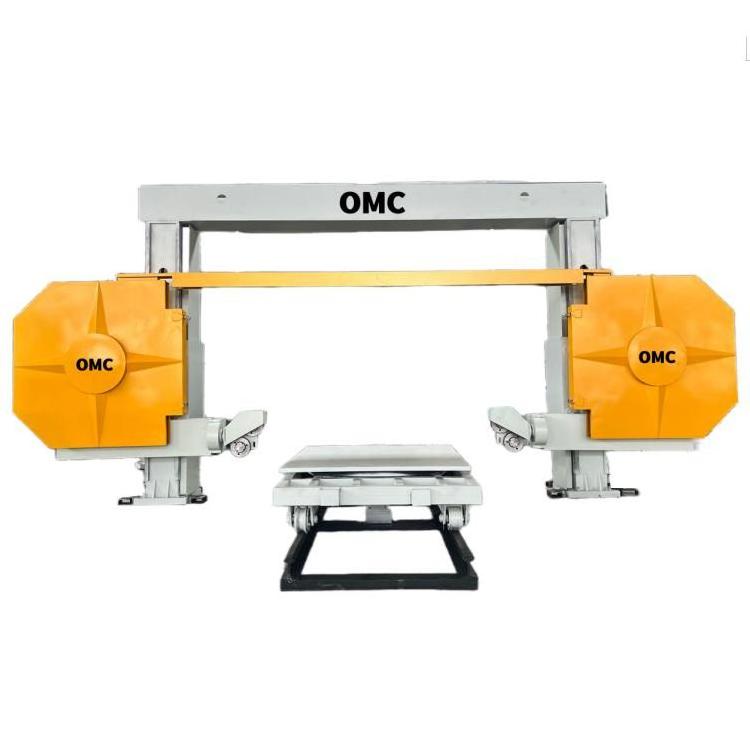

CNC diamond wire saw
Description: CNC diamond wire saw cutting machine adopts CNC system and four-spindle linkage, which can process all kinds of stones and any kind of complicated shape like circular,stone slab, roman column, numeral, letter, Chinese characters with different specifications. This machine is highly praised by our customers for its good quality with high processing precision.
Specification
|
Model
|
SJ1500*3000
|
SJ1800*3600
|
SJ2200*4000
|
|
Total Power
|
12.15KW
|
7.5KW
|
15.65 KW
|
|
Main motor power
|
7.5 KW
|
7.5KW
|
11KW
|
|
Saw diameter
|
Φ8-Φ11mm
|
Φ8-Φ11mm
|
Φ8-Φ11mm
|
|
Length of diamond wire
|
16350mm
|
19350mm
|
21350mm
|
|
Line speed
|
0-40m/s
|
0-40m/s
|
0-40m/s
|
|
Vertical travel of cutter
|
1600mm
|
1900mm
|
2200mm
|
|
Trolley size
|
1380x2250mm
|
1800x2620mm
|
2800x2000mm
|
|
Max Process size
|
3000*2000*1500mm
|
3600*2000*1800mm
|
4000*2000*2100mm
|
|
Weight capacity
|
20-30t
|
20-30t
|
20-30t
|
|
Production efficiency
|
1-2m²/h(marble)
0.5-1²/h(granite) |
1-2m²/h(marble)
0.5-1²/h(granite) |
1-2m²/h(marble)
0.5-1²/h(granite) |
|
Overall size
|
7500*6000*3800mm
|
8800*6800*4800mm
|
9800*7000*5200mm
|
|
Length of guide rail
|
6m
|
6m
|
6.5m
|
|
Weight
|
7.5T
|
9.5T
|
15.5T
|
|
Worktable rotate
|
Manual 360° rotating
|
Manual 360° rotating
|
Automatic 360° rotating
|
|
Container
|
20’GP
|
40’GP
|
40’GP
|
Product Details
Processing effect
Packing & Delivery
Outer packaging: Nude packing
