Product Description

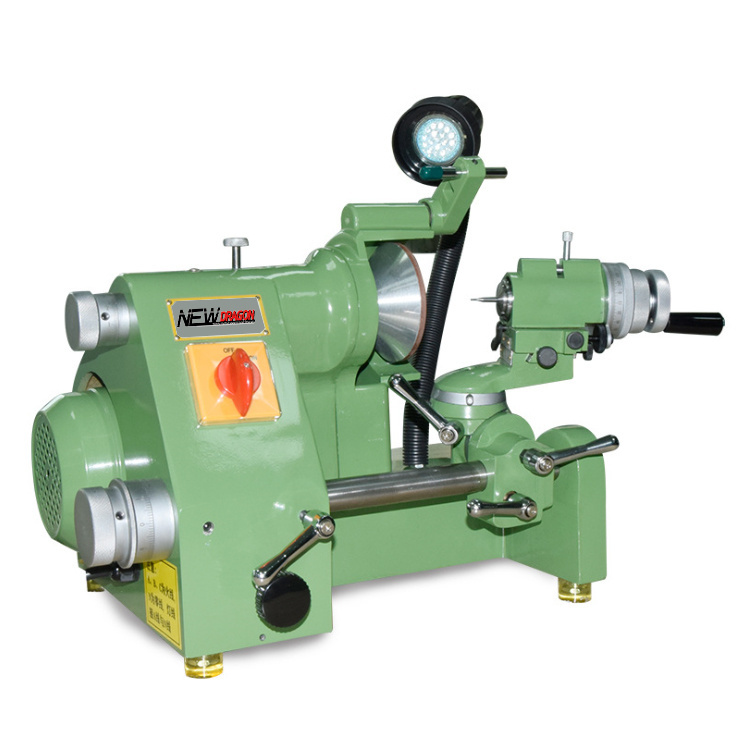

U2 High Precision Universal Cutter Grinder for tool
U2 Universal cutter grinder is suitable for grinding different diameters, shapes and angles of engraving knives, round knives, straight shank milling cutters, gravers, die milling used on computer engraving machines, engraving millers, machining centers, engraving machines, dividing machines, marking machines, etc. Easy to operate, high precision, great quality-price ratio. Projector can be optional.
| Specifications | U2 | |
| Wheel | Diameter | φ100mm |
| Thickness | 50mm/35mm | |
| Hole diameter | φ20mm | |
| Spindle speed | 5200rpm | |
| Max.clamping diameter | φ3~16mm | |
| Longitudinal traver of index head carrier | 140mm | |
| Longitudinal adjustment travel of index head carrler | 18mm | |
| Spindle and wheel longltudinal adjustment travel | 6mm | |
| Taper angle range | 0~100° | |
| Negative taper angle range | 0~20° | |
| Reliefangle range | 0~25° | |
| Moter | Power | 0.37kw |
| Speed | 2810rpm | |
| Voltage Three-Phase | 380V | |
| Voltage Single-Phase | 220V | |
| Frequency | 50Hz/60Hz | |
| Gross weight | 52Kg | |
| Packing dimensions | 55.5*45*43cm | |
