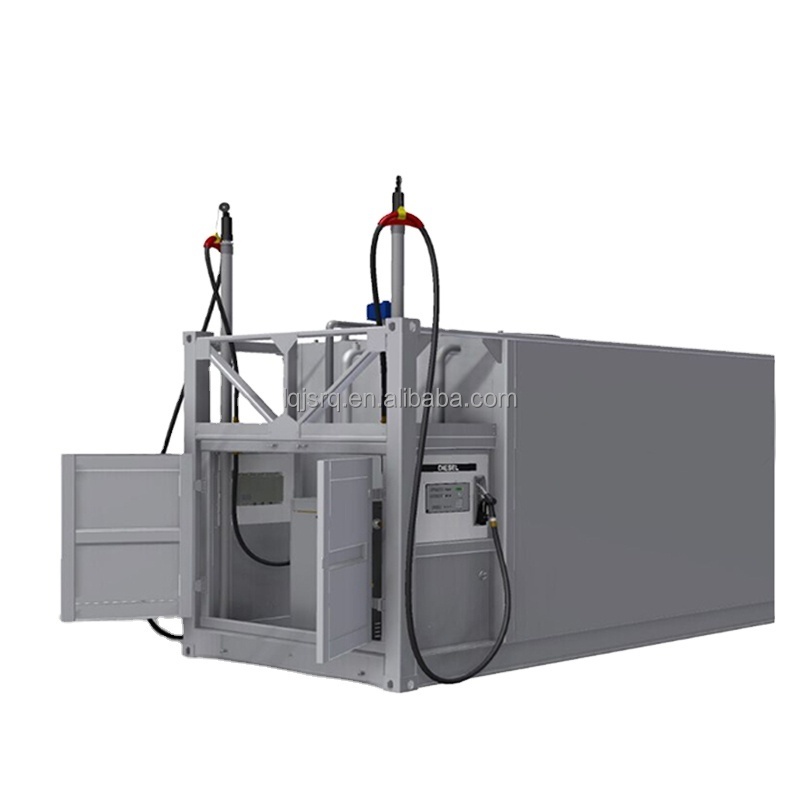

20ft 25000 liter Double walled diesel storage self bunded fuel tank

We have been an industry leader in the design and manufacturing of self bunded tan k for the 20 years in the petroleum and chemical markets. We offer a variety of above ground tank, including single-wall, double-wall types. Several models of these double walled storage tanks are available including one, two or three compartment models. Our tanks are corrosion-resistant, light-weight, and structurally strong.This 20ft  double walled self bunded fuel tank must be constructed completely of non-corrodible material, such as FRP or steel with a corrosion resistant coating.

Features:

1. Diesel storage self bunded fuel tank available in 10000 Litre to 60,000 Litres

2.Double wall cylindrical tank fitted inside a 1st trip Container 20ft or 40ft High Cube

Self-contained design - requires minimal installation

3.Manway on container top for access to tank.

Advantages:

1) The self bunded diesel tank is used for storage oil (diesel, gasoline, etc.) in static, but can not use for transportation.
2) The shape and size based on the design of container.
3) The capacity can be adjusted according to the customer, generally around 10000-60000 liters

4) Painting System: Three coats paint
First: Epoxy zinc rich primer
Second: Epoxy high build
Third: Polyurethane surface painting

5) Diesel tank outer shell material: 6mm Iron Inner / 6mm Iron Outer (double wall)

Production Process

These double walled storage self bunded tank quality control processes include a variety of in-process checks in addition to a positive air pressure test of 5psi and vacuum test in accordance with UL requirements

The product progress of diesel storage bunded tank :

1). cutting materials

2). rolling machines for circling

3). welding and NDT(non-defection test) inspection

4). re-circling after welding

5). outer vessel’s abrasive blasting and anti corrosive painting for outside surface

6). pipe connecting and assembly of inner vessel and outer vessel

7). valves installation

8). perlite filling

9). vacuum-pumping

10). final painting and ready for shipment

More products show

We are one of the prominent manufacturers, suppliers and traders of a quality range of storage tanks.We also provide stainless steel storage tanks,ISO tank containers,mobile petrol filling stations ,dish heads,water tank,mixing tanks except self bunded diesel tank for water and oil products.More products please click t picture below.

We have strict quality system from placing order to shipment to assurance our products sastif every clents.Before shipment ,our techical workers will check the 25000 liter diesel storage self bunded fuel tank again and again.We try our best to protect the to arrive your palce safely.
