LCD TV, also known as LCD TV (liquidcrystaldisplay), is the use of liquidcrystal optical anisotropy characteristics, mainly used

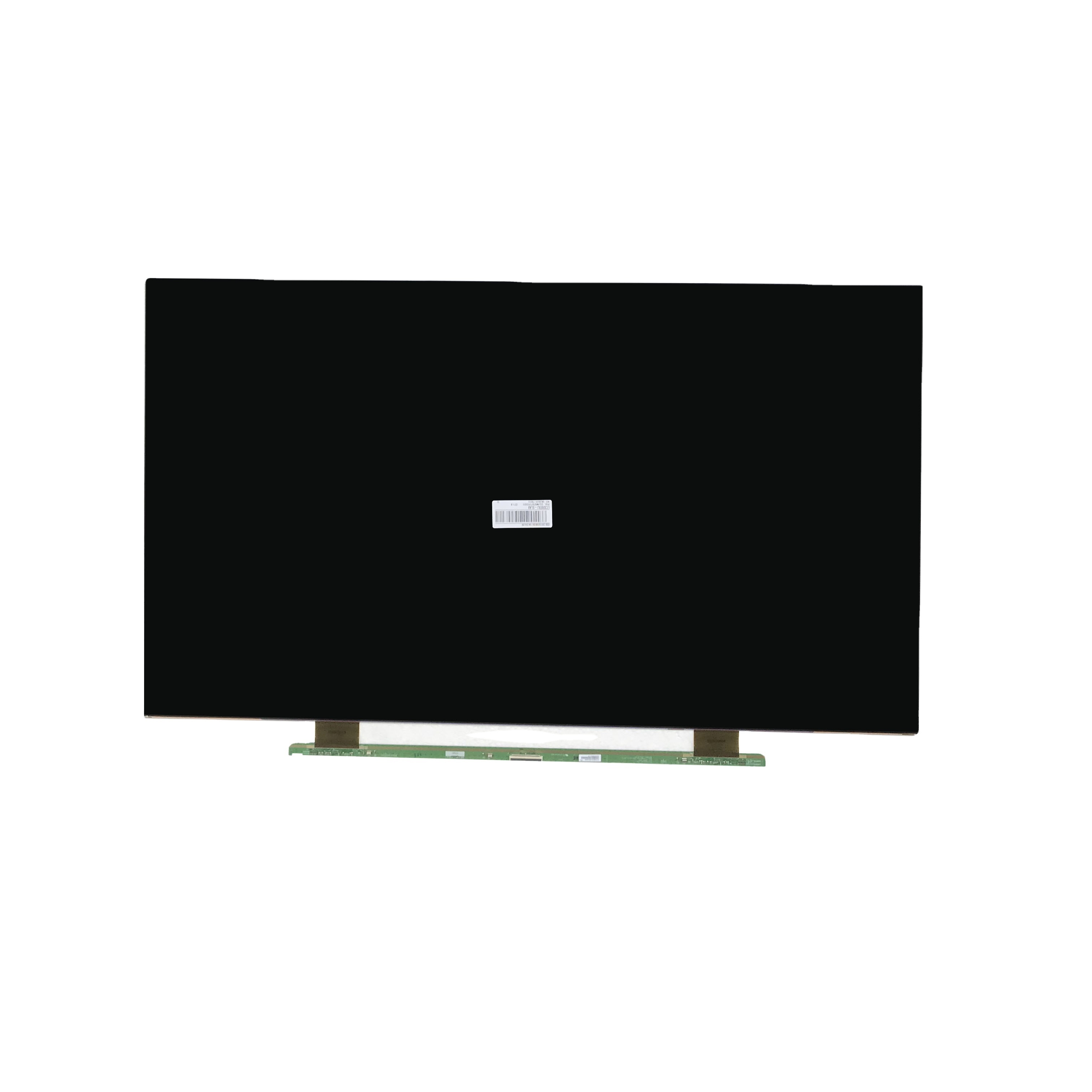

Home Alone Multimedia TFT-LCD TV only Full High Definition TV
LCD TV, also known as
- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
BOE
-
Brand:
-
BOE
-
Resolution:
-
1366(RGB)*768.WXGA49PPI
-
Frequency:
-
60HZ
-
Panel Weight:
-
852g(Typ.)
-
Model P/N:
-
HV320WHB-F70
-
Transmissivity:
-
6.2%(Typ.)(with Polarizer)
-
Interface Type:
-
Mini LVDS,60pins Connector
Quick Details
-
Type:
-
TFT
-
Display Size:
-
32 inch
-
Supplier Type:
-
Original manufacturer
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
BOE
-
Brand:
-
BOE
-
Resolution:
-
1366(RGB)*768.WXGA49PPI
-
Frequency:
-
60HZ
-
Panel Weight:
-
852g(Typ.)
-
Model P/N:
-
HV320WHB-F70
-
Transmissivity:
-
6.2%(Typ.)(with Polarizer)
-
Interface Type:
-
Mini LVDS,60pins Connector
Product Description
|
Brand
|
BOE
|
Model P/N
|
HV320WHB-F70
|
||
|
Diagonal Size
|
32.0"
|
Panel Type
|
a-Si TFT-LCDCELLFOB
|
||
|
Resolution
|
1366(RGB)*768WXGA49PPI
|
Pixel Format
|
RGB Vertical Stripe
|
||
|
Active Area
|
697685(W)*392.256(H)mm
|
Bezel Opening
|
|
||
|
Outline Size
|
715(W)x411(H)x1.32(D)mm
|
Surface
|
Antiglare(Haze1%)Hard coating(3H)
|
||
|
Brightness
|
0 cd/m2
|
Contrast Ratio
|
1200:1(Typ.)(TM)
|
||
|
Viewing Angle
|
89/89/89/89(Typ(CR≥10)
|
Display Mode
|
ADS,Normally BlackTransmissive
|
||
|
Best View on
|
Symmetry
|
Response Time
|
8(Typ.)(G to G)
|
||
|
Glass Depth
|
0.50+0.50mm
|
Transmissivity
|
6.5%(Typ.)(with Polarizer)
|
||
|
Display Colors
|
16.7M 72%NTSC
|
Lamp Type
|
No B/L
|
||
|
Frequency
|
60Hz
|
Touch Screen
|
Without
|
||
|
DriverIC
|
COFBuilt-in 2 source chips
|
Application
|
TV
|
||
|
Panel Weight
|
852g(Typ.)
|
|
|
||
|
Signal Interface
|
MiniLVDS60 pins Connector
|
|
|
||
|
Environment
|
OperatingTemp:0~50℃:StorageTemp:-20~60℃
|
|
|
||
Specification
Liquid crystal displa
y
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
