Quick Details
-
Voltage:
-
220V/380V/415V(customizable)
-
Dimension(L*W*H):
-
1300*950*1420
-
Weight:
-
710
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Product name:
-

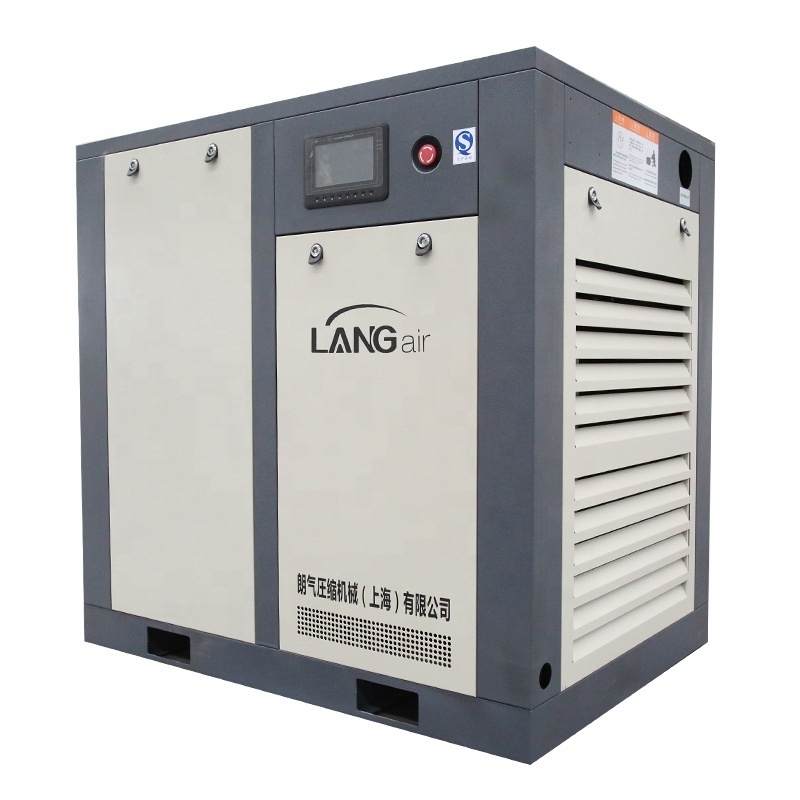

Belt Driven Ac Rotary Type Double Screw Air Compressor
-
Power:
-
37KW 50HP
-
Electric part:
-
ABB
-
Application:
-
General Industry
-
Pressure:
-
0.7/0.8/1.0/1.25 MPA
-
Capacity:
-
2.5/3.2/3.6/3.8m3/min
-
Color:
-
Gray (or customized)
-
Cooling method:
-
Air Cooling /Water Cooling
Quick Details
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
Langir
-
Model Number:
-
LV-22GA
-
Voltage:
-
220V/380V/415V(customizable)
-
Dimension(L*W*H):
-
1300*950*1420
-
Weight:
-
710
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Product name:
-
Belt Driven Ac Rotary Type Double Screw Air Compressor
-
Power:
-
37KW 50HP
-
Electric part:
-
ABB
-
Application:
-
General Industry
-
Pressure:
-
0.7/0.8/1.0/1.25 MPA
-
Capacity:
-
2.5/3.2/3.6/3.8m3/min
-
Color:
-
Gray (or customized)
-
Cooling method:
-
Air Cooling /Water Cooling
| Model | Working Pressure | Air Delivery | Motor Power | Type of Driving | Type of Cooling | Dimension(mm) | Weight | Output pipe | ||||
| psig | bar | cfm | m3/min | kw/hp | L | W | H | (kg) | Diameter | |||
| LA-15GA | 100 | 7 | 84.7 | 2.4 | 15/20 | Direct driven |
Air Cooling/
Water Cooling |
1150 | 750 | 1180 | 460 | 1" |
| 116 | 8 | 77.7 | 2.2 | |||||||||
| 145 | 10 | 74.2 | 2.1 | |||||||||
| 181 | 12.5 | 63.6 | 1.8 | |||||||||
| LA-18GA | 100 | 7 | 109.5 | 3.1 | 18.5/25 | 1200 | 880 | 1450 | 620 | 1" | ||
| 116 | 8 | 102.4 | 2.9 | |||||||||
| 145 | 10 | 95.3 | 2.7 | |||||||||
| 181 | 12.5 | 81.2 | 2.3 | |||||||||
| LA-22GA | 100 | 7 | 134.2 | 3.8 | 22/30 | 1200 | 880 | 1450 | 640 | 1" | ||
| 116 | 8 | 127.1 | 3.6 | |||||||||
| 145 | 10 | 113 | 3.2 | |||||||||
| 181 | 12.5 | 88.3 | 2.5 | |||||||||
| LA-30GA | 100 | 7 | 187.1 | 5.3 | 30/40 | 1250 | 1000 | 1360 | 900 | 11/4" | ||
| 116 | 8 | 176.6 | 5 | |||||||||
| 145 | 10 | 151.8 | 4.3 | |||||||||
| 181 | 12.5 | 127.1 | 3.6 | |||||||||
| LA-37GA | 100 | 7 | 233 | 6.6 | 37/50 | 1350 | 1000 | 1640 | 1060 | 11/4" | ||
| 116 | 8 | 218.9 | 6.2 | |||||||||
| 145 | 10 | 201.3 | 5.7 | |||||||||
| 181 | 12.5 | 162.4 | 4.6 | |||||||||
| LA-45GA/W | 100 | 7 | 282.5 | 8 | 45/60 | 1300 | 1000 | 1470 | 1150 | 11/2" | ||
| 116 | 8 | 271.9 | 7.7 | |||||||||
| 145 | 10 | 243.6 | 6.9 | |||||||||
| 181 | 12.5 | 211.9 | 6 | |||||||||
| LA-55GA | 100 | 7 | 370.8 | 10.5 | 55/75 | 1950 | 1320 | 1570 | 1750 | 2" | ||
| 116 | 8 | 346 | 9.8 | |||||||||
| 145 | 10 | 307.2 | 8.7 | |||||||||
| 181 | 12.5 | 257.8 | 7.3 | |||||||||
| LA-75GA | 100 | 7 | 480.2 | 13.6 | 75/100 | 1950 | 1320 | 1570 | 1840 | 2" | ||
| 116 | 8 | 459 | 13 | |||||||||
| 145 | 10 | 399 | 11.3 | |||||||||
| 181 | 12.5 | 356.6 | 10.1 | |||||||||
| LA-90GA | 100 | 7 | 572 | 16.2 | 90/120 | 2100 | 1320 | 1700 | 2030 | 2" | ||
| 116 | 8 | 543.8 | 15.4 | |||||||||
| 145 | 10 | 466.1 | 13.2 | |||||||||
| 181 | 12.5 | 395.5 | 11.2 | |||||||||
| LA-110GA | 100 | 7 | 734.4 | 20.8 | 110/150 | 2545 | 1450 | 1900 | 2920 | DN65 | ||
| 116 | 8 | 688.5 | 19.5 | |||||||||
| 145 | 10 | 582.6 | 16.5 | |||||||||
| 181 | 13 | 483.7 | 13.7 | |||||||||
| LA-132GA | 100 | 7 | 847.4 | 24 | 132/175 | 2545 | 1450 | 1900 | 3200 | DN65 | ||
| 116 | 8 | 812.1 | 23 | |||||||||
| 145 | 10 | 706.2 | 20 | |||||||||
| 181 | 13 | 547.3 | 15.5 | |||||||||
| LA-160GA | 100 | 7 | 981.6 | 27.8 | 160/200 | 2790 | 1550 | 2000 | 3600 | DN65 | ||
| 116 | 8 | 918.1 | 26 | |||||||||
| 145 | 10 | 829.8 | 23.5 | |||||||||
| 181 | 13 | 688.5 | 19.5 | |||||||||
| Motor Efficiency Class: Ultraefficient/IE3/IE2 as per your required | ||||||||||||
| Motor Protection Class: IP23/IP54/IP55 or as per your required | ||||||||||||
| Certification: CE/ISO9001/TUV/UL/SGS/ASME | ||||||||||||
| Voltage: 380V/3PH/50HZ/60HZ, 220V/3PH/50HZ/60HZ, 400V/3PH/50HZ/60HZ, 440V/3PH/50HZ/60HZ, 415V/3PH/50HZ/60HZ, 230V/3PH/50HZ/60HZ, dual voltage is also ok | ||||||||||||
| Pre-sales service | |
|
1.Recommend the most suitable air compressor with our 11 year experience in air compressor business according to your appication.
|
|
| 2.Welcome to your visit to our factory. | |
| 3.Recommend the trustable shipping agentfor your reference. | |
| 4.Help you check the shipping fee. | |
| After-sales service | |
| 1.User manual will be sent to you. | |
| 2.Installation direction by phone. | |
| 3.Technician goes to your city to help you installation. | |
| 4.24-hour online after-sales support. | |
Q1: Why customer choose us?
A: Lang Air INDUSTRIAL (SHANGHAI) CO., LTD., with 18 years old history, we are specialized in Rotary Screw Air
Compressor. USA Standard and 10 years exporting experience help us won more than 50 loyal foreign agents. We warmly
welcome your small trial order for quality or market test.
Q2: Are you a manufacturer or trading company?
A: We are professional manufacturer with big modern factory in Shanghai,China. Both OEM & ODM service can be accepted.
Q3: What's your delivery time?
Q2: Are you a manufacturer or trading company?
A: We are professional manufacturer with big modern factory in Shanghai,China. Both OEM & ODM service can be accepted.
Q3: What's your delivery time?
A: Generally 3 to 7 days, if urgently order, please contact our sales in advance.
Q4: How long is your air compressor warranty?
A: One year for the whole machine and two years for screw air end, except consumble spare parts.
Q5: How long could your air compressor be used?
A: Generally, more than 10 years.
Q6: What's payment term?
A: T/T, L/C, D/P, Western Union, Paypal , Credit Card, and etc.
Also we could accept Dollar, RMB, Euro and other currency.
Q7: How about your customer service?
A: 24 hours on-line service available. 48 hours problem solved promise.
Q8: How about your after-sales service?
A: 1. Provide customers with installation and commissioning online instructions.
2. Well-trained engineers available to overseas
Q4: How long is your air compressor warranty?
A: One year for the whole machine and two years for screw air end, except consumble spare parts.
Q5: How long could your air compressor be used?
A: Generally, more than 10 years.
Q6: What's payment term?
A: T/T, L/C, D/P, Western Union, Paypal , Credit Card, and etc.
Also we could accept Dollar, RMB, Euro and other currency.
Q7: How about your customer service?
A: 24 hours on-line service available. 48 hours problem solved promise.
Q8: How about your after-sales service?
A: 1. Provide customers with installation and commissioning online instructions.
2. Well-trained engineers available to overseas
