- Product Details
- {{item.text}}
Quick Details
-
Power:
-
5.5kw
-
Min. Lifting Height:
-
2.35m
-
Table Size:
-
1.6*0.8m
-
Overall Dimensions:
-
5.5*1.65*2.35m
-
Weight:
-
5800 kg
-
Marketing Type:
-
New Product 2024
-
Number of working arms:
-
5 knots
-
Close travel speed:
-
4km/h
-
Lifting travel speed:
-
0.8km/h
-
Big arm deflection:
-
≤0.5%
-
Forearm luffing angle:
-
130°
-
Minimum turning radius:
-
Outer wheel 4.4m, inner wheel 2.25m
-
Height from workbench to ground:
-
630mm
-
Shaft distance:
-
1907mm
-
Wheelbase:
-
1440mm
-
control voltage:
-
24v
Quick Details
-
Warranty:
-
1 Year
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Maysun
-
Power:
-
5.5kw
-
Min. Lifting Height:
-
2.35m
-
Table Size:
-
1.6*0.8m
-
Overall Dimensions:
-
5.5*1.65*2.35m
-
Weight:
-
5800 kg
-
Marketing Type:
-
New Product 2024
-
Number of working arms:
-
5 knots
-
Close travel speed:
-
4km/h
-
Lifting travel speed:
-
0.8km/h
-
Big arm deflection:
-
≤0.5%
-
Forearm luffing angle:
-
130°
-
Minimum turning radius:
-
Outer wheel 4.4m, inner wheel 2.25m
-
Height from workbench to ground:
-
630mm
-
Shaft distance:
-
1907mm
-
Wheelbase:
-
1440mm
-
control voltage:
-
24v
Products Description
Details Images
|

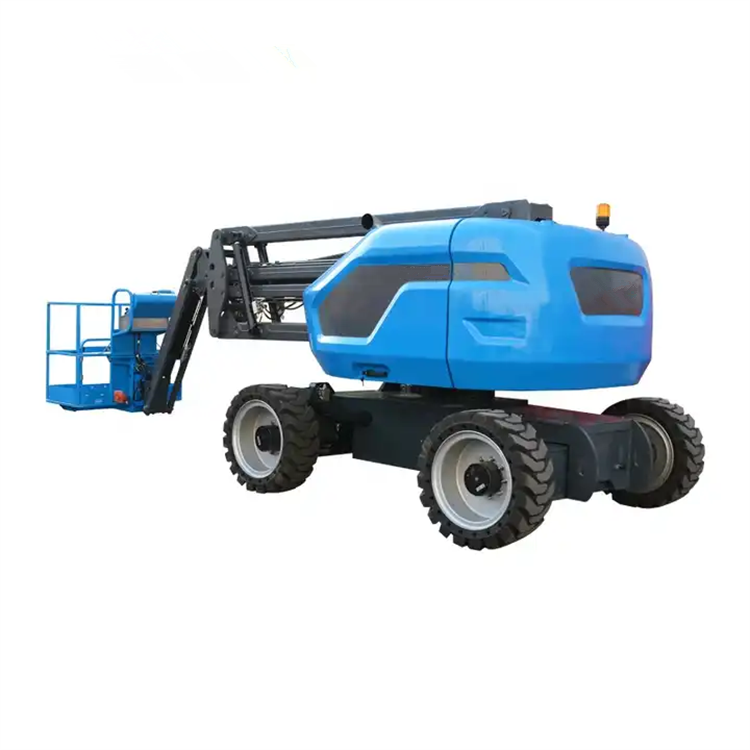

MSZX-QB1010
|
|
|
|
|||
|
Dimensions
|
|
Main performance parameters
|
|
|||
|
Overall machine length (collapsed)
|
5.5m
|
Maximum working height
|
12m
|
|||
|
Overall machine width (collapse)
|
1.65m
|
Maximum platform height
|
10m
|
|||
|
Overall machine height (folded)
|
2.35m
|
Maximum working radius
|
5.8m
|
|||
|
working desk size
|
1.6*0.8m
|
Maximum span height
|
5.7m
|
|||
|
Number of working arms
|
5 knots
|
Maximum allowable angle of chassis
|
1.5°/3°
|
|||
|
Close travel speed
|
4km/h
|
Drive form
|
4x2x2
|
|||
|
Lifting travel speed
|
0.8km/h
|
Maximum grade
|
25%
|
|||
|
Big arm deflection
|
≤0.5%
|
Workbench load
|
230kg
|
|||
|
Forearm luffing angle
|
130°
|
Maximum load capacity
|
2 people
|
|||
|
Minimum turning radius
|
Outer wheel 4.4m, inner wheel 2.25m
|
Workbench rotation angle (optional)
|
±80° (the length of the machine increases by 200 after installation)
|
|||
|
The height of the workbench from the ground after shrinkage
|
630mm
|
Windproof rating
|
Level 3-4
|
|||
|
Wheelbase
|
1907mm
|
Drive parameters-electric
|
|
|||
|
Wheelbase
|
1440mm
|
Turntable rotation angle
|
355° non-continuous
|
|||
|
Equipment weight
|
5800kg
|
Power form
|
battery
|
|||
|
control voltage
|
24v
|
Walking drive
|
5.5kw
|
|||
|
Tire specifications
|
28X9-15 solid tire
|
Lift drive
|
4kw
|
|||
|
tire size
|
580mm
|
Battery power
|
2v
|
|||
|
Device color
|
yellow
|
battery capacity
|
250ah
|
|||
|
|
|
battery charger
|
48v35A
|
|||
|
|
|
Battery quantity
|
24 yuan
|
|||
|
|
|
Hydraulic tank volume
|
60L
|
|||
|
|
|
|
|
|||
FAQ
FAQ:
1. Why choose us? Rancheng Machinery is a very professional drilling rig supplier in China. We have rich experience in this industry for 11 years. Our products are now available all over the world. We have high quality, competitive price and fast delivery.
2. who are we?
We are based in Henan, China, start from 2023,sell to Southeast Asia(10.00%),Africa(6.00%). There are total about 11-50 people in our office.
3. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
4.what can you buy from us?
Branch crusher,hydraulic scissor lift,copper wire granulator,pile breaking machine,power trowel
5.Do you offer any custom designs? Yes, we have our own trading factory. We provide services to partners of the highest range. We produce an excellent product based on your designs.
6, How to make sure the quality we sent to you is the same as what we said? We are a gold supplier on Alibaba, order through alibaba trade assurance, ensure the safety of your money and the quality of goods.
7. How to order? Step 1, please tell us which model and quantity you need; Step 2, then we will make a PI for you to confirm the order details; Step 3, when we have confirmed everything, we can arrange payment; Step 4 Finally we deliver the product within the agreed time.
8. When will delivery be made? About 10-15 working days after receiving payment.
9. After-sales service 1 year warranty for all types of products; If you find any defective accessories at the first time, we will provide you with new parts for free to replace in your next order, as an experienced manufacturer, you can rest assured of the quality and after-sales service.
10, Can we visit your factory Yes, you are warmly welcome to visit us.
