Quick Details
-
Place of Origin:
-
gansu
-
Brand Name:
-
jtl
-
Model Number:
-
JTL-548
-
Material:
-
perforated gypsum board
-
Key word:
-
ceiling tiles
-
Usage:
-
Interior Wall Ceiling Decoration
-
Thickness:
-
12mm 15mm 20mm
-
Product name:
-
gypsum board drywall
-
Surface:
-
perforated
-
Color:
-
Customer Require
-
Size:
-
1220/1200mm*2400mm or customized
-
Advantage:
-
Long Service Life
-
Certificate:
-
ISO9001:2008 /CE
Quick Details
-
Project Solution Capability:
-
graphic design, 3D model design, total solution for projects, Cross Categories Consolidation
-
Application:
-
projects
-
Design Style:
-
morden
-
Place of Origin:
-
gansu
-
Brand Name:
-
jtl
-
Model Number:
-
JTL-548
-
Material:
-
perforated gypsum board
-
Key word:
-
ceiling tiles
-
Usage:
-
Interior Wall Ceiling Decoration
-
Thickness:
-
12mm 15mm 20mm
-
Product name:
-
gypsum board drywall
-
Surface:
-
perforated
-
Color:
-
Customer Require
-
Size:
-
1220/1200mm*2400mm or customized
-
Advantage:
-
Long Service Life
-
Certificate:
-
ISO9001:2008 /CE
Product Description

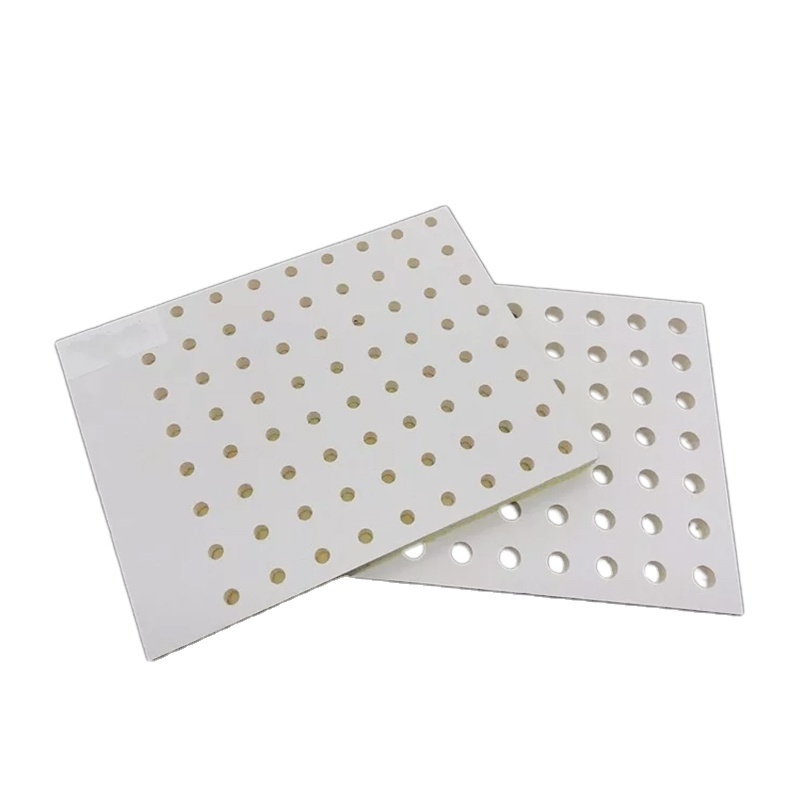

Acoustic performance design freedom Perforated Plasterboard Acoustic Perforated gypsum board chinese gypsum board
Perforated gypsum acoustic board brings a newcreative freedom to ceiling and wall lining design, whether the concept calls forsweeping
yet elegant links
between open areas, or for a simple, natural transition between rooms. jintailong's attractive boards for flat or curved surfaces
can be decorated and redecorated
without affecting acoustic performance
,
and add gypsum’s fire safety and durability to a true aesthetic appeal.
Specification
|
Material:
|
High-strength plasterboard Gypsumboard
|
|
|
|
|||
|
Surface:
|
Ivory white （No paint）
|
|
|
|
|||
|
Color
|
White
|
|
|
|
|||
|
Hole
|
Round 6 mm，squarel Q1 12 x 12 mm.Tangent, T1 14 x 4mm oval, Micro M 3 x 3 mm
|
|
|
|
|||
|
Sizs：
|
1200*2400mm，1188*1198mm
|
|
|
|
|||
|
Thickness
|
12.5mm
|
|
|
|
|||
|
Weight
|
7.7kg/m2
|
|
|
|
|||
|
Edge
|
Square ,Tegular
|
|
|
|
|||
|
Perforation rate
|
9-21.3%
|
|
|
|
|||
|
Back
|
45g/m2 Sound absorption fabric
|
|
|
|
|||
|
Fireproof class
|
A2 -s1d0 ,China
|
|
|
|
|||
|
Acoustic performance
|
αwup to 0.65
- NRC up to 0.65 - Dncwup to 39dB |
|
|
|
|||
|
Moisture resistance
|
RH70
|
|
|
|
|||
|
Suspension system
|
Ceiling grid (Ceiling T bar)
|
|
|
|
|||
Different Types
Benefits
-4 x perforation designs and 1 x plain panel option.
-Excellent sound absorption at important 250– 2000 Hz
-speech frequencies for comfort and communication.
-Machined reveal edge detail
-Durable fire resist ant gypsum composition for long life
-Non mineral fibre based acoustic ceiling solution for ahealthy comfortable indoor environment
Perforation area %
Roundφ 6mm φ8mm φ12mm 15m 10.2 %
Square, 12x12mm 16.0 %
Micro, 3 x 3 mm 10.2%
Tangent, 14 x 4 mm oval holes 21.3%
Regula perforated. 16%
Roundφ 6mm φ8mm φ12mm 15m 10.2 %
Square, 12x12mm 16.0 %
Micro, 3 x 3 mm 10.2%
Tangent, 14 x 4 mm oval holes 21.3%
Regula perforated. 16%
perforation pattern shall be (Round, 6 8 12 15mm diameter) (squarel Q1 12 x 12 mm) (Irregular Round 8/15/20 mm diameter) with acoustic tissue backing, (aW 0.65) (Tangent aW 0.75), prepainted white, fire group 1s, size (600 x 600) (1200 x 300) (other) suspension shall be (T24) (T15) two way exposed grid system
Square 12/25Q -2400
12mm Square features eight large square groupings per sheet, each with 400 x 12mm square perforations at 25mm centres, providing a 16% open area
12mm Square features eight large square groupings per sheet, each with 400 x 12mm square perforations at 25mm centres, providing a 16% open area
Round 15/30R-2400
Standard 6 mm12mm 15mm Round provides an economical aesthetic solution for ceilings or walls and acoustic performance is adequate
for most situations where moderate levels of attenuation are required.
Standard 6 mm12mm 15mm Round provides an economical aesthetic solution for ceilings or walls and acoustic performance is adequate
for most situations where moderate levels of attenuation are required.
Square 12/25Q -2400H32
Gyptone 12mm Square Minigrid features eight large square groupings per sheet, each with nine mini grids of 16 x 12mm square perforations at 25mm centres. This subtle pattern provides an open area of 6%.
Gyptone 12mm Square Minigrid features eight large square groupings per sheet, each with nine mini grids of 16 x 12mm square perforations at 25mm centres. This subtle pattern provides an open area of 6%.
Galaxy 8/15/20R
Galaxy features an irregular scattered pattern consisting of 8mm, 15mm and 20mm round perforations, providing a 10% open area.
Galaxy features an irregular scattered pattern consisting of 8mm, 15mm and 20mm round perforations, providing a 10% open area.
Galaxy 12/20/35R
Degotone Galaxy’s seamless intricate pattern and acoustic performance is universally appealing to provide sound control and an arresting aesthetic in public areas in commercial buildings.
Degotone Galaxy’s seamless intricate pattern and acoustic performance is universally appealing to provide sound control and an arresting aesthetic in public areas in commercial buildings.
Cross 12/20/50R
Rigitone Astral features a regularly staggered pattern consisting of 12mm and 20mm round perforations spaced at 25mm centres, providing a 14.2% open area.
Rigitone Astral features a regularly staggered pattern consisting of 12mm and 20mm round perforations spaced at 25mm centres, providing a 14.2% open area.
Square Q41
Holes: 8/18Q
Perforation rate: 13%
Holes: 10/20Q
Perforation rate:13.4%
Holes:12/25Q
Perforation rate: 16%
Irregular round hole
Holes: 8/15/20R
Perforation rate:9.9%
Holes: 12/20/35R
Perforation rate:9.9%
Holes:12/25Q
Perforation rate: 16%
Holes: 8/15/20R
Perforation rate:9.9%
Holes: 12/20/35R
Perforation rate:9.9%
Holes:12/25Q
Perforation rate: 16%
