Quick Details
-
Place of Origin:
-
Other Country
-
Brand Name:
-
ONPOW
-
Model Number:
-
LAS1-AGQ-E/S
-
Mounting hole:
-
19mm
-
Electrical life:
-
50000
-
Mechanical life:
-
1000000
-
OEM&ODM:
-
Available
-
Certification:
-
VDE, CE, ROHS, CE CCC RoSH
Quick Details
-
Protection Level:
-
IP65,IK09
-
Max. Current:
-
5A
-
Max. Voltage:
-
250V
-
Place of Origin:
-
Other Country
-
Brand Name:
-
ONPOW
-
Model Number:
-
LAS1-AGQ-E/S
-
Mounting hole:
-
19mm
-
Electrical life:
-
50000
-
Mechanical life:
-
1000000
-
OEM&ODM:
-
Available
-
Certification:
-
VDE, CE, ROHS, CE CCC RoSH
Product Description
| Type | LAS1-AGQ |
| Maximum voltage | 250V |
| Maximum current | 5A |
| Protection Class | IP65,IK09(IP67 can be customized) |
| Mounting hole | 12mm/16mm/19mm/22mm/25mm/30mm |
| Electrical life | 50000 |
| Mechanical life | 1000000 |

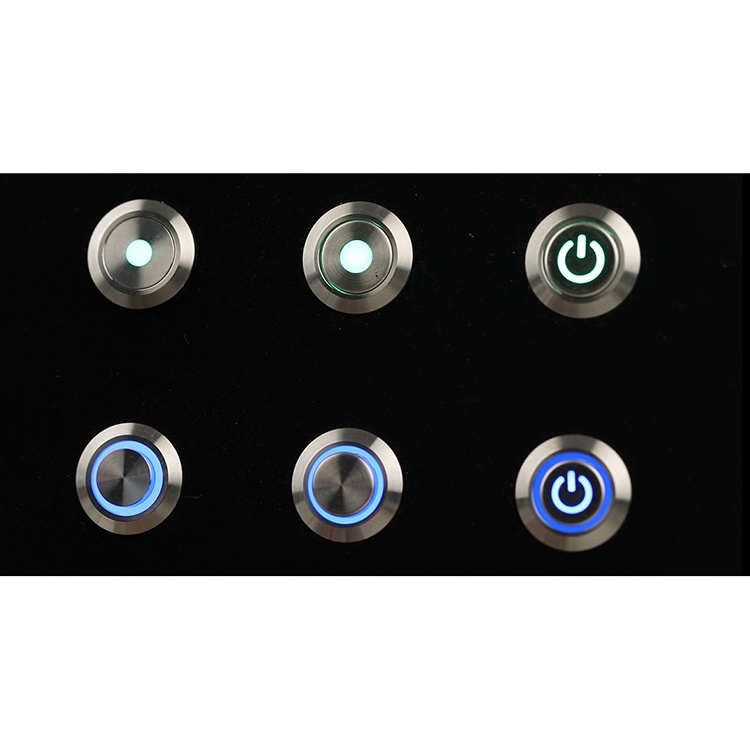

| Lamp Type | No lamp / Dot LED / Ring LED / etc |
| Crust material | Stainless steel/Aluminum alloy |
| Button material | Stainless steel/Aluminum alloy |
| Nut Torque | About 0.8Nm |
| Panel Thickness | 1~10mm |
| Operation force | About 1.5N |
| Operation travel | About 3.1mm |
| Switch function | Momentary/Latching(1NO1NC/2NO2NC) |
| Certification | VDE,UL,CE,ROHS |
| OEM&ODM | Available |
