Quick Details
-
Brand Name:
-
THEHAO
-
Model Number:
-
THS1-63SN
-
Rated Current:
-
63
-
Product name:
-

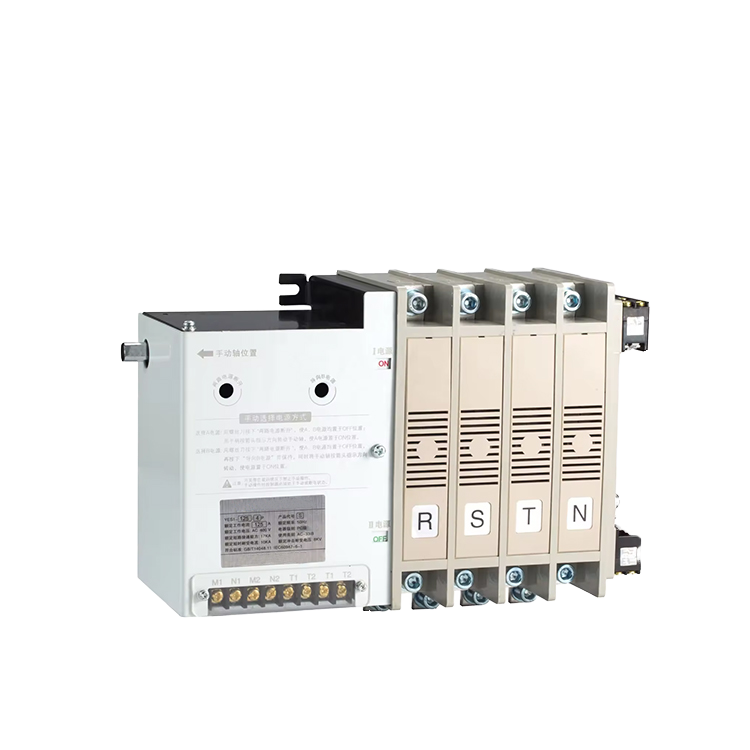

Dual Power Automatic Transfer Switch
-
Operation type:
-
Automatic Conversion Manual Operation
-
Pole:
-
2P,3P,4P
-
Function:
-
Automatic Transfer Switch Generator ATS
-
Rated working voltage:
-
400V
-
Current:
-
16-63amp
-
Color:
-
white
-
Certificate:
-
ISO CCC IEC
-
Application:
-
Widely
Quick Details
-
Type:
-
PC
-
Number of Pole:
-
2
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
THEHAO
-
Model Number:
-
THS1-63SN
-
Rated Current:
-
63
-
Product name:
-
Dual Power Automatic Transfer Switch
-
Operation type:
-
Automatic Conversion Manual Operation
-
Pole:
-
2P,3P,4P
-
Function:
-
Automatic Transfer Switch Generator ATS
-
Rated working voltage:
-
400V
-
Current:
-
16-63amp
-
Color:
-
white
-
Certificate:
-
ISO CCC IEC
-
Application:
-
Widely
Products Description
Specitificate
|
Item
|
YES1-63S/SN
|
YES1-125S/SN
|
YES1-250S/SN
|
YES1-630S/SN
|
|||
|
Rated Current (A)
|
16-63A
|
20-125A
|
160-250A
|
315A-630A
|
|||
|
Rated-voltage
|
AC400V
|
|
|
|
|||
|
Rated impules Withstand Current (kA)
|
8 |
|
|
|
|||
|
service
Life |
6000times/20000times
|
|
|
1000times/4000times
|
|||
|
vote number
|
Double throw
|
|
|
|
|||
THS1 series ATSE is made up of switch body and transfer controller. The switch is driven by electromagnetic coil, so the transfer speed is very fast. The power source of controller takes main power or emergency power AC220V as working voltage.
NA,SA,LA3 type ATSE is integral type. The controller is installed inside of switch body. User only need to connect the main circuit then ATSE could work. It's convenient for users to connect wires. Meanwhile SA type ATSE with generator starting signal, input without power, feedback without power. The controller is separated with switch body. User should connect controller with switch body by wires.
N,C,M,Q,S,L is split type. The controller is separated with switch body. User should connect controller with switch body by wires and stop signal output function (when main power fault, the signal will be sent out after 3s time delay. When main power recover, the signal will be stopped after 3s time delay.)
ATS SWITCH FUNCTION
1. Self-input and self-restoring, Self-input without self-restoring, automatic or manual is all depends on you.
2. 2 Pole,3 Pole,4 Pole all you can choose
3. Running parameter could be adjusted
4. Rated voltage of 400V,rated current is from 10Amp to 400Amp
5. City power to City power City power to Generator
Application
SA series Automatic transfer switch mainly used for distribution or electromotor network, which under voltage 380V, rated voltage DC 220V, Rated current 16A-3200A.
Main power and standby power or mutual standby power change over system or city power and generator group overload switch-over. At the same time, it can operated under un-frequency on and off circuit act as disconnector.
Widely used at the field of important power supply site, which transport, distribution power supply system and automatization system. For fire protection,hospital,bank,building, etc, where doesn't allow power off.
Structure and characteristic
THS1 series automatic transfer switch is composed of switch is composed of switch body and controller. Adopt the electromagnetic driver, the working power of controller transfer is based on the main power and the standby power. AC220V power supply, without additional source. Switch body have an electrical or mechanical switch instruction as an isolation indicator function.
