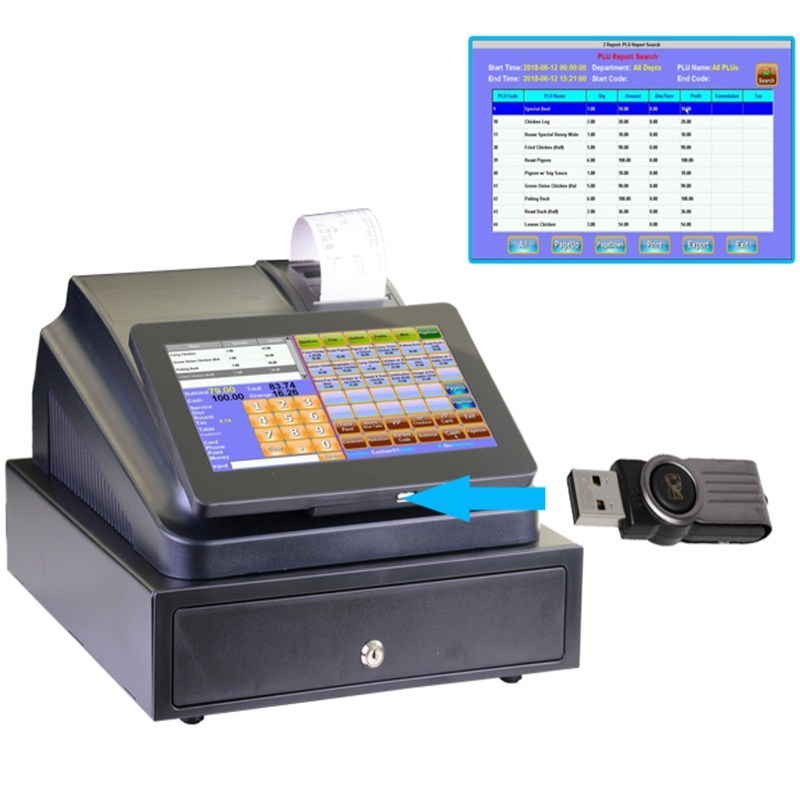

Quick Details
-
Type:
-
all in one touch screen POS
-
Software:
-
POS cash register application software
-
OS:
-
POS system Genuine Linux operating system
-
Operation Display:
-
10.1 inch
-
Customer display:
-
LED 8N
-
Receipt Printer:
-
built in 58mm thermal printer
-
Cash drawer:
-
Embedded cash drawer,12V magnetic plug, 5 coins 4 note
-
Touch Panel:
-
capacitive touch screen
-
for food and beverage retail store:
-
jewelry and accessory store, Casual Dining,Family Style Restaurants,
-
Operation System:
-
LINUX
-
CPU:
-
A5
-
Hard Disk Capacity:
-
8GB
Quick Details
-
Brand Name:
-
OEM
-
Place of Origin:
-
Guangdong, China
-
COLOR:
-
BLACK
-
Type:
-
all in one touch screen POS
-
Software:
-
POS cash register application software
-
OS:
-
POS system Genuine Linux operating system
-
Operation Display:
-
10.1 inch
-
Customer display:
-
LED 8N
-
Receipt Printer:
-
built in 58mm thermal printer
-
Cash drawer:
-
Embedded cash drawer,12V magnetic plug, 5 coins 4 note
-
Touch Panel:
-
capacitive touch screen
-
for food and beverage retail store:
-
jewelry and accessory store, Casual Dining,Family Style Restaurants,
-
Operation System:
-
LINUX
-
CPU:
-
A5
-
Hard Disk Capacity:
-
8GB
1,The curing software and operating system,unpack the new machine , plug and play.
2,No-installation, training-free ,save the labor.
3,New operator can learn to use the POS in 5 minutes, do not be afriad of cashier'sudden resignation.
4,POS software and hardware integration, after sale job is simple, fast.
5,Open source operating system, no virus violation, no copyright dispute.
6,The industrial computer core architecture, industrial standarded definition, long supply duration.
7,Cost-effective, it is worth having .
| Main board(A5) | |||
| No. | Name | Configuration | Instruction |
| 1 | CPU | Atmel SAMA5 | Dominant frequency 500MHz |
| 2 | RAM | 256M Byte | |
| 3 | FLASH | 2G | |
| 4 | USB | 2 | Can be expanded to 3 |
| 5 | LAN port | 1 | Network port speed 10M / 100M |
| 6 | serial port | 2 | |
| 7 | cash box port | 1 | RJ11 standard port cash drawer, DC-12V driver |
| 8 | Buzzer | 1 | |
| 9 | RTC clock | 1 | main board battery supply power when pos machine is off. |
| 10 | LED8 digital tube display | 1 | |
| 11 | LVDS port | 1 | According to models requestment,choose to use 2 or 1 LCD screen |
| 12 | HDMI high-definition interface | 0 | |
| 13 | Resistance touch screen interface | 1 | choose according to the requirments of models |
| 14 | Capacitive touch screen interface | 0 | choose according to the requirments of models |
| 15 | Audio interface | 0 | |
| 16 | WIFI | 0 | choose according to the requirments of models |
| 17 | 3G communication | 0 | |
| 18 | Less overvoltage detection | 1 | The POS protects the field data when machine suddenly cut off. |
| Other hardware specification | |||
| No. | Name | Configuration | Instruction |
| 1 | Main display | 10.1 inch(1024*600) | The display for POS operator. |
| 2 | Main operation touch screen | 10.1 inch resistive touch screen | The touch screen for POS user operating |
| 3 | Customer display | LED8 digital tube display | Display billing information |
| 4 | Printer | 58mm thermal printer | |
| 5 | Cashbox | 335*368*80MM | |
| 6 | Shell | ABS | Plastic shell |
| 7 | Power Supply | DC-12V 4A | Connect to external AC Adapter |
| 8 | POS dimension | Package size:50*43*34CM | |
| External equipment | |||
| No. | Name | Configuration | Instruction |
| 1 | USB barcode scanner | 1 | Specify brand model has been debugged |
| 2 | Serial port printer | 1 | 58mm or 80mm thermal printer |
| 3 | LAN port printer | 1--255 | 58, 80mm thermal printer, be used for kitchen printing |
| 4 | label printer | 1 | |
| 5 | Serial port electronic scales | 1 | Specify brand model has been debugged |
| 6 | IC card reader | 1 | Specify brand model has been debugged |
| 7 | Magnetic stripe card reader | 1 | Specify brand model has been debugged |
| 8 | Mobile Phone APP | 1--255 | External WIFI router, mobile phone connection |
| Basic function | |||
| No. | Name | Configuration | Instruction |
| 1 | Commodity Management | 60000 | Users input their own goods as their requests. |
| 2 | Department Management | 10000 | Users according to the need to do goods classified management |
| 3 | Cashier management | 1000 | Control the POS by password setting |
| 4 | Clerk management | 1000 | Can make sales records directly linked to the sales staff |
| 5 | VIP Management | 20000 | Can achieve membership management, such as VIP point,prepaid |
| 6 | Table Management | 2000 | Table management can be achieved |
| 7 | Food Package management | 1000 | Food Package management can be achieved |
| 8 | Stock Management | Purchase management, check stocks | |
| 9 | Sales function keys management | customized sales function keys, more flexible operation | |
| 10 | Sales Function | Easy to operate and perfect sales function | |
| 11 | Sales receipt management | Flexible and powerful sales receipt printing management | |
| 12 | Various reports | Check various reports within different time periods; the financial report, the plu report, department reports, cashier report, clerk report, VIP report, Table report, Food package report and so on | |
| 13 | Electronic journal | 6000 | Up to view and print the lastest 6,000 flow record sales Electronic journal |
| 14 | Information backup and import | Export to Backup or import information by the U disk | |
| 15 | External barcode scanner | 1 | Suggest to use Specify brand model has been debugged |
| 16 | External kitchen printer | 1--255 | 58,80mm thermal printer |
| 17 | External label printer | 1 | Specify brand model has been debugged |
| 18 | External electronic scale | 1 | Specify brand model has been debugged |
| 19 | External magnetic stripe card | 1 | Specify brand model has been debugged |
| 20 | External IC card reader | 1 | Specify brand model has been debugged |
| 21 | Mobile phone APP | 1-255 | Read and write information to the POS, view the report from the POS |
| 22 | Cloud services | Wechat payment, Alipay, VIP management, data preservation | |
Specification:
pos system for pos cash register
About Software:
§Plug and play.
§Fully featured embedded application software with Various interface:
Business administration ,Inventory management, rounding ,returns Sales ,taste increase sales, membership card, package and dine-in or take-away Management ,foreign currency ,receipt header &Footer etc.
§User friendly quick and intuitive programming and operation with rich GUI (graphic user interface).
§Remote access and control via the internet for software updates.
§Kitchen Control: Auto transmission of food and drink orders, together with preparation and cooking instructions to kitchen and dispense printers with auto backup and redirection of printing should a print problem occur.
§Price Control: Multiple Prices for one PLU ,Allows discounted prices to be programmed. VIP price, common price and cost.
§Security: All transaction data is recorded in an electronic journal that can be reprinted. Password security levels for sales, reports and programming.
§Management Reporting: Available reports include open table report, group sales, financial reports, PLU item sales, time zones, Cashier, clerk,time and attendance payment analysis. Daily and period to date.
§Comprehensive X and Z Sales reports :Including hourly, daily, periodically for PLUs, Departments, Clerks, Tables, etc. Instant on screen and ability to print.
Looking for global Distributors/Dealers/Resellers .
Why to be our distributors?
As a NOBLY distributors you will find a range added benefits and support. NOBLY can provide you with excellent Product Training, Service and Advise with a personal touch. Well stocked warehouse with spare parts at a great rate and speedy delivery. Volume based and promotional discounts are available.
Widely used in applications such as restaurant, retail, F&B,convenience store, boutique, food palace, jewelry and accessory store, Beverage store, vehicle sales,Casual Dining,Family Style Restaurants, Smart Restaurants ,Bar,Quick Service Restaurants,Sandwich,Bakery,Coffee,Tea,Milk,Taco,Hamburger,Ice Cream and Yogurt,Specialty Foods,Specialty Gourmet,small grocery,Mini Mart, open market, small retail shop,Salon,Hardware stores,and so on..
NOBLY devotes to customized service on the all in one touch screen POS cash registers system. We are eager to provide the specification and configuration that can leverage our latest technology to improve the quality / unique embedded POS terminal for businesses approach as well.
Design
From Motherboard layout design to System and Mechanical design, everything is done in-house at NOBLY with our tills in customization and innovation.
Production
In addition to our design capabilities, 100% of products are made in-house at NOBLY production facility from start to finish thus ensuring control in quality and flexibility.
Team
NOBLY’s team of dedicated staff including sales, product managers, engineers and customer service representatives are there to answer any questions or inquiries you have in the shortest amount of time.
NOBLY offers different specifications in LCD as size : 7”/10.1'' / 12.1” / 15” , different color: White/Black/Red, different operation language: Chinese/ English/other OEM languages
