pond liner welding machine welding machine geomembrane welding machine

pond liner welding machine welding machine geomembrane welding machine

FOB Reference Price: Get Latest Price

≥1 Square meters

US $2000

≥10 Square meters

US $1750

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Frequency:: 50/60HZ

Welding Area:: 100mm-150mm

Dimensions:: 380mm(L)*280mm(W)*320mm(H), 310*240*210mm

Usage:: Plastic liner Welding

Weight (KG):: 13 KG

Power (kW):: 1800

Marketing Type:: New Product 2021

Model:: HJJ-ZL900

Product name:: Plastic Liner Welding Machine

Type:: Semi-automatic

Welding material:: PP HDPE PE PVC EVA

Certificate:: CE ISO

Welding speed:: 0.5-5.0m/min

Brand:: ZHONGLOO

Package:: Wooden Cartoon

After Warranty Service:: Video technical support

Quick Details

Place of Origin:: Anhui, China

Brand Name:: Zhongloo

Voltage:: 110V/220V/Customized

Frequency:: 50/60HZ

Welding Area:: 100mm-150mm

Dimensions:: 380mm(L)*280mm(W)*320mm(H), 310*240*210mm

Usage:: Plastic liner Welding

Weight (KG):: 13 KG

Power (kW):: 1800

Marketing Type:: New Product 2021

Model:: HJJ-ZL900

Product name:: Plastic Liner Welding Machine

Type:: Semi-automatic

Welding material:: PP HDPE PE PVC EVA

Certificate:: CE ISO

Welding speed:: 0.5-5.0m/min

Brand:: ZHONGLOO

Package:: Wooden Cartoon

After Warranty Service:: Video technical support

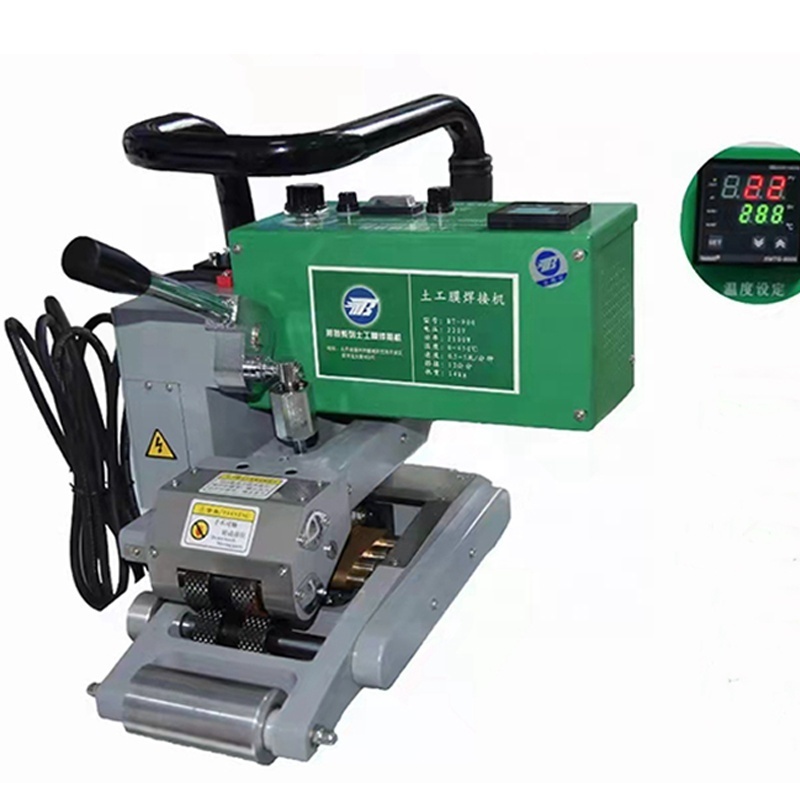

Geomembrane Welding Machine-ZL900

1.Geomembrane Welding machine description:
GW950 Geomembrane welding machine can weld geo-membrane of various thickness and are applicable for welding of all thermal-fused material such as LDPE, PVC, HDPE, EVA, PP and so on.
The control of this series of welding machine adopts PID automatic thermostatic control with high control accuracy and low temperature fluctuation; speed control adopts PWM automatic voltage and speed regulation circuit, driven by DC servo motor, with great output torque and the operating is stable.
It can maintain a constant speed on the condition of creeping, vertical creeping and variable road load. Also this series of welding machine is stable in performance despite of external temperature and voltage variation.There are two types GW800 and GW800D (with display screen) for your option.

FEATURES AT A GLANCE

1.COMPACT DIMENSIONS

2. SAFETY FRAME

3.SIMPLE CONTROL

4.EASY MAINTENANCE

5. VERSATILITY

6.EXTENDING UNDERCARRIAGE

Product Paramenters

Brand &Type	Geomembrane Welding Machine	Welding width	12.5mm×2, interior cavity 12mm
Voltage	220V/110V/Customized	Seam strength	≥85% base material(tensile resistant in shear direction)
Power	800W-1100W	Net Weight	13kg
Frequency	50/60Hz	Gross Weight	15kg
Welding Speed	0-5m/min	Usage	geomembrane wedge welder
Heating temperature	20-450℃	Plug Standard	Euro Plug/ U.S. Plug/British Plug/Plug adaptor
Thickness of material	0.2mm--1.5mm	Overlap width	100mm

Operating Procedures

1. The control case is leveled and the upper and lower pressure wheels are separated to prevent the pressure wheels from idling and damaging the machine after starting up

2. Turn on the power and turn on the power switch.

3. First set the temperature, the normal thickness of the material is 1mm, the temperature is adjusted to about 350 ℃.

4. Adjust the welding speed according to the thickness of the material, according to the normal 1mm material, the speed is adjusted to 2.5m/min.

5. When the red light of the control box turns to green, put the materials to be welded from the left and right sides of the machine respectively, and the joystick rotates from bottom to top to be 90° with the ground.

6. Adjust the speed according to the welding effect, the high temperature is fast, on the contrary, the low temperature is slow. (Try not to adjust the temperature and speed in the middle of the process) Set the temperature first when starting up. If the material is thin or the first time you operate, set Wendy to a lower value when starting up.

7. After welding, immediately level the joystick to separate the upper and lower pressing wheels (to prevent the pressing wheels from being damaged by high temperature), then adjust the temperature speed to the lowest, and finally turn off the power after shutting down.

PRODUCT CONFIGURATION

High-quality stainless steel pressure roller, high temperature resistance, smooth and firm welding effect, pressure can be adjusted according to the thickness of different membranes

High-quality copper alloy heating plate, with automatic temperature control detection system, fast heating speed, heating time 1-5 seconds, accurate temperature

The production process has undergone aging and reliability testing to stabilize overvoltage and overcurrent, constant power, and constant temperature control systems

FAQ

1.Why choose us?
We are manufacturer of plastic welders for more than 10 years with technicians team and after sales service.
2.How to guarrantee the quality?
Warranty is 1 year,if there is any quality problems ,we accept return or give spare parts for free.
3.How to solve if it is necessary to repair?
Our technicians will check problems that you pass to,and offer solving resolutions in short time.
4.Delivery?
1-5pcs is always on stock,we deliver in 3days after payment.
5.Customized products accepted?
Yes ,we make OEM products with labels and colors ,also distributors all over the world wanted.
