Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
ZDK
-
Model Number:
-
ZDK-CY-VH03
-
Dimensions:
-
56*133*27.5mm
-
Frequency Range:
-
156MHz - 157.4 MHz/156MHz - 163.2 MHz
-
Product name:
-

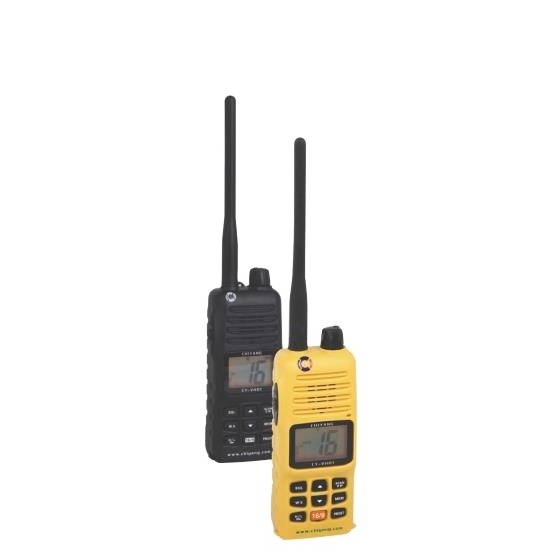

explosion-proof marine vhf radio
-
Type::
-
explosion-proof VHF RADIO
-
Use::
-
For marine
-
Modle number::
-
CY-VH03
-
Operating temperature range:
-
-20~ 55 degree
-
Warranty:
-
1 Year
-
TX:
-
156.025 MHz - 157.425 MHz
-
RX:
-
156.050 MHz - 163.275 MHz
-
Radio Type:
-
Handheld Radio Vhf Uhf
-
Color:
-
Black
Quick Details
-
Talk Range:
-
2-3 miles
-
Terminal style:
-
Handheld
-
Storage Channel:
-
98
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
ZDK
-
Model Number:
-
ZDK-CY-VH03
-
Dimensions:
-
56*133*27.5mm
-
Frequency Range:
-
156MHz - 157.4 MHz/156MHz - 163.2 MHz
-
Product name:
-
explosion-proof marine vhf radio
-
Type::
-
explosion-proof VHF RADIO
-
Use::
-
For marine
-
Modle number::
-
CY-VH03
-
Operating temperature range:
-
-20~ 55 degree
-
Warranty:
-
1 Year
-
TX:
-
156.025 MHz - 157.425 MHz
-
RX:
-
156.050 MHz - 163.275 MHz
-
Radio Type:
-
Handheld Radio Vhf Uhf
-
Color:
-
Black
Specification of explosion Marine VHF radio telephone:
1.GENERAL
Frequency Ranges : TX: 156.025 MHz - 157.425 MHz
RX: 156.050 MHz - 163.275 MHz
Channel Spacing : 25 kHz
Frequency Stability : ±5 ppm
(–4 °F to +140 °F [–20 °C to +60 °C])
Emission Type : 16K0G3E
Antenna Impedance : 50 Ω
Supply Voltage : 7.4V DC
Current Consumption : 320 mA (Receive, Typical at AF MAX.)
50 mA (Standby), 1.6 A / 0.7 A (TX: 3.2 W / 1W)
Operating Temperature : –4 °F to +140 °F (–20 °C to +60 °C)
Case Size (W x H x D): 2.20” x 5.24” x 1.08” (56 x 133 x 27.5 mm)
(w/o knob & antenn
2. TRANSMITTER
RF Power Output : 3.2 W / 1 W (@7.4 V )
Modulation Type : Variable Reactance
Maximum Deviation : ±5 kHz
Spurious Emission : –75 dBc typical
Microphone Impedance : 2 k Ω
3. RECEIVER
Circuit Type : Double-Conversion Superheterodyne
Intermediate Frequencies : 1st: 21.7 MHz, 2nd: 450 kHz
Adjacent Channel Selectivity : 70 dB typical
Intermodulation : 68 dB typical
Hum & Noise Ratio : 40 dB typical
Sensitivity : 0.18 μV for 12 dB SINAD
Selectivity : 25 kHz (–70 dB)
AF Output (Internal SP): 700 mW @16 Ω for 10 % THD (@7.4 V)
