Working Voltage: DC 3V (CR2032) battery
Receive Sensitivity: -98dBm
Transmit Power: ＜19dBm
Standby Consumption: 0.8uA
Control Distance: ≥50m Open Area
Key Life: ≥50000 times
ZigBee 3.0, Frequency: 2.4GHz
Life of battery: 1 years (General use)
Indicator Light: Green LED
Explore More Products
- Product Details
- {{item.text}}
Quick Details
-
Customized support:
-
Packing, PID
-
Place of Origin:
-
Wenzhou
-
Brand Name:
-
MOES
-
Model Number:
-
ZT-SY-RD
-
Mechanical Life:
-
50K times
-
Name:
-
Zigbee Knob Scene + Dimmer Switch
-
Function 1:
-
Scenario mode
-
Function 2:
-
Remote Dimmer Mode (only for zigbee bulb)
-
Working Voltage:
-
DC 3V (CR2032) battery
-
Receive Sensitivity:
-
-98dBm
-
Transmit Power:
-
<19dBm
-
Standby Consumption:
-
0.8uA
-
Control Distance:
-
≥50m Open Area
Quick Details
-
Max. Current:
-
battery powered
-
Max. Voltage:
-
DC 3V (CR2032)
-
Network:
-
ZigBee 3.0, Frequency: 2.4GHz
-
Customized support:
-
Packing, PID
-
Place of Origin:
-
Wenzhou
-
Brand Name:
-
MOES
-
Model Number:
-
ZT-SY-RD
-
Mechanical Life:
-
50K times
-
Name:
-
Zigbee Knob Scene + Dimmer Switch
-
Function 1:
-
Scenario mode
-
Function 2:
-
Remote Dimmer Mode (only for zigbee bulb)
-
Working Voltage:
-
DC 3V (CR2032) battery
-
Receive Sensitivity:
-
-98dBm
-
Transmit Power:
-
<19dBm
-
Standby Consumption:
-
0.8uA
-
Control Distance:
-
≥50m Open Area
Tuya ZigBee Smart Knob Switch Wireless Scene Switch Button Scene Button Controller Battery Powered Automation Scenario
Product Paramenters
|
Product
|

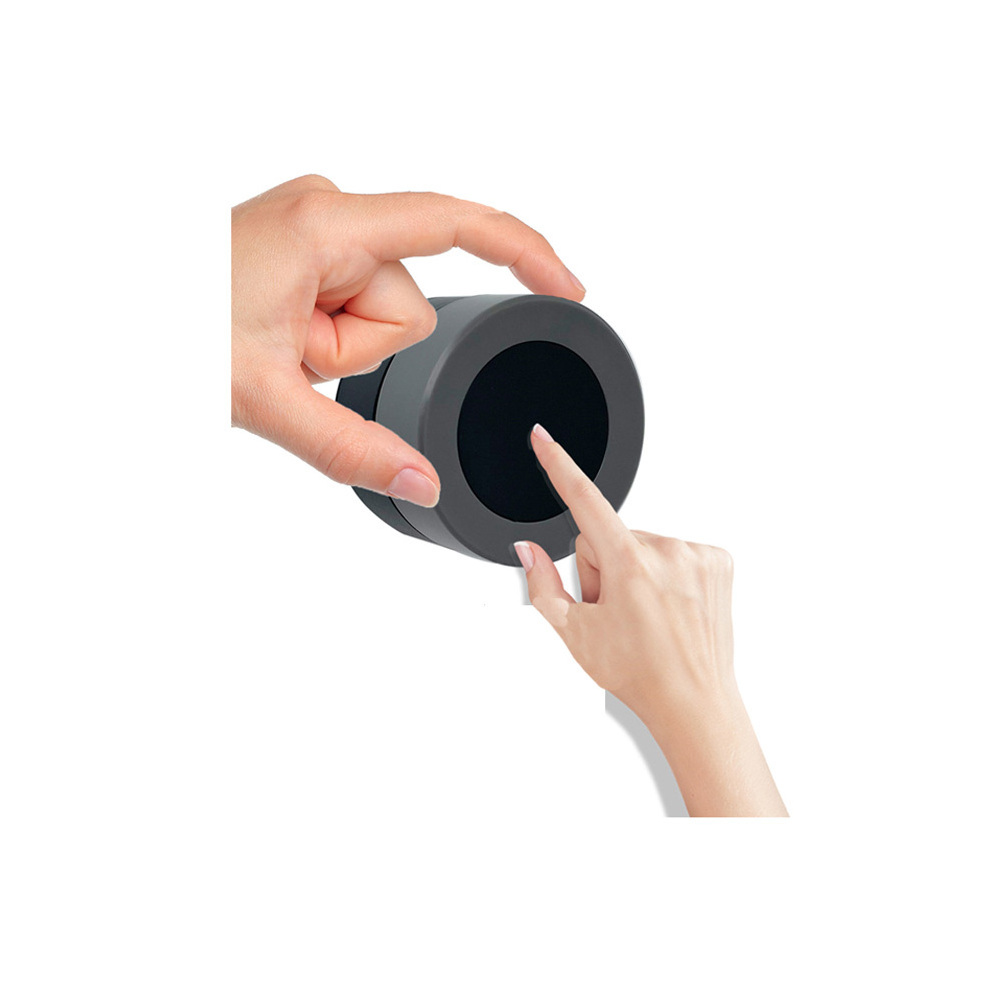

Zigbee Scene + Dimmer Knob Switch
|
|
Remote Control
|
1. Scenario mode
2. Remote Mode (only for zigbee bulb): to remote control bulb for ON/OFF, Brightness, CCT, RGB
|
|
Function
|
Timing, Schedule, Smart User-defined Scene Automation, Family Member Sharing Control, Synchronization
|
Zigbee Scene + Dimmer Knob Switch
Details Images
1. Two-in-one device for wireless scene and dimmer switch:A new idea for ZigBee scene switch to create various smart scenes for your Tuya smart devices in Smart Life App;Tap-to-run to get another easier control for all tuya smart devices with simple operations on the switch.
2. Wireless control for ZigBee dimmer lamp under remote mode: Add the smart knob switch into Tuya smart ZigBee gateway and then add smart ZigBee lamp bulb under the remote dimmer interface in App for wireless remote control to your lamp.(Note:Only ZigBee lamp can be added for control)
3. Pair with Tuya ZigBee gateway: Tuya ZigBee gateway is a must for this rotary scene switch, which is a bridge for all ZigBee smart devices under Tuya Smart APP for normal use.
4. Four operations under remote mode to meet different demands: Single press to ON/OFF the bulb, rotate to normal dimmer, press and rotate to set the color temperature, and long press more than 3 seconds to set color, which clarifies the real-sense of value for money with this mini excellent device.
5. Create multiple intelligent scenes for Tuya smart devices in App under scenario mode: To create any smart automation as you want on your smart phone app to start your another intelligent lifestyle, no more voice command needed, no more time to open your app, only simple operation required to trigger the scenes you have set, when you are tired from one-day work, such as home mode, shower mode or sleep mode.
Note: Intelligent linkage to tuya smart devices for normal use only, can not be used alone without tuya smart device.
2. Wireless control for ZigBee dimmer lamp under remote mode: Add the smart knob switch into Tuya smart ZigBee gateway and then add smart ZigBee lamp bulb under the remote dimmer interface in App for wireless remote control to your lamp.(Note:Only ZigBee lamp can be added for control)
3. Pair with Tuya ZigBee gateway: Tuya ZigBee gateway is a must for this rotary scene switch, which is a bridge for all ZigBee smart devices under Tuya Smart APP for normal use.
4. Four operations under remote mode to meet different demands: Single press to ON/OFF the bulb, rotate to normal dimmer, press and rotate to set the color temperature, and long press more than 3 seconds to set color, which clarifies the real-sense of value for money with this mini excellent device.
5. Create multiple intelligent scenes for Tuya smart devices in App under scenario mode: To create any smart automation as you want on your smart phone app to start your another intelligent lifestyle, no more voice command needed, no more time to open your app, only simple operation required to trigger the scenes you have set, when you are tired from one-day work, such as home mode, shower mode or sleep mode.
Note: Intelligent linkage to tuya smart devices for normal use only, can not be used alone without tuya smart device.
