- Product Details
- {{item.text}}
Quick Details
-
Diameter of driving wheel:
-
50mm
-
Running speed:
-
0-0.2m/s
-
Chassis height:
-
17mm
-
Track width:
-
40mm
Quick Details
-
Place of Origin:
-
Shanxi, China
-
Brand Name:
-
HY
-
Design size:
-
363*310*99mm
-
Diameter of driving wheel:
-
50mm
-
Running speed:
-
0-0.2m/s
-
Chassis height:
-
17mm
-
Track width:
-
40mm
Product Description
Specification
|
Item
|
Parameter
|
|
Design size
|
363*310*99mm
|
|
Diameter of driving wheel
|
50mm
|
|
Track width
|
40mm
|
|
Design weight
|
7kg
|
|
Main material
|
Stainless steel 304/aluminum
|
|
Track material
|
Polyurethane, magnet composite
|
|
Rated power
|
41.37W*2
|
|
Motor selection
|
Hollow cup reducer
|
|
Motor speed
|
77RPM
|
|
Inner warehouse size
|
210*178*72mm
|
|
Adsorption material
|
Magnetic material (iron)
|
|
Adsorption method
|
Permanent strong magnet
|
|
Running speed
|
0-0.2m/s
|
|
Chassis height
|
17mm
|
|
Protection level
|
IP64
|
|
Motor torque
|
4.6N·m
|
|
Climbing angle
|
90°
|
|
Maximum load
|
4kg (vertical)
|

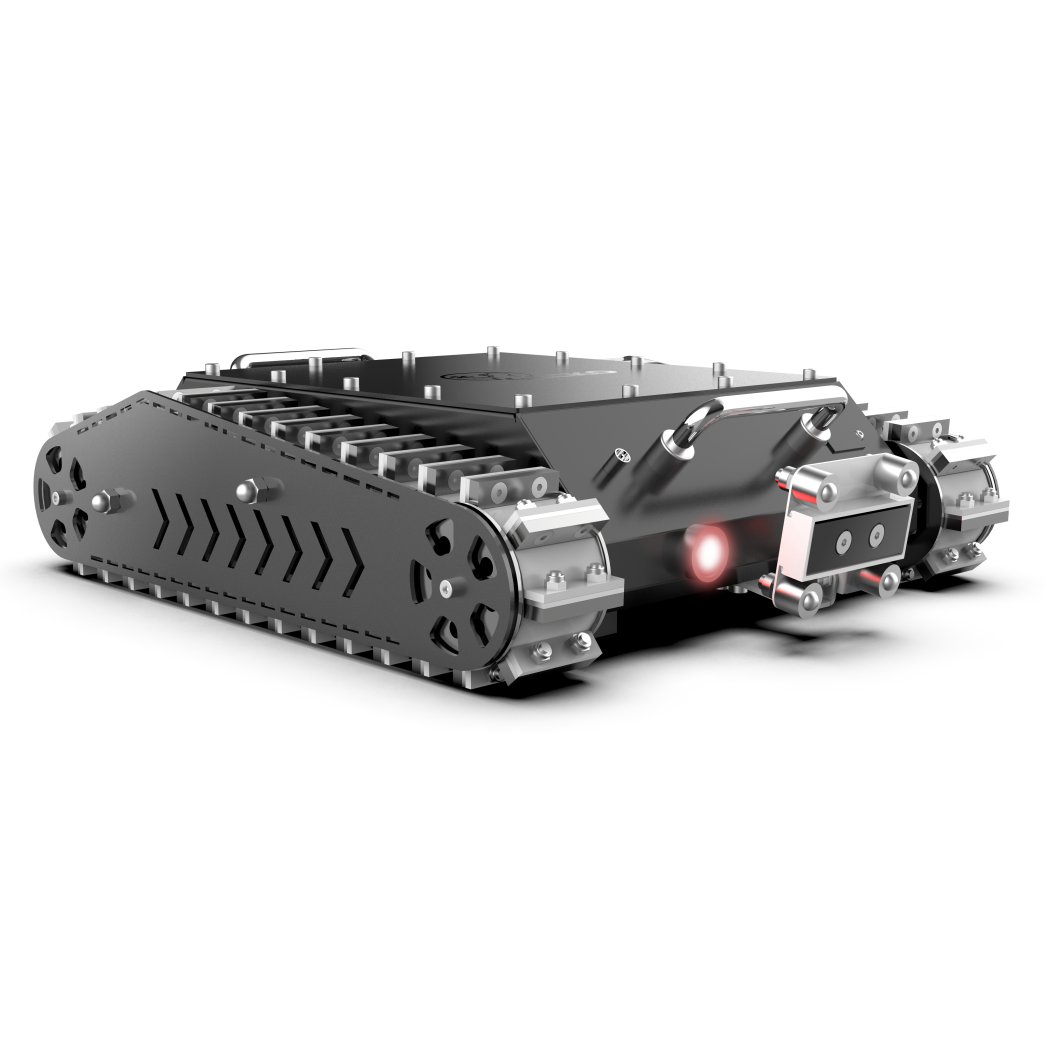

Details Images
