5000M3 2500Ton Lpg Terminal Spherical Storage Tank Price For Lpg Gas Lpg Plant Epc Solution

5000M3 2500Ton Lpg Terminal Spherical Storage Tank Price For Lpg Gas Lpg Plant Epc Solution

FOB Reference Price: Get Latest Price

≥1 Pieces

US $2536000

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Core Components:: Pressure Vessel

Dimension(L*W*H):: Customized

Capacity:: 120M3 To 10000M3

Weight:: 50000

Inner Material:: Stainless steel, carbon steel

Outer Material:: SA-516, SA-537 CL1, SA-537 CL2, Q370R, etc.

Design Pressure(MPa):: 0.1-99MP

Design Standard:: ASME, GOST, GB

Working Temperature(℃):: -196 - 50 ℃, -20 to -196

Volume Available(m³):: 20-10000

Material:: Q245R , 16MnDR, 07MnNiMoDR ,08Ni3DR , Cr18Ni9(S30408), Etc.

Medium:: LOX/LIN/Lar/LCo2/LNG/LPG

Air Tightness Test Pressure::: 1.77 MPa or customized

Hydrostatic Test Pressure::: 2.54 MPa or customized

Wind Pressure::: 1500 Pa or customized

Filling ratio::: 0.9 or customzied

Quick Details

Volume (m³):: 120M3 To 10000M3 Or Customized

Max Working Pressure(MPa):: 100MP

Place of Origin:: China

Core Components:: Pressure Vessel

Dimension(L*W*H):: Customized

Capacity:: 120M3 To 10000M3

Weight:: 50000

Inner Material:: Stainless steel, carbon steel

Outer Material:: SA-516, SA-537 CL1, SA-537 CL2, Q370R, etc.

Design Pressure(MPa):: 0.1-99MP

Design Standard:: ASME, GOST, GB

Working Temperature(℃):: -196 - 50 ℃, -20 to -196

Volume Available(m³):: 20-10000

Material:: Q245R , 16MnDR, 07MnNiMoDR ,08Ni3DR , Cr18Ni9(S30408), Etc.

Medium:: LOX/LIN/Lar/LCo2/LNG/LPG

Air Tightness Test Pressure::: 1.77 MPa or customized

Hydrostatic Test Pressure::: 2.54 MPa or customized

Wind Pressure::: 1500 Pa or customized

Filling ratio::: 0.9 or customzied

Large-Scale Cryogenic Liquid Storage Solutions

5000M3 2500Ton Lpg Terminal Spherical Storage Tank Price For Lpg Gas Lpg Plant Epc Solution

Product Description

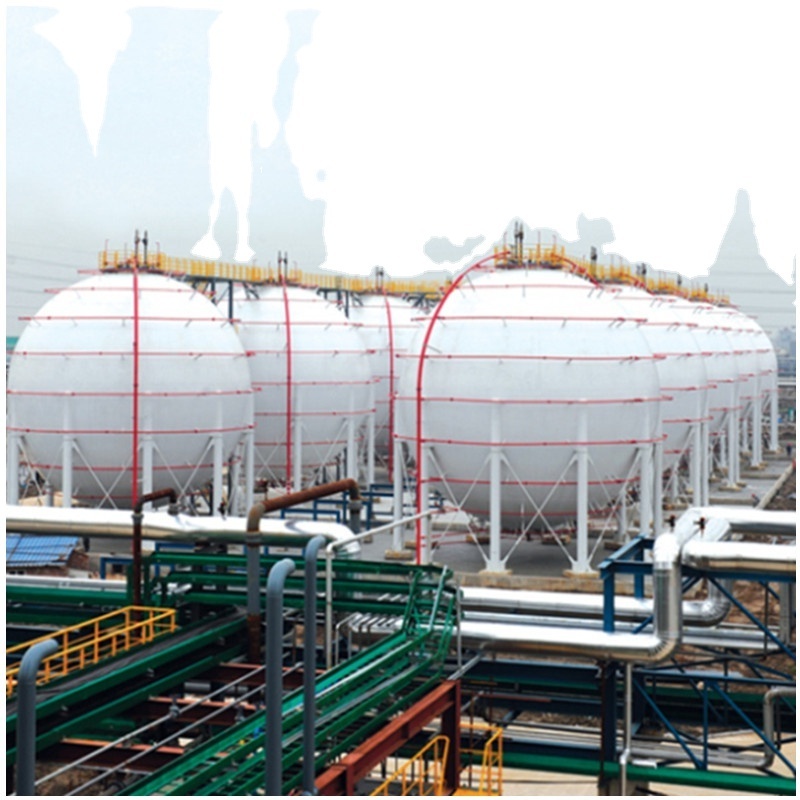

Spherical Type Tank

Spherical shaped storage are used in gas and liquid storage in many industries including midstream, downstream, petrochemical,

chemical, waste water, and aerospace. Spheres can store many products such as anhydrous ammonia, LPG, NGL, gasoline, naphtha, butadiene, ethylene, hydrogen, oxygen, nitrogen, argon, LNG, biogas, sewage gas and waste water.
A spherical shape offers uniform stress
distribution under internal loading resulting in highly efficient pressurized storage. Sphere storage results in the lowest land space for pressurized storage and offers lower costs for
foundations, coatings, accessories, and piping than other options.

Spherical Tank Type

The shape of the spherical tank is spherical and ellipsoidal. The vast majority are single-layer spherical shells. When storing liquefied gas at low temperature and low pressure, double spherical shells are used, and thermal insulation materials are filled between the two spherical shells. The most widely used is the single-layer spherical spherical tank. Th e spherical shell is made of a plurality of spherical petals pressed into a spherical surface and welded together by the orange petal split method, the football split split method or the football orange split hybrid split method. The most common supporting structure of spherical tank is equatorial tangent type, followed by symmetrical type, skirt type, semi-buried type and basin type. The ellipsoid spherical tank is usually used to store liquid hydrocarbons (such as gasoline, etc.) with a saturated vapor pressure slightly higher than atmospheric pressure and strong volatility at room temperature. When the volume is larger, the compound ellipsoid spherical tank should be used.

Spherical Tank Features

Product Parameters&Installation Process

Capacity

120M3-10000M3

Medium

Liquid Oxygen/Liquid Nitrogen/Liquid Argon/LNG/Liquid Carbon Dioxide/Liquid Ammonia/Liquefied Petroleum Gas/Oxygen/Nitrogen/Argon/Dimethyl Ether/Carbon 4/Carbon

5/Chloromethane/Propane/Butane/Ether/Chloroethane/Light Hydrocarbon Products, Etc.

Material

Q245R (0/-20℃)、 Q345R (0/-20℃) 、 16MnDR (-40℃ )、 Q370R (-20℃ ) 、 07MnMoVR (-20℃ ) 、07MnNiMoDR (-50℃ ) 、JFE-HITEN610U2 (-20℃ )、JFE-HITEN610U2L (-50℃ ) 、08Ni3DR (-100℃ ) 、15MnNiNbDR (-20℃ ) 、 SA-516Gr70 、 SA-537CL.2 0 (-20℃ ) Cr18Ni9(S30408) (-196℃ ), Etc.

Maximum Thickness Of Spherical Shell Plate

68MM

Remark

Can be customized according to the specific needs of customers

Project Case Studies

Related Products

Flat Bottom Tank

Flat bottom tanks are storage structures that present a round cylinder shape and a flat base. These systems can help preserve and store a wide array of substances and can thus be fabricated to specifically meet each substance and business needs. It represent an efficient storage system for a number of substances, including cryogenics and liquefied gases. As more and more businesses and industries are dependent on optimal storage of substances in order to have immediate access to them, flat bottom tanks are increasingly demanded.

Capacity(m3)

1000

2000

3000

5000

8000

10000

20000

30000

50000

Inner Tank Size（mm）

12400*14235

13500*15750

16200*17195

20000*19415

23000*21810

25000*22000

38000*20000

41500*26000

50000*38600

Outer Tank Size（mm）

13000*14805

16000*18500

12400*14235

22400*21870

25300*25000

40000*29760

43500*35198

52000*38600

Medium

LIN/LNG/LOX/LPG/LAR/LNH3/Liquid Ethylene/Liquid Ethane/Liquid Propane

Working Pressure（Kpa）

10~50

Remark

Can design manufacture and install storage tanks of any size between 200-50000m³ according to the needs of users

We design our gas storage tanks with double- wall steel structures using high tech insu-lating materials (cellular glass, expanded perlite, rockwool, etc.).

All the cryogenic storage equipment we produce complies with the most recognized quality and safety certificates on an international level.
Mechanical and seismic design:
• API620, API650, ASME
• EN14620, EN14015, EUROCODE
Relevant certifications: • ISO • IAF • CNAS
Other regulations used:
• EIGA/CGA/127/13/E.
• NFPA 59A.
