Quick Details
-
Product name:
-
Mini sliding glass door chest freezer with 100L
-
Voltage/Frequency:
-
220-240V/50Hz
-
Cooling type:
-
Static cooling
-
Gross/Net volume:
-
97/77L
-
Gross/Net weight:
-
38/35Kgs
-
External Dimension(W*D*H):
-
600*522*825mm
-
Packaging Dimension(W*D*H):
-
660*582*885mm
-
Baskets Number:
-
1, Coated Steel
-
Defrosting way:
-
Manual
-
Certification:
-
CE,CCC
Quick Details
-
Style:
-
Single-Temperature
-
Capacity:
-
97
-
Place of Origin:
-
China
-
Product name:
-
Mini sliding glass door chest freezer with 100L
-
Voltage/Frequency:
-
220-240V/50Hz
-
Cooling type:
-
Static cooling
-
Gross/Net volume:
-
97/77L
-
Gross/Net weight:
-
38/35Kgs
-
External Dimension(W*D*H):
-
600*522*825mm
-
Packaging Dimension(W*D*H):
-
660*582*885mm
-
Baskets Number:
-
1, Coated Steel
-
Defrosting way:
-
Manual
-
Certification:
-
CE,CCC

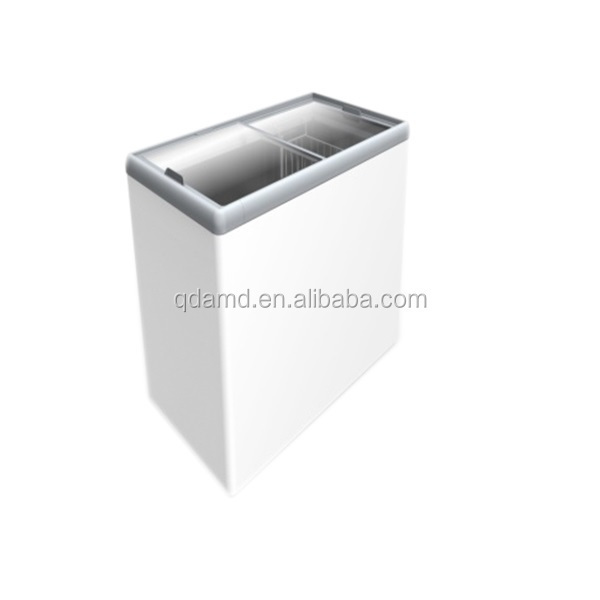

Mini sliding glass door chest freezer with 100L
SD-100F
Specification of SD-100F
| Model No. | SD-100F | SD-200F | SD-300F | SD-400F | SD-500F | SD-600F | |
| Technical Data | |||||||
| Gross Volume | L | 97 | 194 | 273 | 347 | 423 | 505 |
| Net Volume | L | 77 | 156 | 215 | 275 | 337 | 403 |
| Baskets Number | EA | 1, Coated Steel | 1, Coated Steel | 1, Coated Steel | 1, Coated Steel | 1, Coated Steel | 1, Coated Steel |
| Climiate Class | °C/°F | ST | ST | ST | ST | ST | ST |
| Certificate | / | CCC,CE | CCC,CE | CCC,CE | CCC,CE | CCC,CE | CCC,CE |
| Climate(Temperature/RH) | °C / % | 38℃, 70%RH | 38℃, 70%RH | 38℃, 70%RH | 38℃, 70%RH | 38℃, 70%RH | 38℃, 70%RH |
| Temperature Range | °C/°F | -10~-26℃ | -10~-26℃ | -10~-26℃ | -10~-26℃ | -10~-26℃ | -10~-26℃ |
| Shell Color | / | White | White | White | White | White | White |
| Case frame color(Top frame color) | / | Gray | Gray | Gray | Gray | Gray | Gray |
| Electrical Data | |||||||
| Voltage/Frequency | / | 220-240V/50Hz | 220-240V/50Hz | 220-240V/50Hz | 220-240V/50Hz | 220-240V/50Hz | 220-240V/50Hz |
| Defrosting way | / | Manual | Manual | Manual | Manual | Manual | Manual |
| Temperature Control | / | Mechanical | Mechanical | Mechanical | Mechanical | Mechanical | Mechanical |
| Refrigeration Data | |||||||
| Refrigeration type | / | Direct cooling | Direct cooling | Direct cooling | Direct cooling | Direct cooling | Direct cooling |
| Refrigerant | / | R600a;R134a | R600a;R134a | R600a;R134a | R600a;R134a | R600a;R134a | R600a;R134a |
| Blow Agent | / | Cyclo/Isopentane | Cyclo/Isopentane | Cyclo/Isopentane | Cyclo/Isopentane | Cyclo/Isopentane | Cyclo/Isopentane |
| Weight & Dimension Data | |||||||
| Gross weight | Kg | 38 | 49 | 61 | 72 | 82 | 91 |
| Net weight | Kg | 35 | 45 | 56 | 65 | 73 | 81 |
| External Dimension(L*W*H) | mm | 600*522*825 | 934*574*825 | 1014*694*825 | 1222*694*825 | 1434*694*825 | 1664*694*825 |
| Packaging Dimension(L*W*H) | mm | 660*582*885 | 994*634*885 | 1094*774*885 | 1302*774*885 | 1514*774*885 | 1744*774*885 |
| Stuffing in 40'HC (wheel separated) | Set | 215 | 126 | 95 | 81 | 66 | 57 |
Features & Benefits:
*Toughened and reflective glass door
*Hight efficiency compressor and quick freezing
*Glass door with double curve
*Complete case frame
*Human design of handles,more comfortable
*Class 4+ standard,The design and testing is according to international company standard,and it can used for tropical climate area
* One pcs of cabinet frame is easy to clean the cabinet frame and the cooling seal is better,that is the international company commercial chest freezer's testing standard
*Low energy consumption and noise
*CFC Free
Optional:
* Graphics
* Asset tag
* Mesh basket & partition
* Electronic or Analog temperature display
* Caster breaker
* FRID
* Grey or blue color
* Inner LED light
* Power offer alarm
