Quick Details
-
Color:
-
White or customized
-
Door:
-
steel security door
-
frame:
-
galvanized steel+powder coating
-
wall:
-
steel sandwich panel
-
floor:
-
MGO board
-
roof:
-
steel sandwich panel
-
window:
-
pvc sliding window
-
bathroom and kitchen:
-
can be added according to request
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
DINGRONG
-
size:
-
W3M*L5.95M*H2.8M
-
Color:
-
White or customized
-
Door:
-
steel security door
-
frame:
-
galvanized steel+powder coating
-
wall:
-
steel sandwich panel
-
floor:
-
MGO board
-
roof:
-
steel sandwich panel
-
window:
-
pvc sliding window
-
bathroom and kitchen:
-
can be added according to request
China low cost modular mobile tiny portable prefabricated house homes prefab office container usa sleep pod
HOT SALE!!!
container frame collapsible container house folding container house expandable container house
contact us to get detailed information

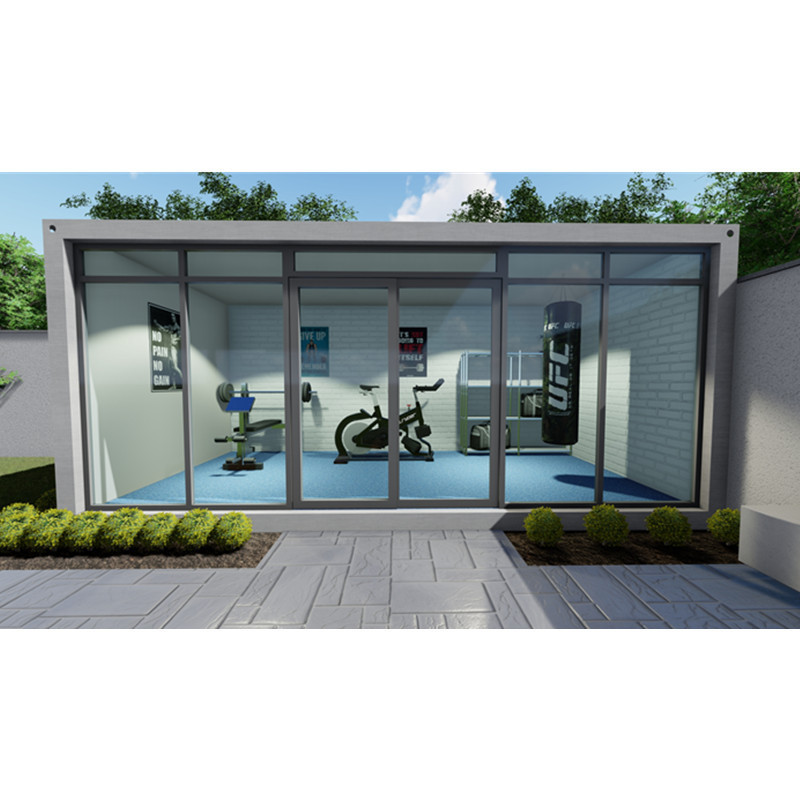

This kind container house is designed from our collapsible container frame,the advantage is as follows
2. strong = main frame thickness is 2-3mm
3. with bigger size
standard flat pack container house is W2.25*L5.8*H2.60m or W2.438*L6.055*H2.6m
our this kind container house is with bigger size W3M*L5.95M*H2.8M
4. doesn't need a crane for installation as the 3m X 5.95m container house
is totally disasembled to easy handled sections and all that is required is re assembly.
5. they can be combined to make a bigger units or stacked 2-3 levels
6. widely used for accormmodation,office,bathroom etc
7.Because of big promotion now, these container houses are with a very competitive price
Container Engineering Report
Technical conditions
1.1 General Technical Condition
1)The structure can prevent the 8 magnitude earthquake.
2)The design of seismic grouping is the first group, the site characteristic cycle is considered 0.45s, the construction site category is considered by Class III, and the damping ratio of steel structure is 0.05. The maximum αmax of the horizontal earthquake influence coefficient is 0.04, which is calculated by 5 years.
3) Structural safety level is grade 2. The coefficient of importance is 1.0.
4) Conner fitting elevation plus or minus zero.
1.2 Materials
Normally,steel beams, steel columns, purlin are all used Q235B cold bending galvanized light steel.
strength of steel:f=215N/m2
1.3 Loading Combination
1.Calculation of floor Loading
(1)Bottom Flooring
Structure Weight 0.4 kN/m2
Dead Load Value 0.4 kN/m2
Live Load Value 3.0 kN/m2
(2)Roof board
Structure Weight 0.3 kN/m2
Dead Load Value 0.3 kN/m2
Live Load Value 0.5 kN/m2
2.Calculation of Wind loading
According to the 15 Design durable years, the basic wind pressure of wind loading is W0=0.3KN/m2
