Our strict requirements on the production, packaging, transportation and other aspects of products make every customer satisfied.
We are willing to become sincere friends with all the people who love, understand and serve laboratory instruments, and create better products together！
- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
Gelvshi
-
Voltage:
-
220V, 308V, 220V 50HZ, 380V 50HZ
-
Power:
-
4500W
-
Dimension(L*W*H):
-
88*74*132cm
-
Weight (KG):
-
333
-
Marketing Type:
-
New Product 2024
-
Evaporation Capacity(kg/h):
-
6kg/24h
-
Product name:
-

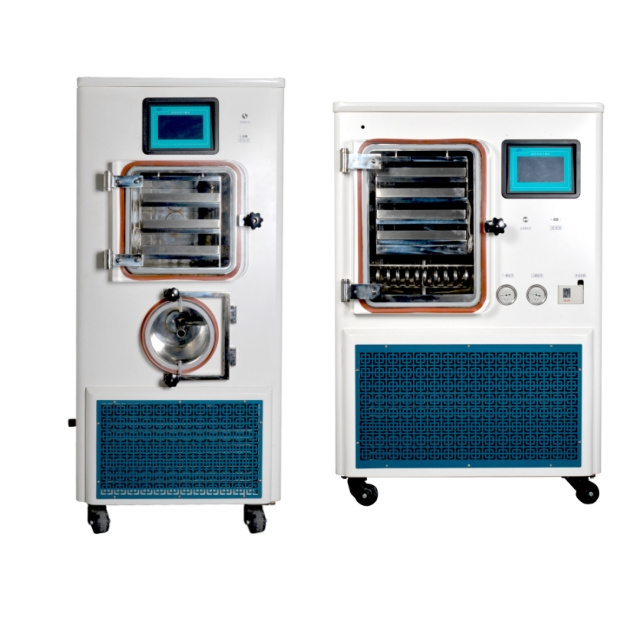

Pilot Scale Vacuum Freeze Dryer
-
Quantity of trays:
-
3 pcs, 4 pcs, 6 pcs
-
Color:
-
White, black
-
Power supply:
-
3500W, 4500W, 5500W, 6500W
-
Net Weight:
-
315KG, 333KG, 447KG, 561KG
-
Logo:
-
Customized
-
OEM:
-
Welcomed
-
Packing:
-
Wooden Box
Quick Details
-
Type:
-
Vacuum Drying Equipment
-
Drying Capacity (kg):
-
6-8kg/batch
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Gelvshi
-
Voltage:
-
220V, 308V, 220V 50HZ, 380V 50HZ
-
Power:
-
4500W
-
Dimension(L*W*H):
-
88*74*132cm
-
Weight (KG):
-
333
-
Marketing Type:
-
New Product 2024
-
Evaporation Capacity(kg/h):
-
6kg/24h
-
Product name:
-
Pilot Scale Vacuum Freeze Dryer
-
Quantity of trays:
-
3 pcs, 4 pcs, 6 pcs
-
Color:
-
White, black
-
Power supply:
-
3500W, 4500W, 5500W, 6500W
-
Net Weight:
-
315KG, 333KG, 447KG, 561KG
-
Logo:
-
Customized
-
OEM:
-
Welcomed
-
Packing:
-
Wooden Box
Products Description
Product Structure
Take ZLGJ-30 ordinary model as an example
Product Details
This model has partition heating and programmable function, can remember the freeze-drying curve, comes with U disk extraction function, convenient for customers to observe the material freeze-drying process.
Product Parameter
|
Model
|
ZLGJ-20 Ordinary
|
ZLGJ-30 Ordinary
|
ZLGJ-50 Ordinary
|
ZLGJ-100 Ordinary
|
||||
|
Freeze dried area
|
0.3㎡
|
0.4㎡
|
0.6㎡
|
1㎡
|
||||
|
Cold trap temperature
|
＜-75℃ (No load)
|
|
|
|
||||
|
Ultimate vacuum
|
Below 10Pa (No load)
|
|
|
|
||||
|
Pumping speed
|
4L/S
|
6L/S
|
6L/S (220V)
8L/S (380V)
|
15L/S
|
||||
|
Water harvesting ability
|
4kg/24h
|
6kg/24h
|
8kg/24h
|
15kg/24h
|
||||
|
Cooling mode
|
Air cooling
|
|
|
|
||||
|
Defrost mode
|
High temperature defrosting
|
|
|
|
||||
|
Net weight
|
315kg
|
333kg
|
447kg
|
561kg
|
||||
|
Dimension
|
800*800*1550(mm)
|
880*735*1320(mm)
|
960*785*1450(mm)
|
1020*780*1700(mm)
|
||||
|
Power
|
3500W
|
4500W
|
5500W
|
6500W
|
||||
|
Material tray
|
3pcs
265*395*30mm
|
4pcs
295*335*30mm
|
4pcs
350*470*30mm |
6pcs
355*475*30mm
|
||||
|
Diaphragm temperature range
|
-50℃ ~ 70℃
|
|
|
|
||||
|
Diaphragm
|
3+1 layer
Distance: 50mm
Size: 270*400*15mm
|
4+1 layer
Distance: 50mm
Size: 300*340*15mm
|
4+1 layer
Distance: 70mm
Size: 360*480*18mm
|
6+1 layer
Distance: 100mm
Size: 360*480*18mm
|
||||
|
Working temperature
|
10℃ ~ 30℃
|
|
|
|
||||
|
Relative humidity
|
≤70%
|
|
|
|
||||
|
Supply voltage
|
220VAC 50Hz
|
|
220VAC 50Hz
380VAC 50Hz
|
|
||||
|
Working condition
|
No conductive dust, no explosive, no corrosive gas and strong electromagnetic field interference.
|
|
|
|
||||
|
Ambient temperature under transportation & storage should be -40℃ ~ 50℃
|
|
|
|
|
||||
Product Features
12 Features help you to choose the best solution
1.
The drying room door and cold trap door are made of acrylic material with high strength and no leakage.
2. International famous brand compressor is high efficiency, energy saving, more stable.
3. Manual, automatic mode selection, manual mode is used to explore the process; automatic mode for mature process, one-click operation.
4. Data recording mode, data recording multiple choice, data export and other functions.
5. Freeze-drying curve query function, you can view the temperature, vacuum and other curves at any time.
6. This machine can store 40 groups of freeze-drying process, each group of process can be set to 36 segments.
7. Seven-inch true color industrial touch screen, high control precision, stable performance, easy to operate without instruction manual.
8. Charging valve, water discharge valve, using high vacuum safety diaphragm valve, can be connected to inert gas to extend the shelf life of materials.
9. Real-time monitoring of diaphragm temperature, cold trap temperature, vacuum degree and other operating status.
10. Temperature control mode at any time switch function; Divided into standard rising and cooling mode and smooth temperature control mode.
11. You can set the user level permission password to enter the operation management by permission.
12. Defrosting function: high temperature defrosting, fast defrosting speed, high safety performance.
Series Products
4 Types meet your different use requirements
Application
About Us
Our Company
Zhengzhou Gelvshi Intelligent Equipment Co.,Ltd
Zhengzhou Gelvshi Intelligent Equipment Co., Ltd.,located in Zhengzhou, Henan Province, China, is a diversified & innovative
high-tech enterprise composed of high-level talents. Gelvshi set research and development, production, sales in one, committed to the R & D of laboratory instruments and mechanical equipment. The company's products are provided for major universities, various scientific research institutions and laboratories, exported to Asia, America, Europe, Australia and other continents.
Gelvshi adhere to the core design concept of
quality, environmental protection, energy conservation and high efficiency
.
Our Workshop
1. Above 10000 square meters workshop and 200 worker
2. Advanced test equipment and professional R&D team
3. 6 production line
4. Short delivey time
Our Advantage
Packing & Delivery
We will arrange the shipment after receicing your order and payment. Generally the delivery time is 7-10 working days. Or it is 15 days if the goods are not in stock. This is depend on your order quantity.
