Quick Details
-
Place of Origin:
-
Henan, China
-
Voltage:
-
380v can customize
-
Power:
-
0.75kw
-
Dimension(L*W*H):
-
560*600*1040mm
-
Weight:
-
100 KG
-
Output product name:
-
dicer
-
Type:
-
Multifunctional Commercial Vegetable Cutting Machine
-
Advantage:
-
Cutter Size Adjustable
-
Function:
-
Vegetable Slicer Shredder Dicing Machine
-
Certification:
-
CE
-
Keywords:
-
Vegetable Cube Cutting Machine
-
Feature:
-
Wide Application
-
After Warranty Service:
-
Spare parts
-
MOQ:
-
1set
-
Operation:
-
Automatic Control
-
Cutting size:
-
3-20mm
Quick Details
-
Raw material:
-
Fruit, Vegetables
-
Marketing Type:
-
New Product 2023
-
Brand Name:
-
DH
-
Place of Origin:
-
Henan, China
-
Voltage:
-
380v can customize
-
Power:
-
0.75kw
-
Dimension(L*W*H):
-
560*600*1040mm
-
Weight:
-
100 KG
-
Output product name:
-
dicer
-
Type:
-
Multifunctional Commercial Vegetable Cutting Machine
-
Advantage:
-
Cutter Size Adjustable
-
Function:
-
Vegetable Slicer Shredder Dicing Machine
-
Certification:
-
CE
-
Keywords:
-
Vegetable Cube Cutting Machine
-
Feature:
-
Wide Application
-
After Warranty Service:
-
Spare parts
-
MOQ:
-
1set
-
Operation:
-
Automatic Control
-
Cutting size:
-
3-20mm

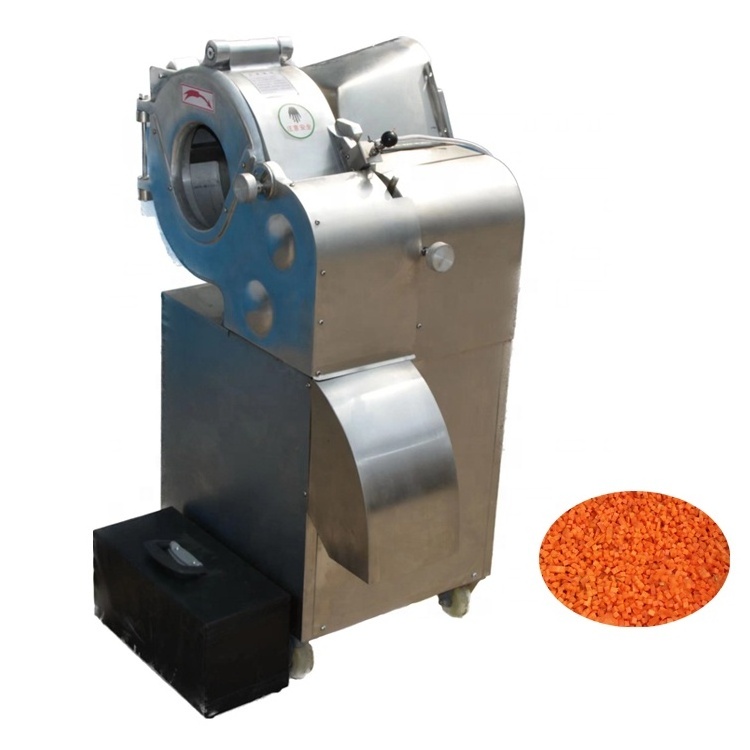

Brief Introduction of Vegetable and fruit dicing machine:
Vegetable and fruit dicing machine is suitable for processing dehydrated vegetables,quick-frozen vegetable processing plants and food pickles industries to process various root and stem vegetables into cubes and cuboids.The machine uses a compound cutter,which is formed in one time,with a regular shape,a smooth cut surface,and a high forming rate.This machine has advanced design,convenient operation,low energy consumption,high efficiency,stainless steel material,anti-corrosion,beautiful,and meets sanitary standards.
Finished product pictures of Vegetable and fruit dicing machine:
Diced Carrot
Diced taro
Diced onion
Diced tomato
Diced potato
Diced mushroom
Onion slicer
Taro chips
Potato slicer
Structure and working principle of Vegetable and fruit dicing machine:
Vegetable and fruit dicing machine is mainly composed of a base,a casing,a dial,a vertical knife,a wire knife body,a transverse cutting knife body,a transmission system and an electrical control system.The machine base,casing,hopper and main components are made of stainless steel to ensure long-term work without rust and non-toxic characteristics.
Working principle:The dial of the machine drives the cut object to rotate at high speed. Using the centrifugal force of the object, the cut object is cut into pieces by the vertical knife, and then cut into strips by the disc cutter. The knife edge is cut into the required cube or cuboid by a cross-cutting knife.
Technical data of Vegetable and fruit dicing machine:
|
Voltage
|
380v,50hz can customize
|
|
Power
|
0.75kw
|
|
Capacity
|
1000kg/h
|
|
Weight
|
100kg
|
|
Dimension
|
560*600*1040mm
|
