Quick Details
-
Power (kW):
-
3
-
Name:
-
wood dowel making machine
-
Function:
-
cutting wood to round sticks
-
Raw material:
-
square wood/round wood
-
Model:
-
MC9050A
-
Feeding speed:
-
3/5m/min
-
Motor power:
-
3 Kw
-
Voltage:
-
380V 50HZ 3phase
-
Dimension:
-
970*650*980mm
-
weight:
-
310kgs
-
Spare parts:
-
feeding rollers,blades,discharge rollers
Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Liberal
-
Weight (KG):
-
310 KG
-
Power (kW):
-
3
-
Name:
-
wood dowel making machine
-
Function:
-
cutting wood to round sticks
-
Raw material:
-
square wood/round wood
-
Model:
-
MC9050A
-
Feeding speed:
-
3/5m/min
-
Motor power:
-
3 Kw
-
Voltage:
-
380V 50HZ 3phase
-
Dimension:
-
970*650*980mm
-
weight:
-
310kgs
-
Spare parts:
-
feeding rollers,blades,discharge rollers

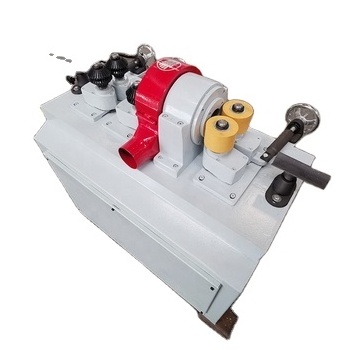

wood dowel making machine broomstick making machine with 22mm
This is belong to wood round stick processing equipment,
Mainly make long strips wood material and square wood into round sticks and smooth round sticks.The final produce most used to make broom handle,mop handle,shovel handle ect.The machine can be customized according to your wood rod diameter from 15-120mm.
Features of wood dowel making machine
1. The proper material is widely,such as elongated wood and round stock embryo,to change the disadvantage of raw material limited.
2. Smooth surface,the stick which processed approach to the one through sanding,to leave the sanding process by changing the speed of the machine .
3. High efficiency, the highest speed of the machine can reach 25 pcs/min,and can be customed the machine which can process more sticks for one time
Technical parameterof wood dowel making machine
|
Model |
MC9050A |
MC9050B |
MC9050C |
|
Main motor power |
3kw |
3kw |
4/3kw |
|
Feeding motor power |
0.75kw |
0.75kw |
0.75kw |
|
Spindle velocity |
4000r/min |
4000r/min |
4000r/min |
|
Feeding speed |
3/5m/min |
3/5m/min |
3/5m/min |
|
Cutting diameter |
15-50mm |
15-50mm |
15-50mm |
|
Overall dimension |
970*650*980mm |
1100*650*980mm |
1470*590*1000mm |
|
Machine weight |
310kg |
350kg |
520kg |
