Quick Details
-
Brand Name:
-
METERPRO
-
Model Number:
-
DDS-221D
-
Accuracy Class:
-
1
-
Output Voltage:
-
110V,127V,133V,230V,240V
-
Operating Temperature:
-
-10°C - +50°C
-
Dimensions:
-
26.6*17.4*65.6mm
-

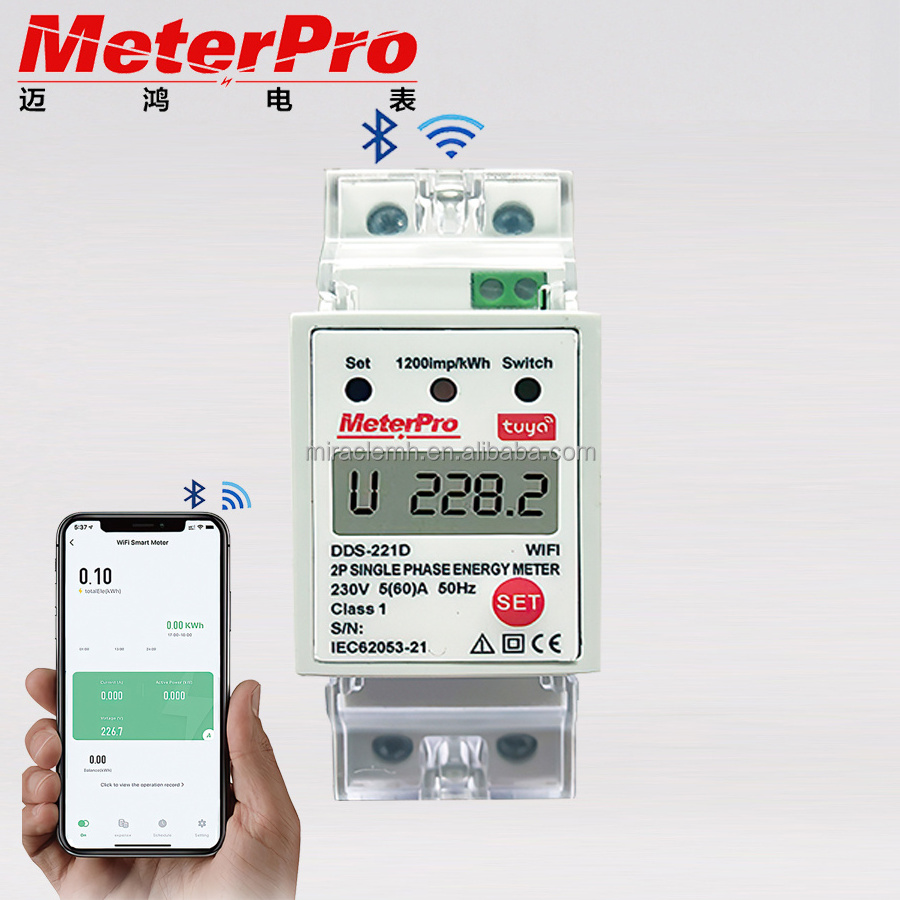

Product name:
-
Tuya Wifi Power Meter Energy Meter
-
Communication:
-
WI-FI /blue tooth
-
Certificate:
-
CE IEC EMC
-
Standard:
-
IEC62052-11/IEC62053-21
-
Application:
-
Energy Consumption Monitoring
-
Display:
-
LCD Digital Display
-
Rated current:
-
5(80)A
-
Installation:
-
DIN Rail Installation
-
Warranty:
-
2 Years
-
Frequency:
-
50HZ/60HZ
Quick Details
-
Phase:
-
Single Phase
-
Measuring Energy Range:
-
0-999999
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
METERPRO
-
Model Number:
-
DDS-221D
-
Accuracy Class:
-
1
-
Output Voltage:
-
110V,127V,133V,230V,240V
-
Operating Temperature:
-
-10°C - +50°C
-
Dimensions:
-
26.6*17.4*65.6mm
-
Product name:
-
Tuya Wifi Power Meter Energy Meter
-
Communication:
-
WI-FI /blue tooth
-
Certificate:
-
CE IEC EMC
-
Standard:
-
IEC62052-11/IEC62053-21
-
Application:
-
Energy Consumption Monitoring
-
Display:
-
LCD Digital Display
-
Rated current:
-
5(80)A
-
Installation:
-
DIN Rail Installation
-
Warranty:
-
2 Years
-
Frequency:
-
50HZ/60HZ
Details
Product Paramenters
|
Reference voltage
|
110~240V
|
|
Working voltage range
|
Provisional voltage range:90%Un~110%Un
Expending voltage range :80%Un~115%Un
|
|
Current
|
CT type: 1.5(6)A
Direct type:2.5(10)A,5(20)A,10(40)A, 15(60)A,20(80)A
|
|
Accuracy level
|
Active Class 1.0
Reactive class 2.0
|
|
Operating temperature
|
Regulated temperature :-25~+60c
Limit temperature:-40c~+70c
|
|
Relative humidity
|
≤95(no condensation
|
|
Frequency
|
(50±2.5)Hz/(60±2.5)Hz
|
|
Static power consumption
|
<8VA, <0.4W
|
|
Parameters
|
Voltage, Current, Power, kWh.
|
