Quick Details
-
Rated Voltage:
-
24v
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Constar
-
Model Number:
-
7054ZWF
-
Speed:
-
32000RPM
-
Phase:
-
3 Phase
-
Applications:
-
medical respirator
-
Length:
-
54mm
-
Diameter:
-
70mm
-
Voltage:
-
24v
-
Product Name:
-
24v brushless blower
-
Motor type:
-
Gearless Brushless DC Motor
-
Certificate:
-
CE
-
Noise:
-
LOW
Quick Details
-
Application:
-
Air Blower
-
Pressure:
-
Low Pressure
-
Warranty:
-
1 years
-
Rated Voltage:
-
24v
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Constar
-
Model Number:
-
7054ZWF
-
Speed:
-
32000RPM
-
Phase:
-
3 Phase
-
Applications:
-
medical respirator
-
Length:
-
54mm
-
Diameter:
-
70mm
-
Voltage:
-
24v
-
Product Name:
-
24v brushless blower
-
Motor type:
-
Gearless Brushless DC Motor
-
Certificate:
-
CE
-
Noise:
-
LOW

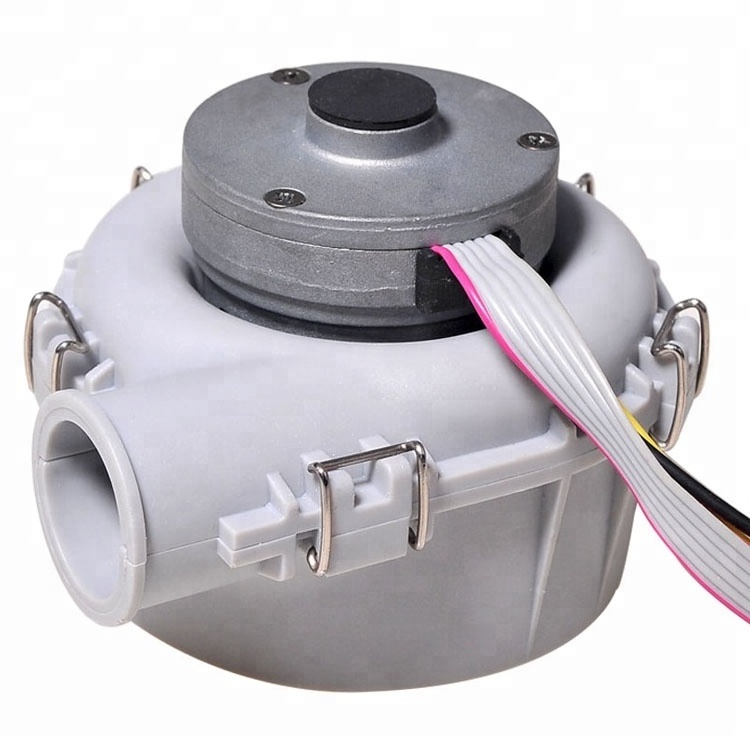

Low noise 7054 brushless dc blower 24v medical blower
| CONSTAR MICROMOTOR | ||
|
|
|
| PRECISION DC CORELESS MOTOR | BRUSHLESS DC MOTOR | SERVO MOTOR |
| GEARMOTOR | STEP MOTOR | MINI CORELESS MOTOR |
1. Applications: Breathing machine
2. Operating Environment:-4 0~+100°C
3. Characteristics :
The following are our standard products, we also provide customized products and service.
...
| -2ZP-250A-24.0 | |||
| 1 | Voltage | V | 24 |
| 2 | Terminal resistance | Ω | 2 |
| 3 | NO. of phase | — | 3 |
| 4 | Input power | W | 20 |
| 5 | Rated Load | — | Blades (/Blow hole: 4mm) |
| 6 | Load speed | rpm | 33000 |
| 7 | Load current | A | 1.4 |
| 8 | Air pressure | Pa | 4000 |
| 9 | Air flow | m³/h | 4.4 |
| 10 | Noise | dB | ≤40 |
| 11 | Weight | g | 237 |
4,PHOTO:
Click here for more information
5,Customized Motor Solutions:
CONSTAR MICROMOTOR specialize in design, custom and manufacture electric motors,including DC Coreless Motor , Sonic Motor , Brushless DC Motor , Gear Motor , Servo Motor , DC Core Motor and Mini Step Motor. All of them can be fully and easily customized . We committed to offer high quality, high performance, cost effective options to meet customers specific demands. Choosing to customize one of the motors in our Product Categories now!
6, Certificate:
7,PACKING:
Low noise 7054 brushless dc blower 24v medical respirator blower
