MATERIAL: SUS304
FUNCTION: TO MAKE FLOUR WITH WATER COMPLETELY
MAIN PARAMETERS: MIXING TIME: 15-20MINS
WATER CONTENT: 11-14%
WATER ADD: 30-35%
- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
B.R.O
-
Voltage:
-
380V/50HZ
-
Power:
-
45-170kw
-
Dimension(L*W*H):
-
40*5*5
-
Weight:
-
1000 KG
-
After-sales Service Provided:
-
Field installation, commissioning and training
-
Raw material:
-
Wheat Flour
-
Product name:
-
Instant Pot Noodle Machine Oil Fryer Machine
-
Material:
-
304/316 Stainless Steel
-
Application:
-
noodle frying
-
Performance:
-
Stable Working Performance
-
Feature:
-
with noodle casing box exchanger
-
Name:
-
oil fryer machine
-
Certification:
-
ISO CE
-
Function:
-
Multifunction
Quick Details
-
Production Capacity:
-
20000-260000pcs/8hs
-
Type:
-
Instant Fried Noodle
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
B.R.O
-
Voltage:
-
380V/50HZ
-
Power:
-
45-170kw
-
Dimension(L*W*H):
-
40*5*5
-
Weight:
-
1000 KG
-
After-sales Service Provided:
-
Field installation, commissioning and training
-
Raw material:
-
Wheat Flour
-
Product name:
-
Instant Pot Noodle Machine Oil Fryer Machine
-
Material:
-
304/316 Stainless Steel
-
Application:
-
noodle frying
-
Performance:
-
Stable Working Performance
-
Feature:
-
with noodle casing box exchanger
-
Name:
-
oil fryer machine
-
Certification:
-
ISO CE
-
Function:
-
Multifunction
Product Description
Automatic Instant Fried Noodles making Machine
New technology automatic industrial instant grains noodle making machine with perfect technology,compact structure,original design and stable performance,is developed on the base of like produces and requirements in the world market,it realizes high automation convenient operation,low energy and small floor space ,that assures all working procedures from feeding flour to finished products can be accomplished once. The investment for this line is only one tenth of that large size equipment,especially suitable to small-size or self-owned enterprises,the corrugated instant noodle produced by this line tenacious,smooth and transparent,it is very easy to be saturated by water.
Production Line Reference Drawing
Flour Conveyor System(Flour Feeder System)→Dough Mixing Machine+(Dough Discharge)→Dough Ripening Machine(Disk Type,Belt Ripening)→Rolling Machine→Slitting→Waving Forming→Steaming Machine→Cutting And Folding Machine→Oil Frying Machine→Air Cooling Machine→Distributing Machine→V Conveyor→Dispenser Machine→Packing Machine→Finished Product Conveyor→Cartoning Machine
Product Parameter
|
Model
|
Capacity(KG/H)
|
Install Power(KW)
|
Overall Size(M)
|
|
BFP-2Y/C
|
150
|
45
|
40*5*5
|
|
BFP-6Y/C
|
450
|
58
|
45*5*5
|
|
BFP-10Y/C
|
750
|
72
|
55*5*5
|
|
BFP-14Y/C
|
1000
|
80
|
59*5*5
|
|
BFP-18Y/C
|
1400
|
95
|
65*5*5
|
|
BFP-22Y/C
|
1700
|
108
|
72*5*5
|
|
BFP-26Y/C
|
2000
|
128
|
90*5*5
|
Details Images
MATERIAL: SUS304
FUNCTION: TO MAKE FLOUR WITH WATER COMPLETELY
MAIN PARAMETERS: MIXING TIME: 15-20MINS
WATER CONTENT: 11-14%
WATER ADD: 30-35%
CAPACITY:500-1000KG PER TANK
MATERIAL: SUS304/316
FUNCTION: TO MIX WATER WITH SALT AND ADDITIVES
MAIN PARAMETERS: MIXING TIME: 10MINS
WATER CONTENT: PURED WATER BETTER
SIZE: 6X6M OR 8X8M
MATERIAL: CARBON STEEL
FUNCTION: TO PUT THE MIXER AND ALKALI TANK
MAIN PARAMETERS: STRONG ENOUGH FOR 2000KG PER SQM .
DISK RIPEN MACHINE
SIZE: 2M ROUND
MATERIAL: SUS304
FUNCTION: TO AGING THE DOUGH BETTER
MAIN PARAMETERS:AGING TIME: 20MINS
MATERIAL: ALLOY STEEL OR SUS304
FUNCTION: TO ROLL THE DROUGH FROM 14MM TO 1MM THICKNESS
MAIN PARAMETERS: DOUGH SHEET THICKNESS: 14-1MM
ROLLING SPEED: 7M-10M PER MIN
MOTOR TYPE: SOLO OR COMPOUND TYPE
MOTOR TYPE: SOLO OR COMPOUND TYPE
WIDTH:200-1500MM
MATERIAL: SUS304
FUNCTION: TO SLITTING DOUGH SHEET TO NOODLES
MAIN PARAMETERS: SLITTING SIZE: 0.7-5MM
SLITTER TYPE: ROUND AND SQUARE
WIDTH:200-1500MM
MATERIAL: SUS304
FUNCTION: TO STEAM NOODLES CONTINUOUSLY
MAIN PARAMETERS: STEAM TEMP:110C
STEAM TIME: 180S
STEAMER TYPE: 1 LAYER OR 3 LAYER
WIDTH:200-1500MM
MATERIAL: SUS304, SLICON PALLET
FUNCTION: TO CUT AND FOLD NOODLES BEFORE DRYING
MAIN PARAMETERS: CUT SPEED: 20-70CUTS PER MIN
CUT LENGTH ADJUSTABLE
WIDTH:200-3500MM
MATERIAL: CARBON STEEL FRAME, NOODLE CONTACT USE SUS304
FUNCTION: TO FRY NOODLES AS REQUESTED TYPE
MAIN PARAMETERS: FRYER TYPE: BUSKET
FRYING TIME: 90-100S
FRYING TEMP: 155-165C
WORKING SIZE: L8000XW1090X1540MM (OPTIONAL)

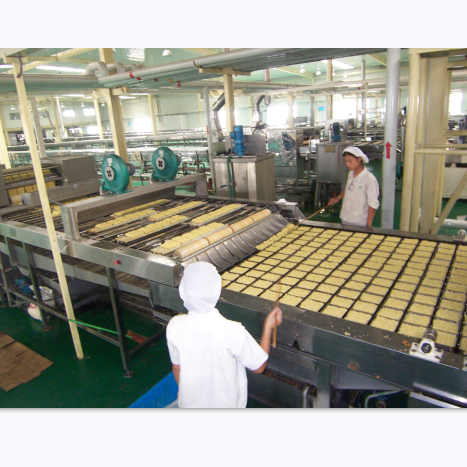

AIR COOLING TIME: 3-4 MINUTES
MATERIAL: SUS304: VENTILATION PLATE, SLIDING PANEL, OIL PLATE, AIR DUCT, FRAME BODY
CARBON STEEL: CHAIN, TRANSMISSION PARTS, FAN
POWER: 0.37KWX 10 SETS(OPTIONAL)
FUNCTION: USE FAN TO COOL THE NOODLE FOR EASY PACKAGING
WIDTH:200-1500MM
MATERIAL: SUS304
FUNCTION: TO CONVEY NOODLE TO COOLING MACHINE
MAIN PARAMETERS: BY SUS304 BUSKET
ABOUT 2M LONG
CAPACITY: 140-200 PACKS PER MIN
MATERIAL: CARBON STEEL AND SUS304
FUNCTION: TO PACK NOODLES WITH FLAVOR BAG
