Quick Details
-
Range of Spindle Speed(r.p.m):
-
60 - 1800 r.p.m
-
Width of bed (mm):
-
160
-
Max. Turned Length (mm):
-
750 mm
-
Spindle Motor Power(kW):
-
1100w
-
Year:
-
2022
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
new reaching
-
Model Number:
-
A2-L13F 330*750mm
-
Voltage:
-
220V
-
Dimension(L*W*H):
-
132/142*76*65cm
-
Weight (KG):
-
245 KG
-
Marketing Type:
-
Hot Product 2022
-
CNC or Not:
-
Normal
-
Automatic Grade:
-
Automatic
-
After-sales Service Provided:
-
Video technical support
-
keyword:
-
metal lathe
-
Max. Swing Diameter:
-
330mm
-
Weight:
-
245kg
-
Power(W):
-
1100w
-
Certification:
-
CE ROHS EMC GS
-
Power (kW):
-
1100W
Quick Details
-
Max. Length of Workpiece (mm):
-
750
-
Machining Capacity:
-
Medium Duty
-
Spindle Bore(mm):
-
38
-
Range of Spindle Speed(r.p.m):
-
60 - 1800 r.p.m
-
Width of bed (mm):
-
160
-
Max. Turned Length (mm):
-
750 mm
-
Spindle Motor Power(kW):
-
1100w
-
Year:
-
2022
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
new reaching
-
Model Number:
-
A2-L13F 330*750mm
-
Voltage:
-
220V
-
Dimension(L*W*H):
-
132/142*76*65cm
-
Weight (KG):
-
245 KG
-
Marketing Type:
-
Hot Product 2022
-
CNC or Not:
-
Normal
-
Automatic Grade:
-
Automatic
-
After-sales Service Provided:
-
Video technical support
-
keyword:
-
metal lathe
-
Max. Swing Diameter:
-
330mm
-
Weight:
-
245kg
-
Power(W):
-
1100w
-
Certification:
-
CE ROHS EMC GS
-
Power (kW):
-
1100W

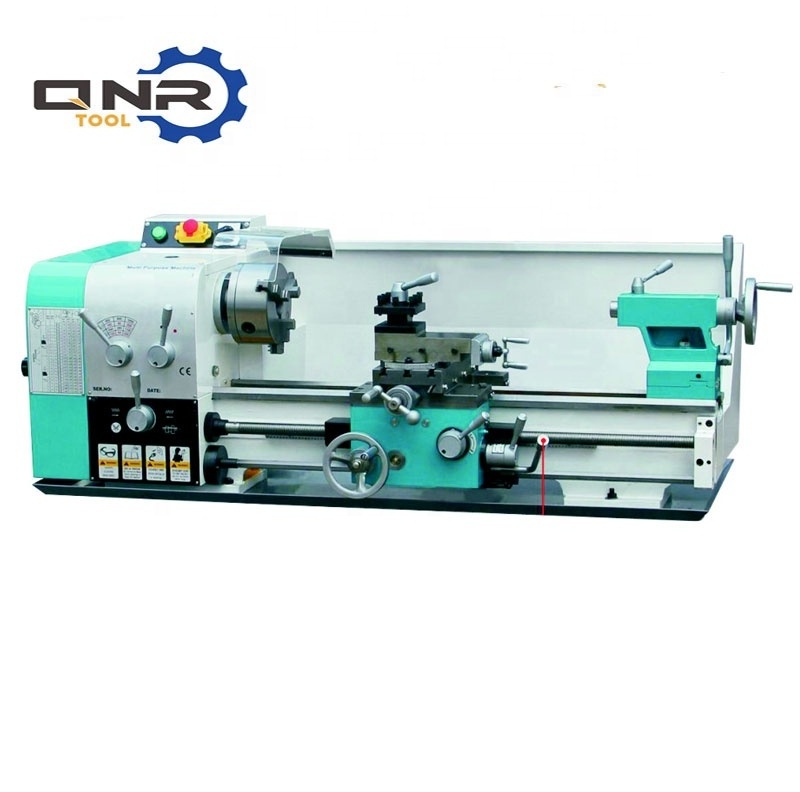

Variable speed mini metal lathe A2-L13F
Product Description
A2-L13F(Arc style headstock and with operating bar)
| model | A2-L13F |
| swing over bed | 330mm |
| swing over carriage | 160mm |
| distance between centers | 600/700mm |
| bed with | 160mm |
| spindle bore | 38mm |
| spindle taper | MT5 |
| spindle speed | 60-1800pm |
| tool post travel | 100mm |
| Cross travel | 160mm |
| longitudinal travel | 680mm |
| longitudinal feed | 0.1-1.5mm/r |
| cross feed | 0.045-0.6mm/r |
| Metric threads | 15/0.5-4mm |
| inch threads | 23/9-40tpi |
| travel of tailstock sleeve | 85mm |
| tape of tailstock sleeve | MT3 |
| motor power | 1100w |
| net weight | 245/275kg |
| packing size | 132/142*76*65cm |
