Quick Details
-
Model Number:
-
Chemical resistant conveyor belt
-
Cargo name:
-
China nylon ep acid and alkali resistant rubber flat conveyor belt
-
Belt feature:
-
Chemical resistant, anti-corrosive
-
Width:
-
300-1600 mm
-
Thickness:
-
3-30 mm
-
Tensile strength:
-
8-25Mpa
-
Layers:
-
2-10 ply
-
Elongation at break:
-
≥ 340%
-
Edge:
-
Cut or moulded
-
Certificate:
-
ISO9001:2015
-
Applications:
-
Chemical/fertilizer plan,paper mills,wharf,sea salt production
Quick Details
-
Processing Service:
-
Moulding, Cutting
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
DENG REN
-
Model Number:
-
Chemical resistant conveyor belt
-
Cargo name:
-
China nylon ep acid and alkali resistant rubber flat conveyor belt
-
Belt feature:
-
Chemical resistant, anti-corrosive
-
Width:
-
300-1600 mm
-
Thickness:
-
3-30 mm
-
Tensile strength:
-
8-25Mpa
-
Layers:
-
2-10 ply
-
Elongation at break:
-
≥ 340%
-
Edge:
-
Cut or moulded
-
Certificate:
-
ISO9001:2015
-
Applications:
-
Chemical/fertilizer plan,paper mills,wharf,sea salt production

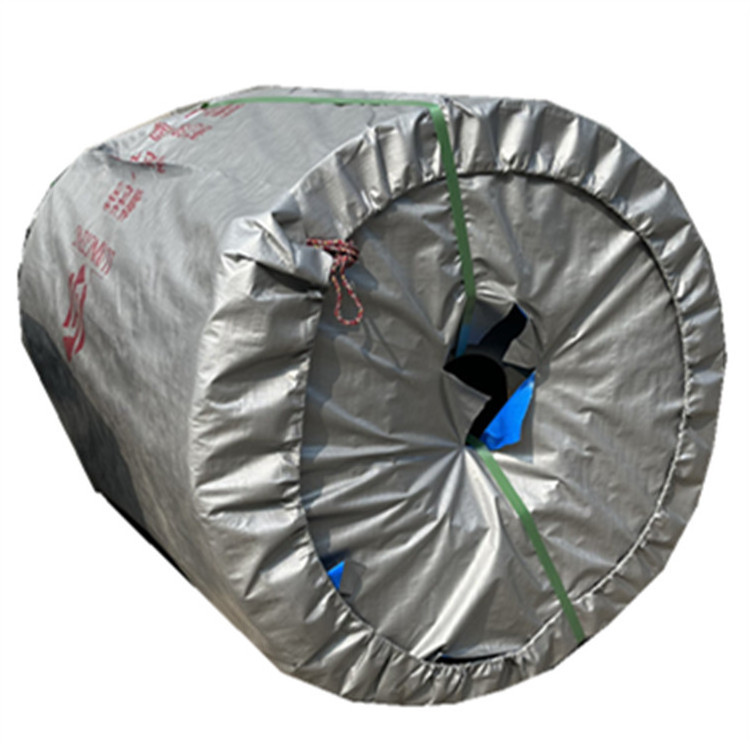

China nylon ep acid and alkali resistant rubber flat conveyor belt
Safety,particularly fire hazards, the abrasive nature of coarse bulk materials, hot, chemical and oil based products are amongst the many and varied demands placed on conveyor belts in the chemical and fertilizer industry. Long-term durability and reliability have a major influence on the cost effectiveness of the operation.
We supply the most practical belts for each of these demands including high wear resistant, tear and cut resistant belts for raw material transportation, heat and Fire resistant resistant belts for the production processes and chemical and oil resistant belts both for the production process and for the transportation of the end products.
Conveyor belts used in chemically damaged environment or transporting materials consisting of inorganic acid and alkali.
Features of China nylon ep acid and alkali resistant rubber flat conveyor belt:
Use cotton canvas, nylon canvas or polyester canvas as belt core, with good belt elasticity, good forming performance. Good water-proof ability, little change in strength under dry or wet conditions.
The covering rubber is processed by acid and alkali resistant material, has good chemical resistance and good physical properties.
Usage of China nylon ep acid and alkali resistant rubber flat conveyor belt:
Suitable for chemical plants, chemical fertilizer plants, paper mills and other industrial plants transporting acidic or other corrosive chemical materials. It can also be used for sea salt production.
China nylon ep acid and alkali resistant rubber flat conveyor belt technical standards: National standard HG/T3782-2005.
China nylon ep acid and alkali resistant rubber flat conveyor belt:
Physical properties of the cover:
| covering layer | Name of index | Index | ||
| before aging | after aging | |||
| Tensile strength | ≥14Mpa | ≥12Mpa | ||
| elongation at break | ≥400% | ≥340% | ||
| Hardness(SHORE A) | 55-70 | 60-75 | ||
| Acid-resistant coefficient:(15-25°C,24h 40%H2SO4) | ≥0.8 | ≥0.8 | ||
| Abrasion loss | ≤1.2m³/1.61km | |||
| Through thickness | bonding strength between cloth and adhsiveplaster | covering glue>1.5mm | ≥3.2N/mm | |
| covering glue≤1.5mm | ≥2.8N/mm | |||
| bonding strength between interlayers(average vertically) | ≥3.2N/mm | |||
| elongation at break(vertically) | ≥10% | |||
Acid and alkali resistant properties of the cover:
| category | soak solution | concentration | soak conditions | rate of properties change before and after soaking | |
| temprature x time | volume expansion rate | rate of strength change | |||
| A1 | Hydrochloric acid(HCL) | 18% | 50°CX96h | below +10% | within -10% |
| A2 | Sulfuric acid(H2SO4) | 50% | 50°CX96h | below +10% | within -10% |
| A3 | sodium hydroxide(NaOH) | 48% | 50°CX96h | below +10% | within -10% |
Specifications and technical datas of China nylon ep acid and alkali resistant rubber flat conveyor belt:
| carcass material | fabric type | single fabric thickness | single fabric strength | Number of fabric piles | Cover rubber thickness | belt width | belt length | |
| (mm/ply) | (N/mm) | (mm) | (mm) | (m) | ||||
| upper | bottom | |||||||
| Cotton Canvas (CC) | CC-56 | 1.10 | 56 | 2-10 | 2.0-8.0 | 0-4.5 | 400-2500 | ≤400 |
| Polyester Cotton (TC) | TC-70 | 1.00 | 70 | 2-10 | 1.5-8.0 | 0-4.5 | 400-2500 | ≤400 |
| Nylon (NN) | NN100 | 0.75 | 100 | 2-10 | 1.5-8.0 | 0-4.5 | 400-2500 | ≤400 |
| NN150 | 0.80 | 150 | ||||||
| NN200 | 0.90 | 200 | 500-2500 | |||||
| NN250 | 1.15 | 250 | ||||||
| NN300 | 1.25 | 300 | 2-6 | |||||
| NN400 | 1.45 | 400 | 800-2500 | |||||
| NN500 | 1.55 | 500 | ||||||
| Polyester (EP) | EP100 | 0.80 | 100 | 2-10 | 1.5-8.0 | 0-4.5 | 400-2500 | ≤400 |
| EP125 | 0.85 | 120 | ||||||
| EP150 | 0.90 | 150 | ||||||
| EP200 | 1.05 | 200 | 500-2500 | |||||
| EP250 | 1.25 | 250 | ||||||
| EP300 | 1.35 | 300 | 2-6 | |||||
| EP350 | 1.50 | 350 | 600-2500 | |||||
| EP400 | 1.80 | 400 | ||||||
| EP500 | 2.00 | 500 | ||||||
We can also produce international standard rubber conveyor belts, such as DIN22102, AS1332, BS490, RMA, JISK6322, SANS1173, etc.
