Quick Details
-
Voltage:
-
220V, 50Hz, 220V 50Hz
-
Power:
-
Accroding to model
-
Dimension(L*W*H):
-
Accroding to model
-
Weight (KG):
-
37
-
Marketing Type:
-
Available
-
Product name:
-

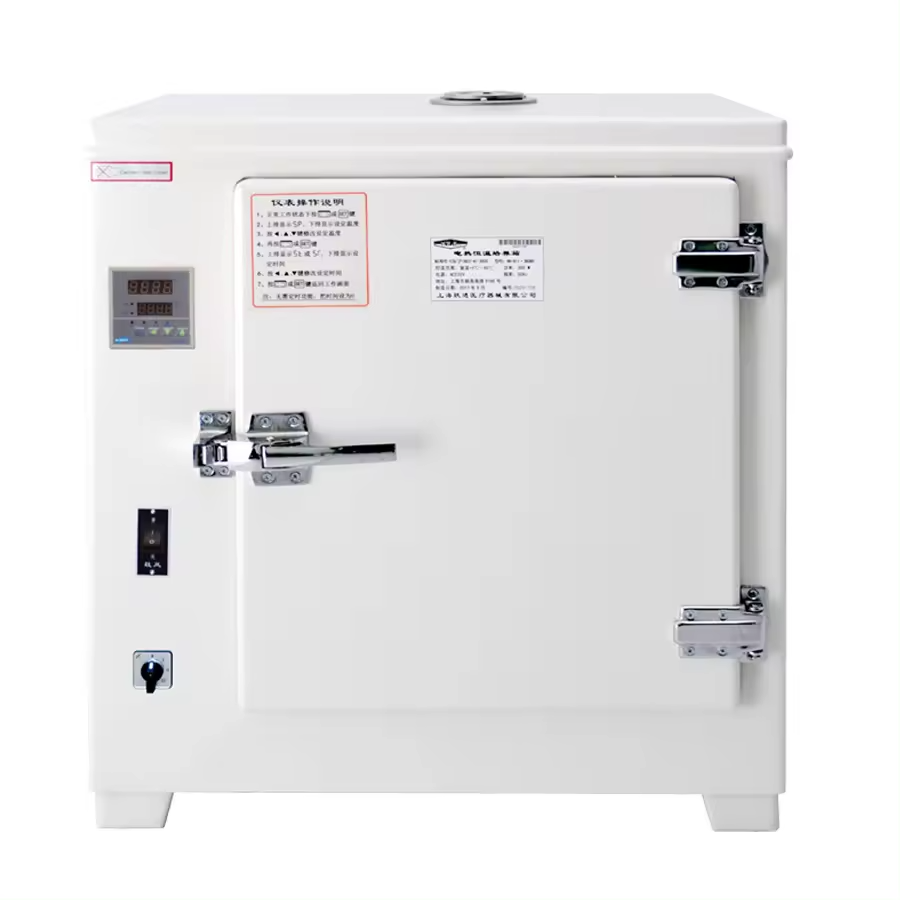

Laboratory drying oven
-
Applicable industries:
-
Laboratory, Chemical, Biological
-
Power rating:
-
1200W
-
Certification:
-
CE
-
Keywords:
-
Laboratory Electric Thermostatic Drying Oven
-
Temp. Range:
-
50~200℃
-
Classification:
-
Laboratory Thermostatic Equipments
Quick Details
-
Type:
-
Vacuum Drying Equipment
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
IKEME
-
Voltage:
-
220V, 50Hz, 220V 50Hz
-
Power:
-
Accroding to model
-
Dimension(L*W*H):
-
Accroding to model
-
Weight (KG):
-
37
-
Marketing Type:
-
Available
-
Product name:
-
Laboratory drying oven
-
Applicable industries:
-
Laboratory, Chemical, Biological
-
Power rating:
-
1200W
-
Certification:
-
CE
-
Keywords:
-
Laboratory Electric Thermostatic Drying Oven
-
Temp. Range:
-
50~200℃
-
Classification:
-
Laboratory Thermostatic Equipments
Products Description
Ap plication
This product is used for drying, baking and sterilization by industrial and mining enterprises, laboratories, scientific research units, etc.
Structure characteristics
1. Outer box material: cold-rolled steel plate surface sprayed with plastic; inner material: SUS stainless steel plate.
2. The top air outlet is easy to open and close.
3. HGZN: Glass inner door, outer door without observation window; HGZN-II: No glass inner door, outer door observation window.
4. LED digital tube display P.I.D temperature controller, precise temperature control;
5. Continuous operation or scheduled operation: 0 ~ 9999min;
6. It has parameter memory function and will automatically resume operation when a call comes in.
7. The inner box adopts arc structure design for easy cleaning.
8. Pull-out movable shelves with adjustable spacing.
9. (Optional) Independent external temperature protection device.
10. (HGZN-II optional) LCD temperature controller.
11. (HGZN-II optional) LCD temperature controller + RS485 communication serial port.
12. (HGZN-II optional) LCD temperature controller + micro dot matrix printer.
13. (HGZN-II optional) RS485 to USB adapter.
Product Paramenters
|
Model
|
HGZN-32
|
HGZN-72
HGZN-II-72
|
HGZN-138
HGZN-II-138
|
HGZN-270
HGZN-II-270
|
HGZN-II-43
|
||||
|
Temperature range
|
50~200℃
|
|
|
|
|
||||
|
Temperature uniformity
|
≤Maximum operating temperature ±3.5%
|
|
|
|
|
||||
|
Temperature fluctuation
|
±1℃
|
|
|
|
|
||||
|
In-box circulation method
|
Natural convection
|
|
|
|
|
||||
|
Alarm type
|
Over-temperature alarm, temperature probe damage alarm
|
|
|
|
|
||||
|
Internal dimensions WxDxH(cm)
|
35×34.8×35
|
45×34.8×45
40x39x45
|
55×44.8×55
50×50×55
|
60×49.8×75
60×60×75
|
35x35x35
|
||||
|
Internal volume (L)
|
42
|
70
|
135 / 137
|
224 / 270
|
42
|
||||
|
External dimensions WxDxH(cm)
|
62x47x65
|
68×65.3×63.1
|
83×66.5×77.2
|
93×76.5×97.2
|
63.5×61.5×55.2
|
||||
|
Shelf
|
2
|
2
|
3
|
3
|
2
|
||||
|
Power (W)
|
1200
|
1600
1000 (Type II)
|
2000
|
3000
|
850
|
||||
|
Power supply
|
1Ø 220V 50Hz
|
|
|
|
|
||||
Details Images
