Quick Details
-
Product Name:
-
Fire Sprinkler
-
Material:
-
Brass
-
Type:
-
Upright/Pendent
-
Glass Bulb Color:
-
Red
-
Nominal Diameter:
-
DN15
-
Connecting Thread:
-
R1/2
-
Temperature Rating:
-
68
-
Glass Bulb:
-
5 mm
-
Flow rate:
-
K5.6(K80)
-
Certificate:
-
CCC and ISO
Quick Details
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
CA-Fire
-
Model Number:
-
T-ZSTZ/T-ZSTX
-
Product Name:
-
Fire Sprinkler
-
Material:
-
Brass
-
Type:
-
Upright/Pendent
-
Glass Bulb Color:
-
Red
-
Nominal Diameter:
-
DN15
-
Connecting Thread:
-
R1/2
-
Temperature Rating:
-
68
-
Glass Bulb:
-
5 mm
-
Flow rate:
-
K5.6(K80)
-
Certificate:
-
CCC and ISO
1. Pr oduct Description
Application

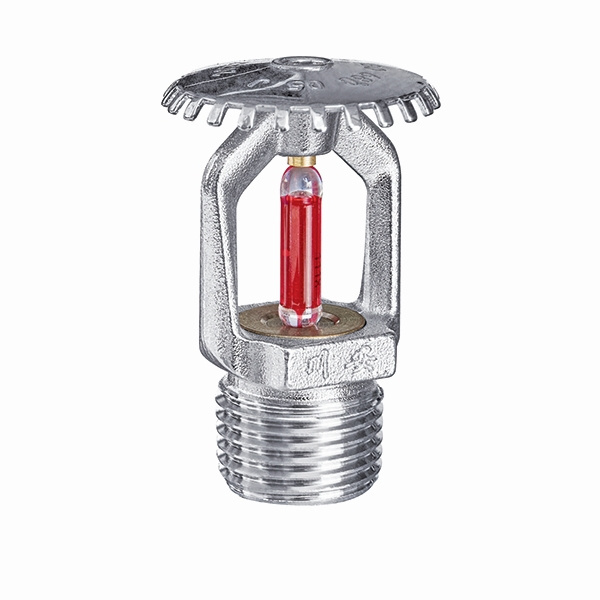

The Standard Coverage Sprinkler Head is a vital component of any fire sprinkler system. This type of sprinkler head is designed to cover a larger area than other types of heads, making it perfect for providing comprehensive fire protection in commercial and industrial settings.
One of the key features of the Standard Coverage Sprinkler Head is its wide spray pattern. This spray pattern ensures that water is distributed evenly over a large area, effectively controlling and extinguishing even the largest fires.
Another important benefit of the Standard Coverage Sprinkler Head is its ease of installation. These sprinkler heads can be installed in a variety of locations, including ceilings, walls, and even in concealed spaces.
Overall, the Standard Coverage Sprinkler Head is an essential component of any fire protection system. It provides reliable and effective coverage over a large area, ensuring that fires are quickly and efficiently controlled. So if you want to protect your property and keep your employees safe, be sure to include Standard Coverage Sprinkler Heads in your fire protection plan.
Parameters
| Style No. | Sprinkler Head T-ZSTZ 80-68°C Q5 C/T-ZSTZ 80-68°C Q5 J | ||||||
| Temp. Rating | 57°C | 68°C | 79°C | 93°C | 141°C | 182°C | 260°C |
| Glass Bulb Color | Orange | Red | Yellow | Green | Blue | Purple | Black |
| Main Material | Brass | ||||||
| Sealing Material | NBR | ||||||
| Sensitive Element | Glass Bulb | ||||||
| K Factor | 5.6@US(80@Metric) | ||||||
| Connecting Size | DN15( 1/2”) | ||||||
| Connecting Thread | BSP(NPT Optional) | ||||||
| Installation Type | Upright / Pendent | ||||||
| Glass Bulb Brand | YF | ||||||
| Glass Bulb Size | 5mm | ||||||
| Surface Finishing | Chrome,Nature Brass | ||||||
