Quick Details
-
Specification:
-
DN16-1600mm, OD560 OD450 OD315 OD250 OD200 OD160
-
Length:
-
Customized, 6m,12m or as required
-
Thickness:
-
20-94.2mm, 2.0-94.2mm or up to your request
-
Standard:
-
ISO4427,GB/T13663-2000
-
Product name:
-
18inch Pe Pipe Floats
-
Color:
-
Black with blue strip
-
Connection method:
-
Flanged
-
With Flange:
-
Yes, flange stub end welded on both size
-
Advantage:
-
Long service life
-
Working pressure:
-
SDR33, SDR26,SDR21,SDR17,SDR13.6,SDR11,SDR9,SDR7.4
-
Working Temperature:
-
- 40℃ to 40℃
-
Usage:
-
HDPE dredging pipe
-
Feature:
-
High Pressure,long service life
Quick Details
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
ZHUOSHI
-
Model Number:
-
ZS-PE-08
-
Specification:
-
DN16-1600mm, OD560 OD450 OD315 OD250 OD200 OD160
-
Length:
-
Customized, 6m,12m or as required
-
Thickness:
-
20-94.2mm, 2.0-94.2mm or up to your request
-
Standard:
-
ISO4427,GB/T13663-2000
-
Product name:
-
18inch Pe Pipe Floats
-
Color:
-
Black with blue strip
-
Connection method:
-
Flanged
-
With Flange:
-
Yes, flange stub end welded on both size
-
Advantage:
-
Long service life
-
Working pressure:
-
SDR33, SDR26,SDR21,SDR17,SDR13.6,SDR11,SDR9,SDR7.4
-
Working Temperature:
-
- 40℃ to 40℃
-
Usage:
-
HDPE dredging pipe
-
Feature:
-
High Pressure,long service life

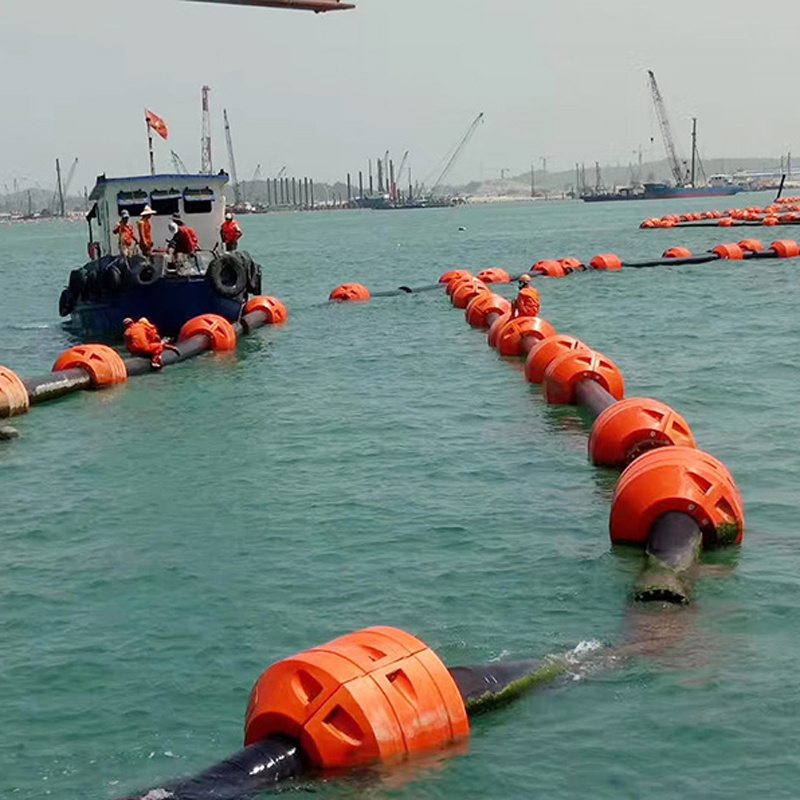

0.8mpa 6 inch 8 inch 12 inch 12" 14 16 inch 31inch 39 inch 400mm 47 inch 55 inch pe100 sand marine dredge Discharge hdpe pipe
|
Specification available
|
16-1600mm
|
|
SDR/pressure ratings
|
SDR11-PN16, SDR13.6-PN12.5,SDR17-PN10, SDR21-PN8, SDR26-PN6
|
|
Material to be used
|
Virgin HDPE raw material
|
|
Colors available
|
Black color, or as per request
|
|
Standards that follow to
|
IsO 4427, AS/NZS 4130,ASTMF714,EN 12201, CE andother international standards.
|
|
Flange material
|
Stainless steel or carton steel (galvanized or coated by PP)
|
|
Float I.D. (mm)
|
Float O.D.(mm)
|
Float Length(mm)
|
Range Adjustable I.D.(mm)
|
|
110
|
300
|
580
|
60mm to 120mm
|
|
200
|
500
|
800
|
150mm to 225mm
|
|
250
|
700
|
900
|
225mm to 280mm
|
|
315
|
850
|
1100
|
280mm to 355mm
|
|
355
|
1100
|
1100
|
330mm to 400mm
|
|
400
|
1100
|
1200
|
355mm to 450mm
|
|
450
|
1200
|
1200
|
400mm to 480mm
|
|
480
|
1300
|
1300
|
450mm to 500mm
|
|
500
|
1400
|
1400
|
480mm to 520mm
|
|
560
|
1400
|
1500
|
510mm to 580mm
|
|
630
|
1400
|
1700
|
600mm to 650mm
|
|
710
|
1500
|
1800
|
660mm to 750mm
|
|
750
|
1600
|
1900
|
710mm to 800mm
|
|
800
|
1600
|
2000
|
750mm to 850mm
|
|
850
|
1800
|
2200
|
800mm to 900mm
|
|
940
|
2200
|
2500
|
900mm to 1000mm
|
|
or Customize
|
|
|
