Quick Details
-
Dimension(L*W*H):
-
5064*2284*1978mm
-
Weight:
-
20000, 1200kg
-
Power (kW):
-
15
-
Name:
-
Single Hook Tire Bead wire Remove Debeader
-
Type:
-
tire recycling machine
-
key Selling Points:
-
Automatic
-
Usage:
-
crush waste tyres
-
Application:
-
Automatic electric buttons controller
-
Working Capacity:
-
40 Pieces / hour
-
Color:
-
as your require
-
HS cord:
-
84778000
-
Wechat/Whatsapp:
-
+86-18253286958
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
SFC
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
5064*2284*1978mm
-
Weight:
-
20000, 1200kg
-
Power (kW):
-
15
-
Name:
-
Single Hook Tire Bead wire Remove Debeader
-
Type:
-
tire recycling machine
-
key Selling Points:
-
Automatic
-
Usage:
-
crush waste tyres
-
Application:
-
Automatic electric buttons controller
-
Working Capacity:
-
40 Pieces / hour
-
Color:
-
as your require
-
HS cord:
-
84778000
-
Wechat/Whatsapp:
-
+86-18253286958

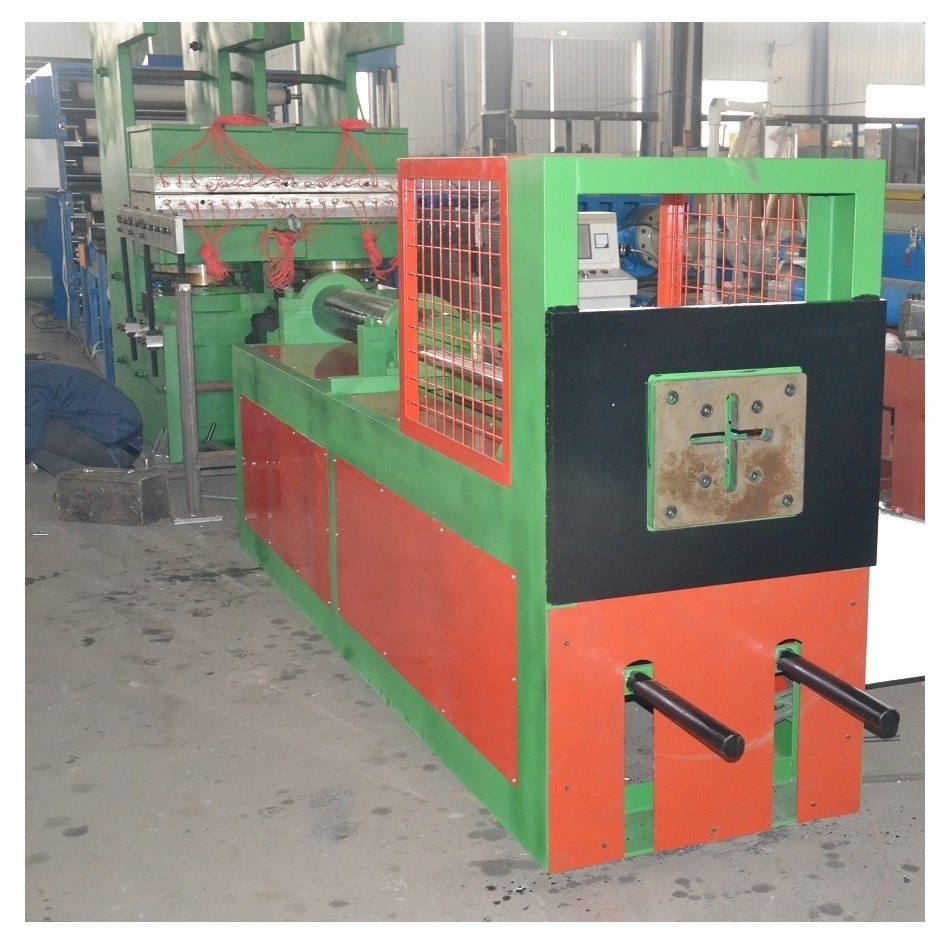

Rubber Powder Making Machine / Tyre Bead Extraction Machine for Old Tires / Single Hook Debeader
|
Model |
LSL-1200 |
|
Working Capacity |
20-40pcs/hours |
|
Max. Tyre Dia. Can be used |
1200mm |
|
Motor Power |
7.5KW |
|
Working Pressure |
13Ton |
|
Oil cylinder telescopic length |
1200mm |
|
Size |
4100x1300x1750mm |
USE:
Pull out the bead wires inside tires’ sidewalls completely before cutting and shredding processed.
This machine consist of motor ,hydraulic system, drawing hook, drawing mouth, and main part, etc. its basic principle is Drien hydraulic system and made the cylinder work by the motor to make the drawing hook liked the cylinder spull pople reciprocate motion. put the tire on the drawing month and jut the drawing mouth to hook steel wire. Meanwhile the rubber part of tire is teared because of the drawing mouth blick it. thus get the effect of separating smoothly.
Structure and principle:
l Hooker, cross-hole plate are made of materials after special treatment, wear-proof, heavy-duty and long life;
l With lifting device, the tire could be loaded for processing at ease to increase handling speed and save labor;
l The lifting and pulling processes are controlled with hand lever manually to ensure process accuracy;
l The hydraulic system adopts international advanced plunger pump technology, low noise, high pressure and improved the stability and life of the machine.
Single Hook Type Tyre Debeader is the part of full automatic production line
|
Model |
LS-1200 |
|
Tire size |
≤ 1200mm |
|
Capacity |
20-50pcs/h |
|
Motor power |
15 kw |
|
Size (LxWxH) |
2300*2000*1530 mm |
|
Weight |
Whole Tire Shredder
Rubber Cracker Mill
Main Features:
a. Grooved & Smooth Roller: Chilled casting iron alloy.
b. Emergency brake device: Manual and automatic.
c. Famous motor.
d. Durable transmission system.
e. Esay assembly and operation.
f. CE, ISO approved.
Parameter:
| Parameter \ Model | XKP-560 | XKP-450 | XKP-400 |
| Front roller diameter (MM) | 560 | 450 | 400 |
| Back roller diameter (MM) | 510 | 450 | 400 |
| Roller length (MM) | 800 | 650 | 600 |
| Front roller surface speed (m/min) | 25.56 | 23.2 | 17.32 |
| Friction ratio | 1:1.3 | 1:1.38 | 1:1.38 |
| Max. nip | 15 | 8 | 8 |
| Feeding capacity (KG/H) | 1500 | 600-800 | 200-300 |
| Motor power (KW) | 75 | 55 | 45 |
| Measurement (MM) | 5064x2284x1978 | 4770x1846x1835 | 3950x1800x1780 |
| Weight (KG) | 19000 | 19000 | 19000 |
4. Rubber Floor Tile Hydraulic Press Vulcanizing Machine:
Parameter:
| Item | XLB-D500*500*4 vulcanizing machine | |
| Total pressure | MN | 0.80 (80 tons) |
| Hot plate size | MM | 500*500 |
| Plate clearance | MM | 125 |
| Working layer | layer | 4 |
| Hot plate quantity | Piece | 5 |
| Piston stroke | MM | 500 |
| Piston quantity | Set | 1 |
| Piston diameter | MM | 200 |
| Structure mode |
|
Four columns |
| Operation system |
|
Manual operation |
| Working pressure | Mpa | 2.52 |
| Motor power | KW | 2.2 |
|
Note:
1-The vulcanizing machine is mainly use to produce rubber tile, each working layer equipped with two sets moulds, it can take turn vulcanization, improving production efficiency. 2-The machine is including 4 sets moulds. |
||
1.
Question:
Are you a factory or trading company?
Answer:
We are factory.
2.
Question:
Where is your factory?How can i visit ?
Answer:
Our factory located in qingdao city.You can fly to qingdao liuting airport,then we can pick you up to our facotry to visit.Warm welcome to visit us.
3.
Question:
How does your factory control the quality of machines and after sales service?
Answer:
Our machines passed CE,ISO,SGS certification,pls confirm the quality.All our machines have 1 year guarantee, will provide lifetime maintenance.
4.
Question:
What’s your payment term?
Answer:
Common is 40% deposit by T/T,the balance paid against shipping documents.Or L/C at sight.
5.
Question:
Can you design new product for us?
Answer:
we have a professional development team that make new products according to your requirements.
