Hot sale 5 or 6 tires vulcanizing machine at reasonable cost

Brief introduction
Autoclave curing equipment in the production of rubber products is the first application for many years, although other curing equipment has a great development, until today some rubber products (hose, rubber shoes, rubber vulcanization) also cannot do without it, is molding, adhesive tape box cable products can also be used in autoclave curing, visible. The autoclave is still one of the basic equipment of vulcanization.

Customizable Items

1. Heating way: electric heating air, electric heating oil, steam heating indirectly

2. Control type: automatic, semi-automatic,

3. Number of tires: 3~30 pieces

4. Door’s open and close way: manual, pneumatic, electrical and hydraulic

5. Type of tire: auto tire, truck tire, tractor tire and OTR tire

Functions
1. To make pre-cured tread bonded firmly with old tyre body, automatic temperature-controllation, automatic pressure relief once exceeding the stipulated pressure.
2. Multiple safety interlocks to guarantee safe operation.
3. To make interfusion of pre-cured tread and used tyre core though vacuum pumping, pressurizing and heating and so on, to increase the intensity and wear ability of tread at the same time.

Tires retreading equipment and suitable range
Car tires retreading equipment for 9''- 15'' tires
OTR tire retreading equipment for:22''- 33''
Truck,bustire retreading equipment for 15''-22.5'' tires

Temperature ,pressure, time, adopt the automatic control ,stable and reliable performance ,convenient use ,is a traditional vulcanizing tank equipment.0.6-3.0Mpa design pressure, design temperature150-220’C,600-5000mm in diameter ,length between 1000-60000mm,according to the product technical requirements for individual design customized for clients .Steam tank bottom enters, imported by the automatic control valve at the tank bottom setting steam ,the steam vertical diffusion tube arranged in the tank bottom ,small and medium-sized mouth diffusion tube (3mm,4mm,5mm)arranged according to certain rules and Angle offset, to ensure that the steam into the tank after the temperature even spreading around ,prevent the uneven steam diffusion caused by the different product quality.

Affer setting process ,automatic control system for heating ,heat preservation, sulfide, vulcanization after send out sound light alarm and automatically stop working.

Detailed photos

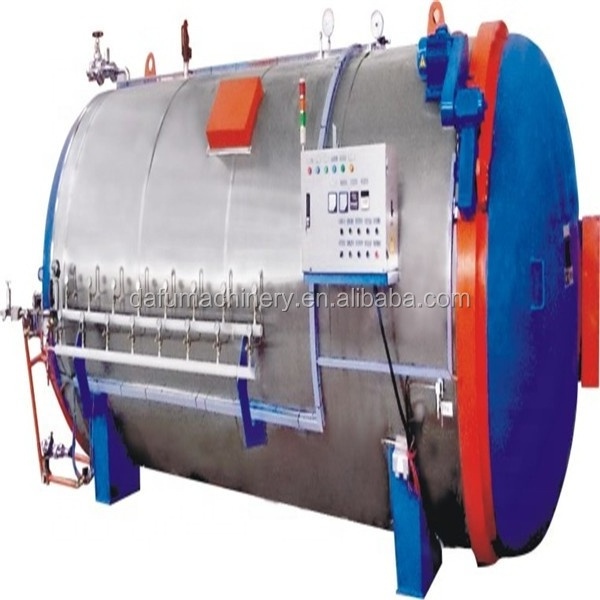

Autoclave. Technical parameter function:

A device for vulcanizing tires during the production of a tire, belonging to a pressure vessel. By inflating and heating the tank, the rubber is vulcanized so that the tread and the tire are tightly joined together. Equipped with a vacuum pump to vacuum the tires. For rim diameter: 15 "- 22.5" working pressure: 0.8Mpa voltage: AC 380V/50 HZ the average curing time: 3.5 Hours (including import gas pressure vessel, time) to the Bureau of Quality Supervision Inspection and quarantine and record, otherwise there will be security risks.

Standard function description:

The automatic switching device of tank door, equipped with three heavy security two spare space, improve the production efficiency of the control system through PID, precise control of curing time, temperature and pressure with temperature compensation, automatic alarm, automatic timer function using DPC (pressure control system), precise control of inner tube, outer envelope and tank pressure, three kinds of heating methods to achieve good curing effect to choose * * *: electric heating, steam heating and heating oil (normal heating mode for electric heating,

If the choice of conducting oil heating, additional conduction oil furnace) optional models: 4, 6, 8, 10, 12, 16, 20, 24, 26, 30

The specifications customers sholud offer:

We will deliver your goods by LCL/20'FCL/40'FCL depending on your order.  Before delivery,our professional technician will do trial run for each product to check until everything is functional,you also can come to our factory and test our machine together with us.   When loading,our workers will fix the retortd tightly with wire rope so that the retorts can't move in the container.  Autoclave is the Export standard package,it is suitable for long distance sea shipping .

Our company is mastered at manufacturing all shapes of autoclave applying in all fields. We promise the high quality and competitive price.

The type and size and heating method of the machine can be customized.

If you are interested in our autoclave machine and want to get more information about it, pls feel free to contact me by sending an inquiry or chating with me online, I will reply as soon as possible. Thanks for your clicking.
