Quick Details
-
Model Number:
-
KG316T
-
Type:
-
timer relay
-
OEM:
-
Acceptable
-
Voltage Range::
-
12VDC/AC,24VAC/DC.48VDC/AC,110VAC,220VAC
-
Dimension:
-
48*95*36.5mm
-
Service life:
-
Mechanical 10^7 ,Electrical 10^7
-
Contact capacity:
-
AC250V 25A
-
Contact Form:
-
1Z Instant Contact 1Z Delay Contact
-
Delay Accuracy:
-
≤ 0.5%
-
Woring Voltage:
-
AC:50HZ,36V,110V,127V,220V,380V DC:12V,24V
-
Delay Specification:
-
0.1s~12h
Quick Details
-
Contact Load:
-
Low Power
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Kampa
-
Model Number:
-
KG316T
-
Type:
-
timer relay
-
OEM:
-
Acceptable
-
Voltage Range::
-
12VDC/AC,24VAC/DC.48VDC/AC,110VAC,220VAC
-
Dimension:
-
48*95*36.5mm
-
Service life:
-
Mechanical 10^7 ,Electrical 10^7
-
Contact capacity:
-
AC250V 25A
-
Contact Form:
-
1Z Instant Contact 1Z Delay Contact
-
Delay Accuracy:
-
≤ 0.5%
-
Woring Voltage:
-
AC:50HZ,36V,110V,127V,220V,380V DC:12V,24V
-
Delay Specification:
-
0.1s~12h

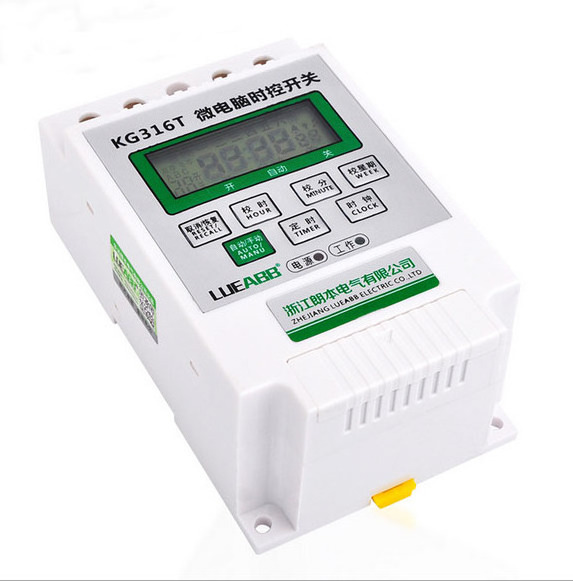

KG316T LCD Microcomputer Digital Remote Light Timer Control Switch
Applications :
KG316-T-II widely used in the production equipment,streer lamp,light box,neon light,warehousevetilation,
agricatrial cultivation,automatic preheating,radio and television,ect,is the ideal control products.
General Information:
This Digital timer is accurate to the minute,designed with 15-combination of Daily-programs which can lead
great convenience to users upon choosing the required days in a week for operation the timer.
Basic Features:
Panel mounted
Advanced pre-setting one week before
Digital electronic timer switch with daily &weekly programs,Repeat programs with 18 on/off setting and
manual override Lithium battery power reserve when electric supply cut off,
TECHNICAL DATA:
| Standard working power supply | 220V/50HZ |
| Voltage range | 176`250V |
| Switch resistance load capacity | 25A |
| Indinductive load | 20A |
| Consumption Power | <3VA |
| Timer Range | 1 mins~168hours |
| Regular timer | 18 times on/off day/week |
| Time error | <1s/day(25℃) |
| Relative humidity | <95% |
| Dimension | 99*56*42mm |
| Weight | 130g |
| Battery life | 5 years |
