Quick Details
-
Voltage:
-
380V
-
No Load Speed:
-
960RPM
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
HC
-
Model Number:
-
HC -P10
-
Warranty:
-
1 year
-
Ceiling Lighting:
-
8 units, LED Light
-
Service time:
-
Lifelong maintenance
-
Usage:
-
Painting
-
Oversea service:
-
Yes
-
Ventilation system:
-
Outlet fan
-
Heating type:
-
No
-
Color:
-
White, blue and red,yellow
-
Control system:
-
Completion
-
Packing details:
-
10CBM
Quick Details
-
Power:
-
3KW
-
External Size:
-
8000*3600*2700mm
-
Internal Size:
-
6500*3500*2500mm
-
Voltage:
-
380V
-
No Load Speed:
-
960RPM
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
HC
-
Model Number:
-
HC -P10
-
Warranty:
-
1 year
-
Ceiling Lighting:
-
8 units, LED Light
-
Service time:
-
Lifelong maintenance
-
Usage:
-
Painting
-
Oversea service:
-
Yes
-
Ventilation system:
-
Outlet fan
-
Heating type:
-
No
-
Color:
-
White, blue and red,yellow
-
Control system:
-
Completion
-
Packing details:
-
10CBM
Product Description

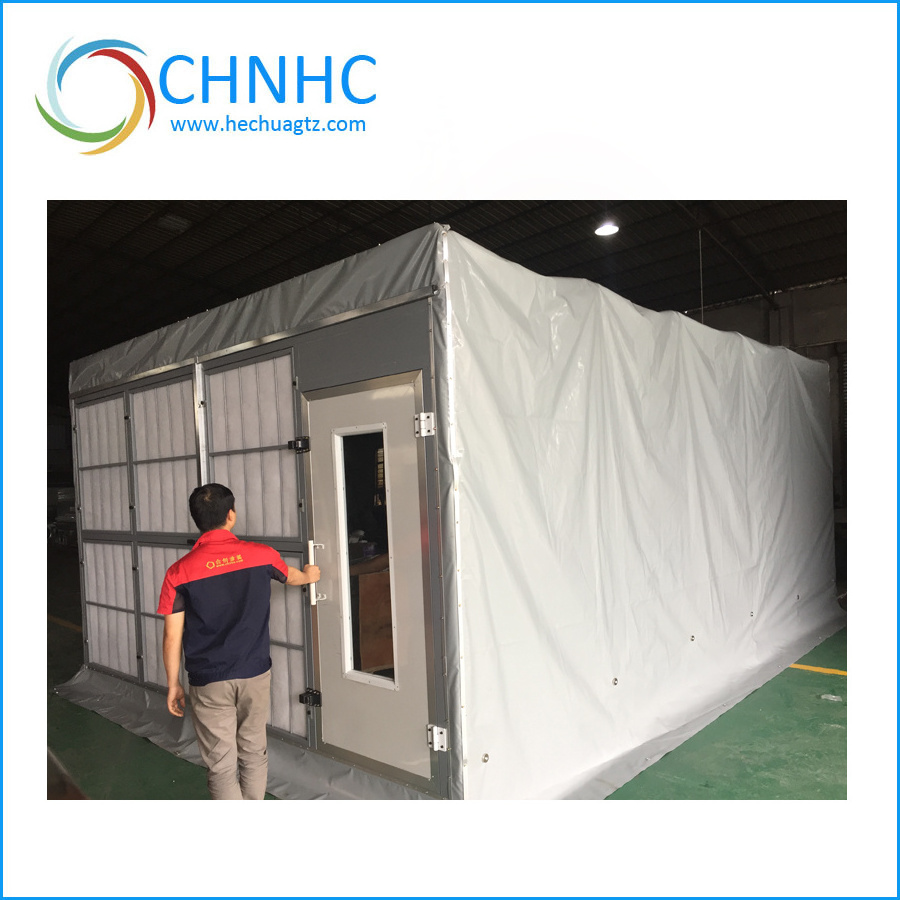

Specification of mobile paint prep station/collapsible paint booth
|
Inside Size |
7000 x 4000 x 2700 mm (L x W x H) |
|
Outside Size |
8000 x 4120 x 3000 mm (L x W x H) |
|
Room composition |
The house is mainly composed of a wind cabinet, a skeleton and a PVC soft curtain. (The color of PVC curtain is basically complete, specifically white, gray, yellow, and transparent. Please confirm when ordering.) |
|
Access filter door |
There is a filter in and out of the front door of the house. The door size is 4000X2700mm, and the high-efficiency air filter cotton is installed on the door. |
|
service door |
Service door is installed on the door, service door size is 800*1900mm, and tempered glass perspective window is installed. |
|
Ceiling Light |
8 groups, each group 20W, LED explosion-proof lights |
|
Side light |
Option |
|
exhaust filter |
V paper filter and paint-stop filter |
|
Outlet fan |
The exhaust is equipped with a 3KW aluminum alloy vane axial flow fan (external motor), 380V, 50HZ |
|
Fan Capacity |
18,000m ³ /h |
Package and Shipping
Package: Professional export package-use the iron bracket package
Loading situations: 10CBM
