Quick Details
-
Warranty:
-
1 year
-
Brand Name:
-
KAISLEN
-
Model Number:
-
SCM26S
-
Place of Origin:
-
Zhejiang, China
-
Horsepower:
-
1HP
-
Structure:
-
Other
-
Outlet Size:
-
1.25"*1"INCH
-
Power:
-
0.75KW
-
motor:
-
As customer request
-
Usage:
-
Clean Water Transportation
-
Pump body:
-
Cast Iron/stainless steel
-
Shaft:
-
304 stainless steel/45#carbon steel
-
Impeller:
-
Brass/PPO/stainless steel
-
Motor:
-
closed, externally ventilated
-
Standard or Nonstandard:
-
Standanrd
-
Certification:
-
CE Certificate
-

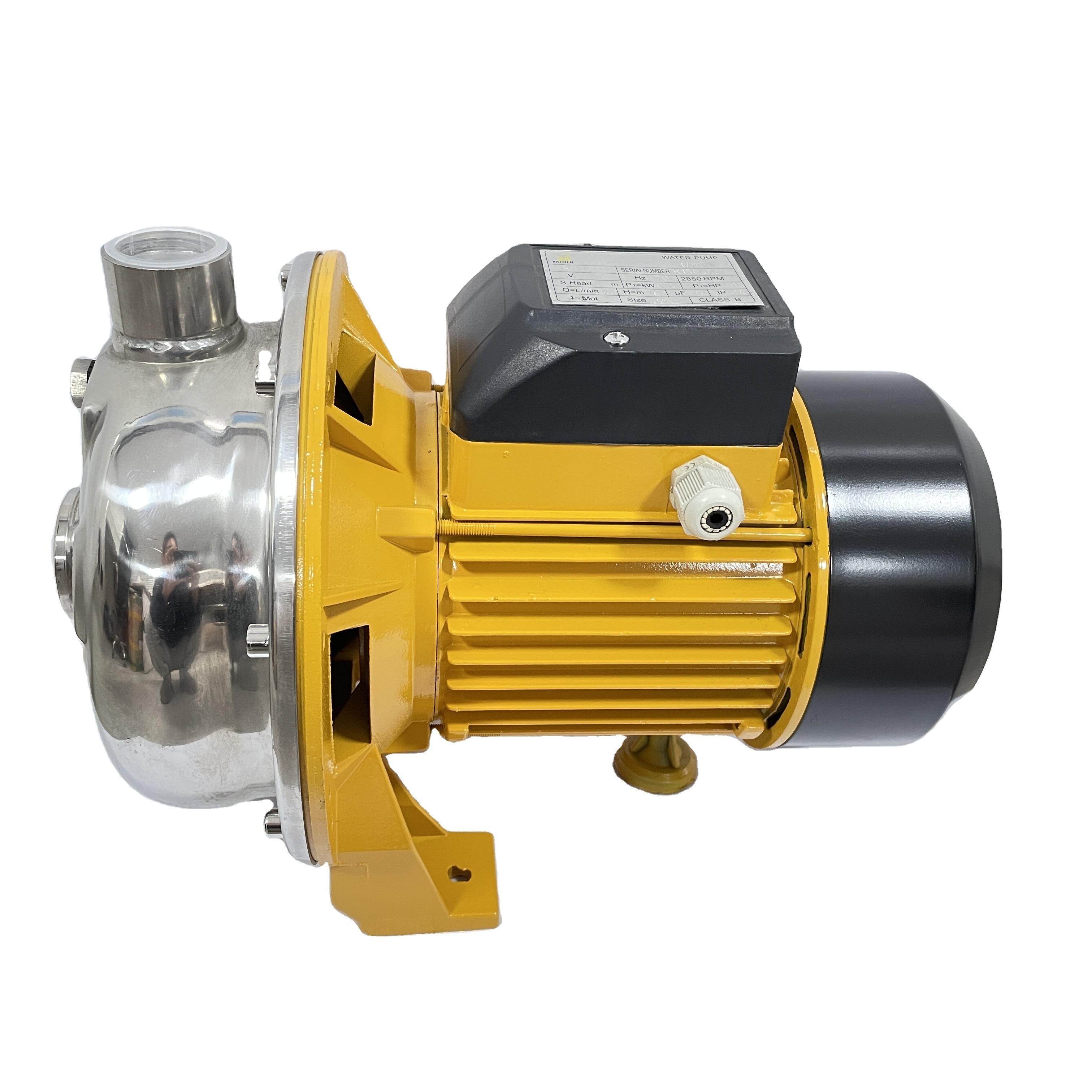

Product name:
-
Centrifugal pump
-
Color:
-
Customers' Requirement
Quick Details
-
Application:
-
Commercial Buildings, Family Homes, Irrigation and Agriculture, Water Distribution
-
Pressure:
-
Other
-
Voltage:
-
220V /110V, 220/380V
-
Warranty:
-
1 year
-
Brand Name:
-
KAISLEN
-
Model Number:
-
SCM26S
-
Place of Origin:
-
Zhejiang, China
-
Horsepower:
-
1HP
-
Structure:
-
Other
-
Outlet Size:
-
1.25"*1"INCH
-
Power:
-
0.75KW
-
motor:
-
As customer request
-
Usage:
-
Clean Water Transportation
-
Pump body:
-
Cast Iron/stainless steel
-
Shaft:
-
304 stainless steel/45#carbon steel
-
Impeller:
-
Brass/PPO/stainless steel
-
Motor:
-
closed, externally ventilated
-
Standard or Nonstandard:
-
Standanrd
-
Certification:
-
CE Certificate
-
Product name:
-
Centrifugal pump
-
Color:
-
Customers' Requirement
Details Images
Warranty: 1 Year
Power: 0.75kw
Brand Name: Kaislen
Place of Origin: Zhejiang, China
Place of Origin: Zhejiang, China
Horsepower: 1hp
Power Source: Electric
Structure: C entrifugal pump
Power Source: Electric
Structure: C entrifugal pump
Outlet Size: 1.25"*1"inch
Material:
Cast iron/stainless steel
Model Number: SCM26S
Application: gards, hotel, villas and agricultural irrigation,etc.
Voltage: 220V/110V
Product name: C
entrifugal Pump Series
Standard or Nonstandard: Standard
Standard or Nonstandard: Standard
Certification: CE
Products Description
|
Application
|
Operating Limits
|
Structural Characteristics
|
Performance
|
|
The CPM series pumps are high-efficient, power-saving and compact in structure,convenient to operate and maintain. The hydrautic
character. is with stable headumd hich capacily. They are suitable for both domestic and inclustrial applications to convey clean water and non-aggres, chemical liquid. The pumps also can be applied to supply the water for gards, hotel, villas and agricultural irrigation,etc. Pumps should be installed in a covered area,protected against the weather. |
*Max ambient temperature up to 40°C
*Max fluid temperature up to 60°C *Suction lift up to 8m |
*Pump Body: cast iron/stainless steel
*Motor Housing:aluminum *Shaft:304 stainless steel/45# carbon steel *Impeller:brass/ppo/stainless steel *Motor:closed, externally ventilated *Insulation Class:B/F *Protection Class:IP44/IP54 *Duy:continuously rated *Mechanical Seal:ceramic steatite/metalized carbon |
*Ample and stable characteristic curves;
*Outputs having good absolute values and tendencially flat curves; *Flat absorption curves at high delivery rates,preventiong motor overloading even during prolonged use; *Good suction capacities both ate low and high delivery rates. |
