Quick Details
-
Signaling Complaint:
-
ISDN PRI, SS7, V5.2, R2, Q.SIG,DPNSS
-
ISDN Interface:
-
Up to 8 E1/T1, G.703, 75Ω or 120Ω, RJ45
-
Dimension:
-
480mm*290mm*40mm
-
Height:
-
1U height in the standard Rack
-
Input Voltage:
-
-48v DC or 200~240V AC
-
Ethernet/LAN:
-
RJ45 to RJ45, 10/100Base-T,IEEE 802.3
-
Voice Codec:
-
G.711,G.723,G.729, G.726,GSM,ARM,ILBC;
-
Fax:
-
T.38 and pass through
-
Echo Cancellation:
-
G.168 128ms Network Echo Canceller
-
Protocol Complaint:
-
SIP 1.0/2.0
Quick Details
-
Type:
-
VoIP Gateway
-
Brand Name:
-
Niceuc
-
Place of Origin:
-
Guangdong, China
-
Signaling Complaint:
-
ISDN PRI, SS7, V5.2, R2, Q.SIG,DPNSS
-
ISDN Interface:
-
Up to 8 E1/T1, G.703, 75Ω or 120Ω, RJ45
-
Dimension:
-
480mm*290mm*40mm
-
Height:
-
1U height in the standard Rack
-
Input Voltage:
-
-48v DC or 200~240V AC
-
Ethernet/LAN:
-
RJ45 to RJ45, 10/100Base-T,IEEE 802.3
-
Voice Codec:
-
G.711,G.723,G.729, G.726,GSM,ARM,ILBC;
-
Fax:
-
T.38 and pass through
-
Echo Cancellation:
-
G.168 128ms Network Echo Canceller
-
Protocol Complaint:
-
SIP 1.0/2.0

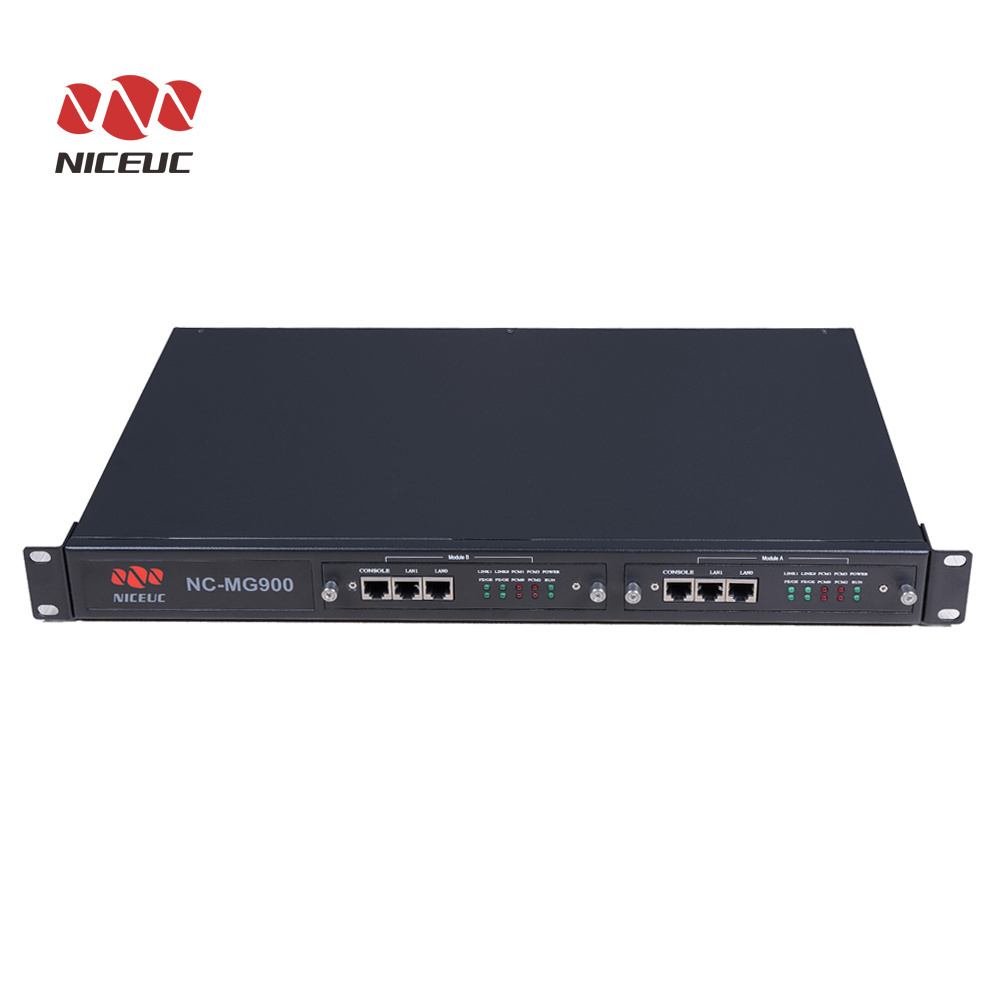

MG900 E1 VoIP Media Gateway with SIP trunk
8E1 VoIP Media Gateway with SIP trunk NC-MG900, support SS7, ISDN PRI, V5.2, R2, CAS, Q.SIG, DPNSS to SIP
Compitable with Asterisk, Cisco call manager, Free switch, 3CX, Mircrosoft Lync, VOS, etc.
Configure, Monitor, Management, Backup, Update: by RS232 console port, Telnet, WEB.
Our service: 7*24 supports for ever.
Warrantly: three years.
Delivery time: 1 day.
Advantage:
1. Modular design with up to 8 E1/T1 ports (Two modules, Each module supports maxima 4E1);
2. Complete Signaling (SS7/ISDN PRI/V5.2/Q.SIG/R2/SIP/T.38);
3. The best device for Call Center;
Description:
NC-MG900 is a cost effective and standards-complaint VoIP Media Trunk Gateway, which is generally called TG/SG or VoIP Voice Gateway, designed for enterprise users and ITSP (Internet Telephony Service Provider) environments.
NC-MG900 locates on the interface of PSTN and IP network, providing signaling transform between SS7, ISDN PRI, V5.2 signaling and SIP Protocol, as well as media transfer between the PSTN and IP network.
Signalings, Protocol and Codec that support by NC-MG900:
·Signaling support:
-SS7 (ITU-T Q.700 series), 24 bits/14 bits PC, ISUP/TUP;
-ISDN-PRI (ITU-T Q.931, Q.921);
-V5.2 (ITU-T G.964, G.965)
-CAS
·VoIP protocol support:
-SIP
RFC3326(Reason header in SIP messages)
RFC3372(SIGTRAN and SIP-T)
RFC2327(sdp)
RFC3398(ISUP-SIP Mapping)
RFC3261(sip)
RFC5806(Diversion Indication in SIP)
RFC2833( DTMF )
RFC3362(t.38)
RFC 3261(SIP 2.0)
RFC3204(MIME media types for ISUP and QSIG Objects)
RFC3578(Mapping of ISUP overlap to SIP))
-Voice Codec
:G.711 U-Law and A-Law, G.711 Appendix 1, G.723.1 and G.723.1 Annex A, G.729 Annex A and Annex B, G.726,GSM,ARM,ILBC;
Features:
·Echo Cancellation: G.168 128 ms Network Echo Canceller;
·Fax Support T38 and pass through;
·64 conference call support;
·Generic Voice Activity Detection (VAD);
·Generic Comfort Noise Generation (CNG);
·Calling control: Called/Calling party number translation, second stage dialing, Auto dialing with DTMF, Ring Back tone;
·Flexible call routing management;
Capacity:
·A 1U equipment can have 2 independent VoIP modules;
·Each Module contains:
-1~4 E1;
-128 G.711 Channels;
-64 G.723, G.726, G.729 Channels;
-32 T.38 Fax Channels, 64 Conference Bridge;
|
Capacity |
||||||
|
Type |
Capacity |
|||||
|
The number of single moudle |
2 |
|||||
|
E1/T1 |
4 |
|||||
|
G.711 |
128 Channels |
|||||
|
G.723/G.729 |
128 Channels |
|||||
|
T.38 |
64 Channels |
|||||
|
Physical Specification |
||||||
|
Interface |
Standard |
The Type of Connector |
||||
|
PCM |
E1,T1,G.703 |
RJ45 |
||||
|
Ethernet port |
10/100Base-T,IEEE 802.3 |
RJ45 |
||||
|
Console |
RS232 |
RJ45 |
||||
|
Item |
Specification |
|||||
|
Input voltage |
-48v DC or 200~240V AC |
|||||
|
Power |
30 w |
|||||
|
Dimension |
(width×depth×height) |
48 5 mm× 286 mm×4 4 mm (1U) |
||||
|
Weight |
3.5 kg s |
|||||
|
Environment |
Temperature |
0°C~50°C |
||||
|
Rel Humidity |
Less than 80% |
|||||
The detailed configuration of this series
|
Configuration Capacity |
|||||||
|
Type |
NC-MG 9 00-101 |
NC-MG 9 00-102 |
NC-MG 9 00-104 |
NC-MG 9 00-204 |
NC-MG 9 00-208 |
NC-MG1000 |
|
|
Module |
1 |
2 |
2 |
13 |
|||
|
E1/T1 |
1 |
2 |
4 |
8 |
24 or 32 or 48 or 52 |
||
|
G.711 VoIP |
32 |
64 |
128 |
128 |
240 |
1560 |
|
|
G.723/ G.729 |
32 |
64 |
64 |
128 |
128 |
780 |
|
|
T30/T.38 |
32 |
32 |
32 |
64 |
64 |
416 |
|
|
Specification (quantity of interface) |
|||||||
|
Interface |
NC-MG 9 00-101 |
NC-MG 9 00-102 |
NC-MG 9 00-104 |
NC-MG 9 00-204 |
NC-MG 9 00-208 |
NC-MG1000 |
|
|
PCM |
1 |
2 |
4 |
8 |
52 |
||
|
Link |
1 |
2 |
2 |
26 |
|||
|
Console |
1 |
2 |
2 |
26 |
|||
|
Power |
1 |
1 |
1 |
1 |
1 |
1 |
2 |
1.
2.
3.
4.
1. Work from E1 to Ethernet (SIP), and vice versa.
2. ITSP to PSTN (and vice versa)
3. Work as access device in IP Call Center or IP Dispatching System
4. Build or Connect Network for Enterprise. (For example, connect Headquater in place A and Branches in place B)
5. Real Application from customer in India
6. Real Application from V5.2 to SIP
Modular Design, Easy Expansion
All kinds of our products use modular design, it is very easy to expand capacity by inserting modules. At first, you can place an order with small capacity, after testing, if you want to expand, it is no need to change a device, just need to buy some modules, it is very convenient.
All kinds of signalings on E1 ports
We have been producing E1 products from 2001 year. So we have excellent experience on E1 ports, they support all kinds signaling like ISDN PRI, SS7, R2/CAS, Q.SIG, V5.2, DPNSS, etc. Make connection between different signalings or between PSTN and Ethernet.
All-in one interface on one device
With independent self-development ability, all kinds of interfaces can be supported by one device in our company: E1, FXO/FXS, GSM/CDMA/WCDMA, E&M, Magnet, Radio/VHF/PTT, X86/MIPs. You can install your own software into our gateway by X86 or MIPs card.
