Make the most of your airblast sprayer, your most valuable orchard asset.
- Product Details
- {{item.text}}
Quick Details
-
Feature:
-
evenly spraying, high production efficiency,
-
Marketing Type:
-
New Product 2022
-
Weight:
-
150 KG
-
Product name:
-
Trail Type Air Blast Sprayer
-
Type:
-
Farm Equipment
-
Application:
-
Grassland, mountains, slopes, and hills of pastoral, farm
-
Characteristics:
-
Evenly spraying
-
Capacity:
-
400L 500L 800L 1200L 1500L
-
Horizontal range:
-
14000mm 20000mm
-
Suitable:
-
Suitable for large -scale orchards
-
Function:
-
Generate a strong airflow
-
Packing:
-
Standard packaging
-
used for:
-
prevention and treatment of diseases and insect pests
Quick Details
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
ShuoXin
-
Diameter:
-
79 cm
-
Feature:
-
evenly spraying, high production efficiency,
-
Marketing Type:
-
New Product 2022
-
Weight:
-
150 KG
-
Product name:
-
Trail Type Air Blast Sprayer
-
Type:
-
Farm Equipment
-
Application:
-
Grassland, mountains, slopes, and hills of pastoral, farm
-
Characteristics:
-
Evenly spraying
-
Capacity:
-
400L 500L 800L 1200L 1500L
-
Horizontal range:
-
14000mm 20000mm
-
Suitable:
-
Suitable for large -scale orchards
-
Function:
-
Generate a strong airflow
-
Packing:
-
Standard packaging
-
used for:
-
prevention and treatment of diseases and insect pests
Products Description

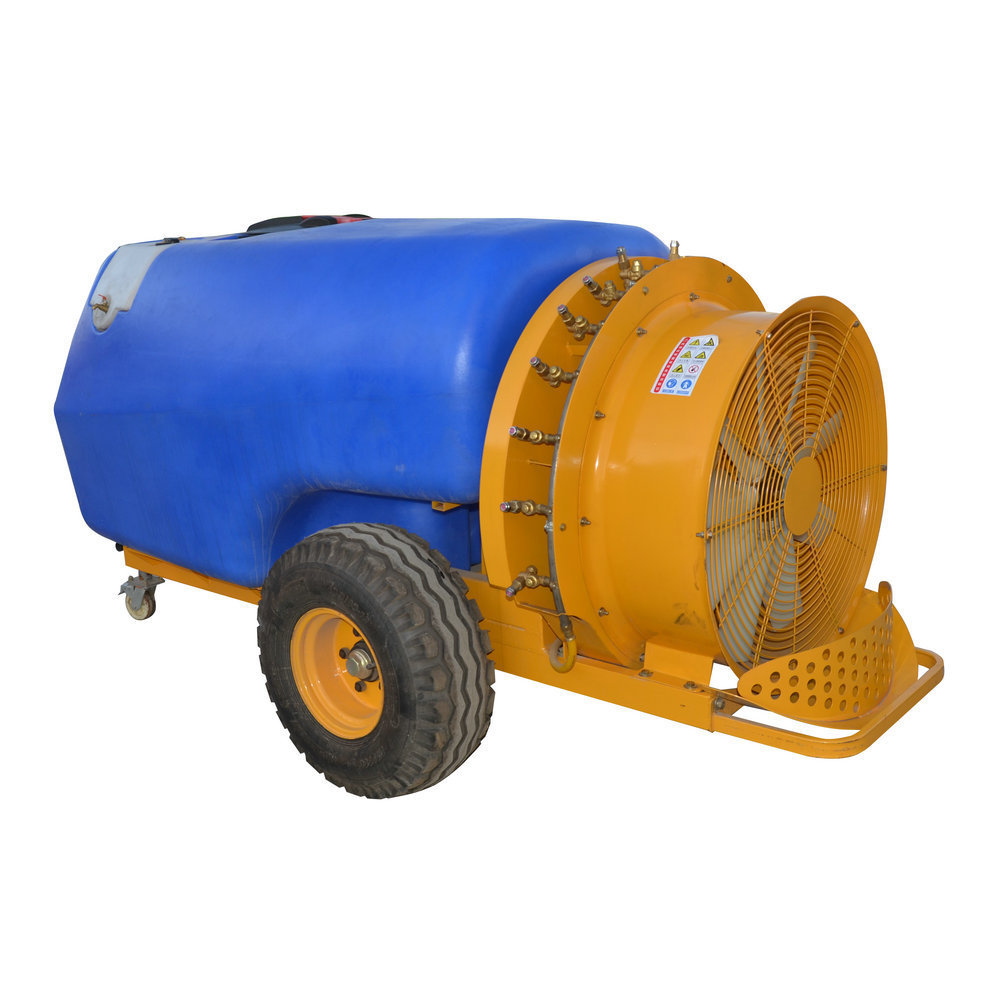

Air Blast Sprayers
will help you cover both sides of the leaf by providing complete coverage with our adjustable air-assisted design. Our Shuoxin Air Blast Sprayer’s compact frame can be pulled by a small tractor and is ideal for vineyard and young orchard spraying. The 800L -2000L Mega Squirt can tackle orchard spraying jobs.
Details Images
Huge Fan
Huge Fan with diameter of 800mm, which can give longer
Horizontal Range
12 Nozzles
12 Strong Brass Nozzles in two side of the parayer part,
Angle and velocity can be adjusted.
Tractor trailer type
Strong Tyres loading
system, use best steel part to load the huge tank
.
Iron Fan Cover and Guide
Steel Wire made fan cover can protect the fan and improve air flow, Iron guide to protect the fan and nozzle.
PTO Transmission Pump
Diaphragm pump with 4/6 cylinders are available.
Water manifold
Water Three valve manifold plastic and alloy material available, Internal jet agitator covered.
Product Paramenters
|
Model
|
3WFQ-800
|
3WFQ-1000
|
3WFQ-1200
|
3WFQ-1500
|
3WFQ-2000
|
||||
|
Tank capacity(L)
|
800
|
1000
|
1200
|
1500
|
2000
|
||||
|
Dimension(mm)
|
2300*1300*1400
|
2660*1300*1460
|
3100*1400*1500
|
3300*1400*1500
|
3720*1510*1630
|
||||
|
Horizontal range(M)
|
20
|
22
|
22
|
22
|
22
|
||||
|
Working pressure
|
0.5-1.0mpa
|
0.5-1.0mpa
|
0.8-1.0mpa
|
0.8-1.0mpa
|
0.8-1.0mpa
|
||||
|
Pump
|
Diaphragm pump
|
|
|
Diaphragm pump
|
|
||||
|
Matched Power(HP)
|
50
|
50
|
50
|
50
|
50
|
||||
|
Rated Flow(L/min)
|
80-100
|
80-100
|
80-100
|
80-100
|
100-140
|
||||
Our Advantages
Self-cleaning pressure line strainers
Brass or Plastic flipover nozzle bodies
Frame, blower and other Iron components are Spray-painted
|
Polyethylene tank with hydraulic jet agitation
|
|
Clean water hand wash safety tank
|
|
External tank level sight gauge
|
|
Hinged tank lids with strainer baskets
|
|
In tank chemical mixer
|
|
Branded diaphragm pump
|
|
Large, easy-to-access suction strainer
|
|
Stainless steel boom pipes
|
|
Nozzles: one set for dilute spraying, the other for concentrate spraying
|
|
Standard PTO shaft with cover
|
