Quick Details
-
Voltage:
-
customized
-
Dimension(L*W*H):
-
customized
-
Warranty:
-
2 Years
-
Weight:
-
30-100 Ton
-
Power:
-
depends on machine size
-
Certification:
-
ISO
-
Application:
-
conveyor belt producing
-
Control method:
-
automatic, PLC
-
plate size:
-
customized
-
power:
-
customized
-
Heating mode:
-
steam, conduct oil
-
technology service:
-
engineer available
-
HS code:
-
8477
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
HITOP
-
Model Number:
-
HT- C belt vulcanizer
-
Voltage:
-
customized
-
Dimension(L*W*H):
-
customized
-
Warranty:
-
2 Years
-
Weight:
-
30-100 Ton
-
Power:
-
depends on machine size
-
Certification:
-
ISO
-
Application:
-
conveyor belt producing
-
Control method:
-
automatic, PLC
-
plate size:
-
customized
-
power:
-
customized
-
Heating mode:
-
steam, conduct oil
-
technology service:
-
engineer available
-
HS code:
-
8477

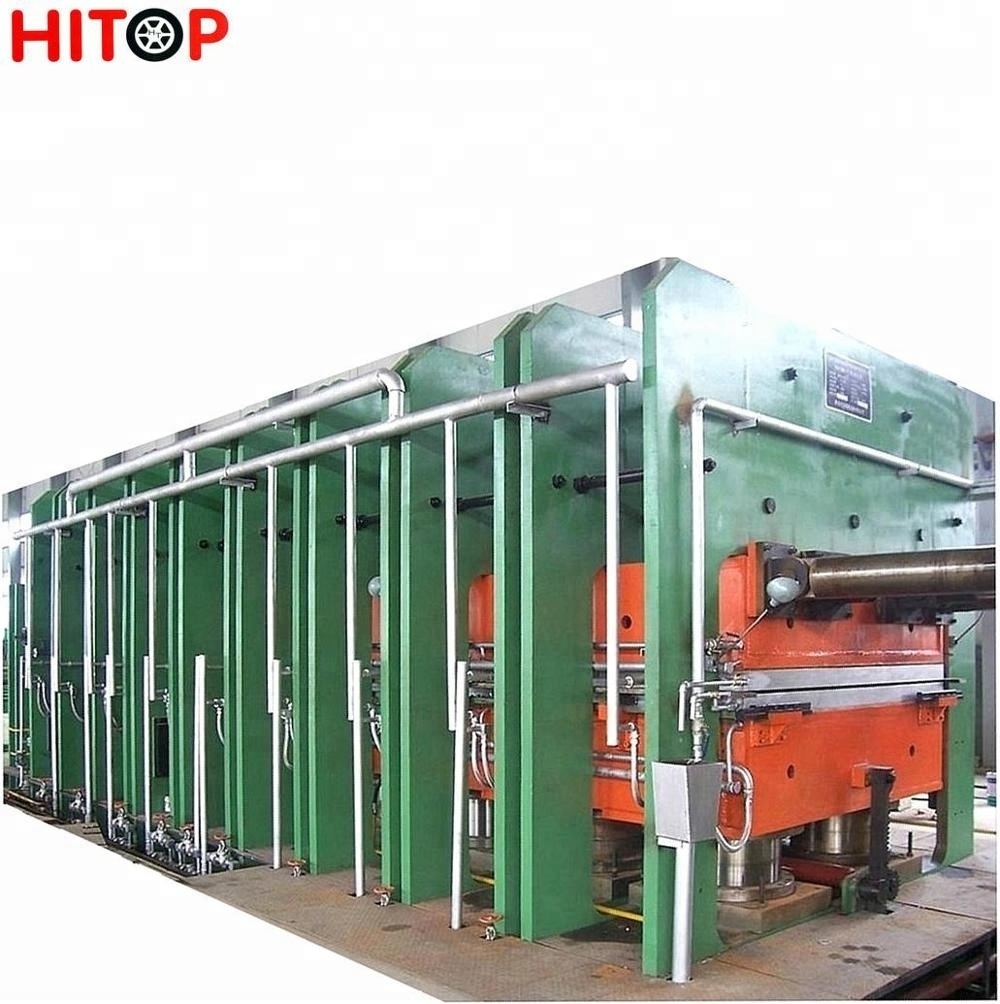

conveyor belt vulcanizer machine
Equipment flow:
under-cloth take-up → green strip unwinding → front entrap stretching→ main vulcanizer → middle entrap → pull –off pan unit→ carrier roller group → multifunction unit machine group → repairing vulcanizer → Winding packing machine
TECHNICAL DATA
|
Control form |
PLC controlled |
|
Structure form |
single layer oil pressure upper travel |
|
Hot board specification |
1380×10000×90mm |
|
Vulcanized rubber belt width |
600 ~ 1200mm |
|
Vulcanized rubber belt thickness |
δ8 ~ δ32mm |
|
Total pressure |
38400KN |
|
Unit pressure |
320N/cm 2 |
|
Travel of shaft |
300mm |
|
Shaft Dia. |
Φ450mm |
|
Shaft Number |
12pcs |
|
Working pressure Using High pressure oil |
8 ~ 22Mpa |
|
Working Pressure using low pressure oil |
1.4 ~ 2.5Mpa |
|
Bottom mounting plate lifting speed |
360mm/min |
|
Bottom mounting plate Descending speed |
by self weight |
|
Working temperature of Hot board |
170℃ |
|
Max. Steam pressure |
0.8Mpa |
We produce full set conveyor belt production line.
Conveyor belt building machine
Project in building
Finished project
