Quick Details
-
Brand Name:
-
PROYU
-
Model Number:
-
PY-113N
-
Data Storage Options:
-
NONE
-
Product Name:
-
Electronic Combination Digital Code Lock for Small Cabinet
-
Unlock way:
-
Password
-
Working Mode:
-
Fixed/One-Time Password Mode
-
PY-S113N:
-
Support Card+ Password
-
Password Length:
-
4-10 Digits
-
Power supply:
-
DC6V, 4pcs AA alkaline batteries
-
Material:
-
Zinc Alloy
-
Suitable for:
-
Small Cabinet
-
Application:
-
office cabinet,sauna cabinet,document cabinet
-
Warranty:
-
1 Year
Quick Details
-
Door Type:
-
Wood door, Steel door, Stainless Steel door, Aluminum door
-
Network:
-
NONE
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
PROYU
-
Model Number:
-
PY-113N
-
Data Storage Options:
-
NONE
-
Product Name:
-
Electronic Combination Digital Code Lock for Small Cabinet
-
Unlock way:
-
Password
-
Working Mode:
-
Fixed/One-Time Password Mode
-
PY-S113N:
-
Support Card+ Password
-
Password Length:
-
4-10 Digits
-
Power supply:
-
DC6V, 4pcs AA alkaline batteries
-
Material:
-
Zinc Alloy
-
Suitable for:
-
Small Cabinet
-
Application:
-
office cabinet,sauna cabinet,document cabinet
-
Warranty:
-
1 Year
Products Description
|
Material
|
Zinc Alloy
|
|
Unlock
|
Password
|
|
Password Length
|
4-10 Digits
|
|
Password Capacity
|
One group Master password, One group User password
|
|
Card Capacity (PY-S113N)
|
One master card, 10 pcs user card (Private mode)
|
|
Card type (PY-S113N)
|
Public Mode OR Private (Independent) Mode
|
|
Work mode
|
Public Mode OR Private (Independent) Mode
|
|
Power supply
|
DC6V( AA1.5V*4) alkaline battery
|
|
Emergency power
|
External power box
|
|
Static current
|
<10uA
|
|
Dynamic current
|
<220mA
|
|
Alarm power
|
< 4.7V
|
|
Work temperature
|
15°C ~ 65°C
|
|
Work humidity
|
5%~95%RH(No condensation)
|
|
Suitable for
|
Small Cabinet
|
|
Usage
|
Gym/Spa/Swimming , sauna , golf
|
|
Steel Cabinet
|
8-15 mm (Door Thickness)
|
|
Wooden Cabinet
|
15-25mm (Door Thickness)
|
Product Functions
1.Sound indicate function
Different operation with different sounds to indicate
2.LED indicate function
3 kinds different color LED to indicate((yellow LED means ,red LED means low voltage, green LED means unlock)
3.Emergency open:
1When battery have not enough power to drive motor,users can connect external power supply to (Battery case) supply power to turn on lock;
2)When uses forget password,users can input master code or frame hopping to turn on lock;
3)If there are problem in electronic or mechanism, users need to destroy panel to turn on lock
4.Alarm for low power
When power is too low,input password to turn on lock, red LED will flicker and with 4 groups alarm,after alarmed still can turn on lock about 100 times.
5.Password digits:
User code and Master code 4-10 digits ; Frame hopping is 10 digits
6.Restore password:
1When users forget password, input master code to turn on,and then user code will recover to default code
2)When forget master code,keep pressing restore button(On main PCB) about 3 seconds,then master code will recover to be default master code
7. Multilevel code manage:
There are different level password to manage ,such as user code,master code and frame hopping.User code and master code can be changed as customer's requirements.
8.Password protect function
When input wrong password, yellow LED will display 4 times and buzzer make 4 sound;if continuous input wrong password 3
Different operation with different sounds to indicate
2.LED indicate function
3 kinds different color LED to indicate((yellow LED means ,red LED means low voltage, green LED means unlock)
3.Emergency open:
1When battery have not enough power to drive motor,users can connect external power supply to (Battery case) supply power to turn on lock;
2)When uses forget password,users can input master code or frame hopping to turn on lock;
3)If there are problem in electronic or mechanism, users need to destroy panel to turn on lock
4.Alarm for low power
When power is too low,input password to turn on lock, red LED will flicker and with 4 groups alarm,after alarmed still can turn on lock about 100 times.
5.Password digits:
User code and Master code 4-10 digits ; Frame hopping is 10 digits
6.Restore password:
1When users forget password, input master code to turn on,and then user code will recover to default code
2)When forget master code,keep pressing restore button(On main PCB) about 3 seconds,then master code will recover to be default master code
7. Multilevel code manage:
There are different level password to manage ,such as user code,master code and frame hopping.User code and master code can be changed as customer's requirements.
8.Password protect function
When input wrong password, yellow LED will display 4 times and buzzer make 4 sound;if continuous input wrong password 3
Advantages:
1. No need writting/ stand-alone /easy to set up
2. With external power interface (Audio interface) for emergency.
4. Auto-rebounce function without handle, easy operate.
5. Applicable to agent , school, spa/sauna bath center, swimming pool, gym, golf, supermarket, hotel, company, factory, business,
household, etc.
2. With external power interface (Audio interface) for emergency.
4. Auto-rebounce function without handle, easy operate.
5. Applicable to agent , school, spa/sauna bath center, swimming pool, gym, golf, supermarket, hotel, company, factory, business,
household, etc.
Details Images

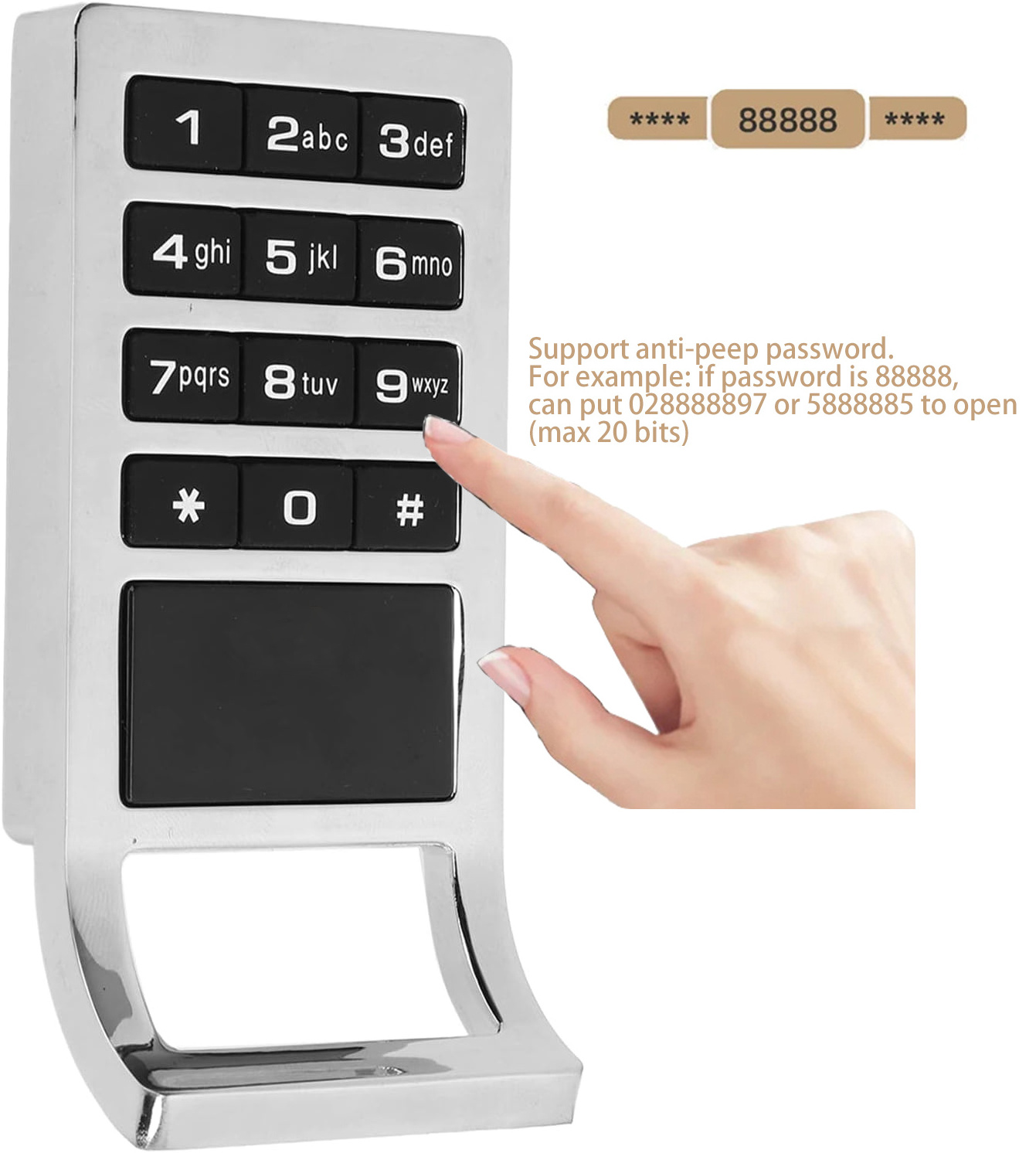

PY-113N Code Function
