electric street sweeper

FOB Reference Price: Get Latest Price

≥1 Pieces

US $14800

≥5 Pieces

US $14000

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Dimension(L*W*H):: 4080*1800*2050mm

Weight (KG):: 1750 kg

Product name:: electric street sweeper

Sweeping width:: 1800mm

Cleaning efficiency:: 16000m2/h

Gradeability:: 20%

Main brush length:: 700mm*4piece

Side brush diameter:: 700mm*2+500mm*2

Power supply:: 15.2kwh

Working time:: 4-5h

Water tank capacity:: 200L

Dustbin capacity:: 240L

Quick Details

Place of Origin:: Jiangsu, China

Brand Name:: MINGNUO

Power:: 7500W

Dimension(L*W*H):: 4080*1800*2050mm

Weight (KG):: 1750 kg

Product name:: electric street sweeper

Sweeping width:: 1800mm

Cleaning efficiency:: 16000m2/h

Gradeability:: 20%

Main brush length:: 700mm*4piece

Side brush diameter:: 700mm*2+500mm*2

Power supply:: 15.2kwh

Working time:: 4-5h

Water tank capacity:: 200L

Dustbin capacity:: 240L

Product Overview

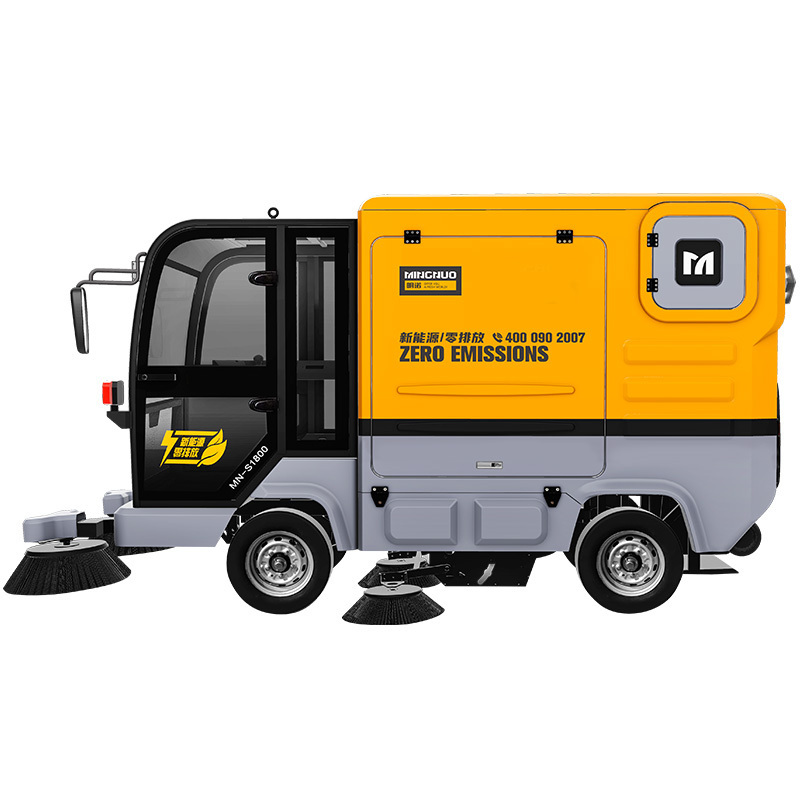

240L Electric sweeper MN-S1800

MN-S1800 adopts 240L standard garbage can to collect garbage, hydraulic lifting, and the replacement of garbage can is convenient and fast. The conveying barrel adopts multi roller brush structure, which has the advantages of low energy consumption, low noise and easy maintenance. It is suitable for sanitation system and cleaning of back streets and alleys

FEATURES AT A GLANCE

stylish apperance design

4 pieces*700mm main brush design

1900mm sweeping width

16000m2/h cleaning efficiency

15.2kwh lithium battery power supply

4-5h working time

20% gradeability

200L water tank capacity

240L dustbin capacity

Front design

Rear design

Side design

PRODUCT SPECIFICATIONS

No	Item	Data	11	Working power(main brush+fan motor+side brush+vibrating motor)	(1000+800×4)+800+100×4+50W
1	Sweeping width	1900mm	12	Working speed	3-7km/h
2	Cleaning efficiency	16000m2/h	13	Driving speed	20km/h
3	Gradeability	20%	14	Filtering area	8m2
4	Main brush length	700mm*4pieces	15	Turning radius(turn in place)	3500mm
5	Side brush diameter	700mm2 pieces+500mm2pieces	16	Hydraulic system power	2200W
6	Power supply	15.2kwh lithium battery	17	Wheelbase	1750mm
7	Working time	4-5h	18	Dimension	4080×1800×2050
8	Water tank capacity	200L	19	Net weight	1750KG
9	Dustbin capacity	240L	20	Air condition	standard
10	driving power	7.5kw	21
