Quick Details
-
Model Number:
-
SIS
-
Max. Current:
-
20A to 63A
-
Pole:
-
1, 2, 3, 4Poles (optional)
-
Certificate:
-
SAA, CB, CE
-
Weatherproof:
-
IP66
-
Enclosure size:
-
162x80x62mm
-
Installing:
-
Wall mounting
-
Standard:
-
AS/NZS 3947
Quick Details
-
Max. Voltage:
-
220-500V
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
SUPOWER, OEM
-
Model Number:
-
SIS
-
Max. Current:
-
20A to 63A
-
Pole:
-
1, 2, 3, 4Poles (optional)
-
Certificate:
-
SAA, CB, CE
-
Weatherproof:
-
IP66
-
Enclosure size:
-
162x80x62mm
-
Installing:
-
Wall mounting
-
Standard:
-
AS/NZS 3947

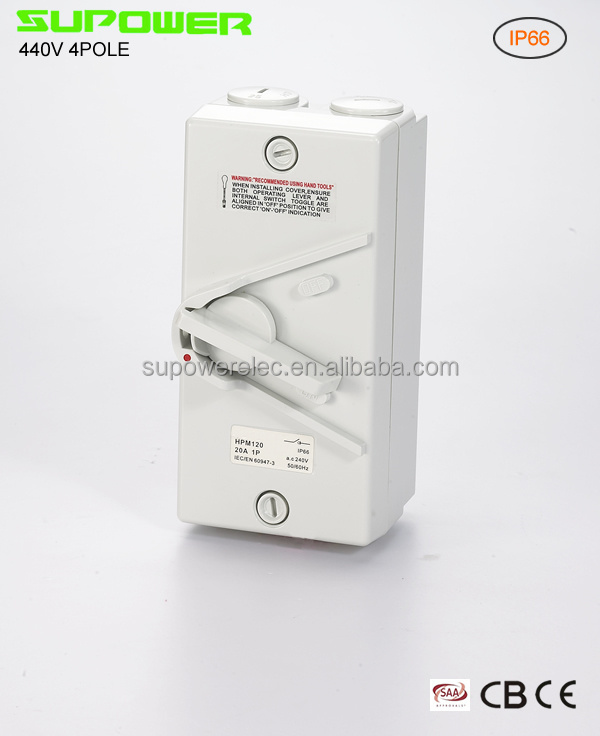

Australian standard Clipsal Electrical weatherproof Isolator Switch types
Using as weatherproof isolating switch with ON-OFF postion to control the motor and air-condition.
IP Protection can up to IP66.
Technical Parameter:
Conform to IEC60947-3, AS/NZS 3947
Rated Current: 20A, 35A, 45A, 63A
Rated Voltage: 220/500V
No. Of Pole: 1P, 2P, 3P, 4P
CE, CB, SAA Approved
Terminal Capacity:
25mm2 Rigid stranded cable
Conduit entry:
2 x 25mm cable entry top and bottom.
2 x 25mm conduit adaptors provided.
4 x 20mm, 2 x 25mm knockouts for rear cable entry.
|
Designation
|
Rating(AMP) | Item No. | IP Rating |
| Single Pole | 20A | SIS1-20 | IP66 |
| 32A | SIS1-32 | IP66 | |
| 45A | SIS1-45 | IP66 | |
| 63A | SIS1-63 | IP66 | |
| Double Pole | 20A | SIS2-20 | IP66 |
| 32A | SIS2-32 | IP66 | |
| 45A | SIS2-45 | IP66 | |
| 63A | SIS2-63 | IP66 | |
| Triple Pole | 20A | SIS3-20 | IP66 |
| 35A | SIS3-32 | IP66 | |
| 45A | SIS3-45 | IP66 | |
| 63A | SIS3-63 | IP66 | |
| Four Pole | 20A | SIS4-20 | IP66 |
| 32A | SIS4-32 | IP66 | |
| 45A | SIS4-45 | IP66 | |
| 63A | SIS4-63 | IP66 |
2 Years.
1. Sample Free, We are the manufacturer.
2. For all your inquires about us or our products, we will reply you in details within 24 hours.
3. We offer OEM services. Can print your own logo on product, can customise the retail box packing and other things.
4. We have very experienced Australia market.
